D205-541-047
D205-541-047
D205-541-047

Heli-Access-Step™ - LH


Part Number: D205-541-047

Aircraft Models: Bell - 205;Bell - 412

  • In stock

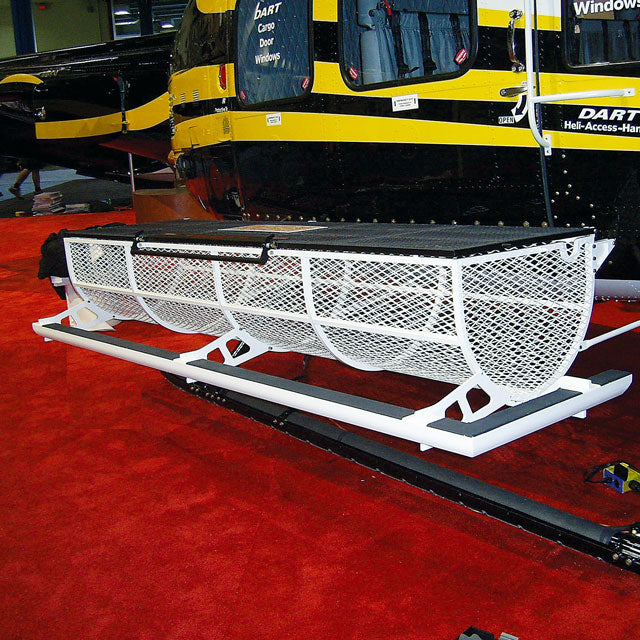

*Step wraps around the Fwd and outboard sides of the basket and feature a slip resistant surface. Installs on D205-541-043/-045 Baskets. Requires basket to be mounted at all hardpoints.

Key Features

N/A

Key Benefits

  • Slip resistant surface

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01242 205A/205A1/205B/212/214B/214B1/412/412EP Heli-Utility-Basket™
STC TCCA - Canada SH96-120 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Heli-Utility-Basket™
STC FAA - USA SR00696NY 205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Heli-Utility-Basket™

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Cannot use step in flight.

Installation Time

2 hrs

Dimensions And Weight

  • Length: 106" / 2.7m
  • Width: N/A
  • Weight Display: 14.00 lbs / 6.35 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
D205-541-047

Heli-Access-Step™ - LH
