Heli-Access-Handle™ LH

Part Number: D205-626-011
Aircraft Models: Bell - 205

Price:

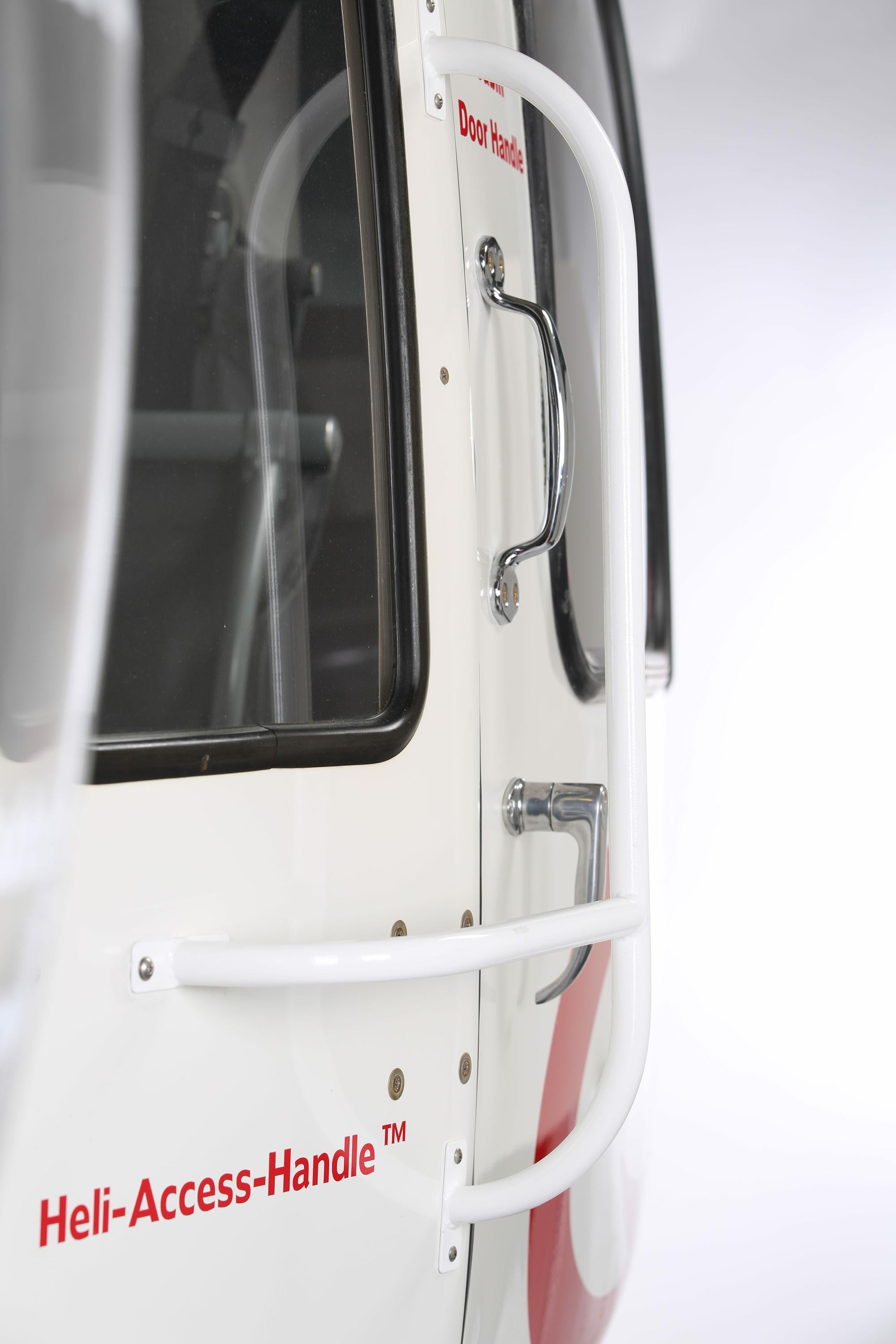

The DART Aerospace Heli-Access-Handle™ is constructed of stainless steel and mounts to the standard door or Spacedoor™ hinge-panel door to provide a secure hand hold for passengers exiting or entering the aircraft. DART Aerospace's Cabin Door Handle Kit mounts to the Aft sliding doors. The oversize handle is easy to grasp even with gloves on! The DART Aerospace V-Block mounts on the forward pilot/passenger doors and door frame. This kit provides a wedged socket that r... Read more
The DART Aerospace Heli-Access-Handle™ is constructed of stainless steel and mounts to the standard door or Spacedoor™ hinge-panel door to provide a secure hand hold for passengers exiting or entering the aircraft. DART Aerospace's Cabin Door Handle Kit mounts to the Aft sliding doors. The oversize handle is easy to grasp even with gloves on! The DART Aerospace V-Block mounts on the forward pilot/passenger doors and door frame. This kit provides a wedged socket that reduces vibration of the door in flight and prevents the bottom of the door from contacting the floor thereby significantly saving on hinge wear. *Ideal for ski operations, kit includes handle only. Compatible with Bell 205-031-423-005 /-157 aluminum hinge panel door. Read less

Description

The DART Aerospace Heli-Access-Handle™ is constructed of stainless steel and mounts to the standard door or Spacedoor™ hinge-panel door to provide a secure hand hold for passengers exiting or entering the aircraft. DART Aerospace's Cabin Door Handle Kit mounts to the Aft sliding doors. The oversize handle is easy to grasp even with gloves on! The DART Aerospace V-Block mounts on the forward pilot/passenger doors and door frame. This kit provides a wedged socket that reduces vibration of the door in flight and prevents the bottom of the door from contacting the floor thereby significantly saving on hinge wear. *Ideal for ski operations, kit includes handle only. Compatible with Bell 205-031-423-005 /-157 aluminum hinge panel door.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe RC 1174 205A1/212/214B/214B1/412 Heli-Access-Handle™ Installation
STC TCCA - Canada SH96-109 204B/205A/205A1/205B/212/214B/214B1/412 Heli-Access-Handle™ Installation
STC FAA - USA SR00549NY 205A/205A1/205B/212/412/412CF/412HP Heli-Access-Handle™ Installation

OEM Cross References

OEM Replacement / AAL-290-050-001
OEM Replacement / AAL-290-050-901

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1.30 lbs / 0.59 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
