H145 Heavy-Duty Full-Length Wearplate Kit, OEM Skidtube Compatible

Part Number: D145-1069-013
Aircraft Models: Airbus - EC145

Price:
OEM Wearplates and Wearpads are designed for durability under normal wear conditions, however, training and run-on landings present unique requirements for durability far in excess of normal operations. Even high gross weight landings in rocky or abrasive areas can prove damaging to skidtubes with lesser protection. DART Heavy Duty Wearplates are specially designed for the harsh use of utility work, training flights and run-on landings. DART Heavy Duty Wearplates, com... Read more

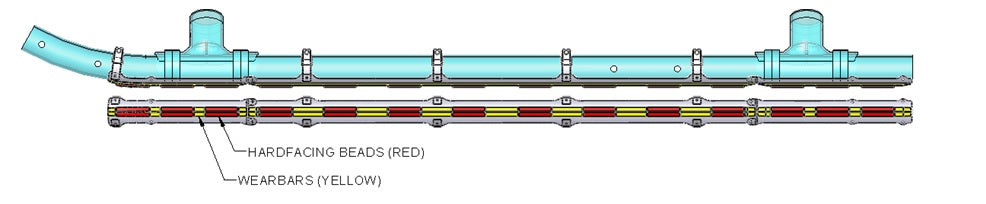

OEM Wearplates and Wearpads are designed for durability under normal wear conditions, however, training and run-on landings present unique requirements for durability far in excess of normal operations. Even high gross weight landings in rocky or abrasive areas can prove damaging to skidtubes with lesser protection. DART Heavy Duty Wearplates are specially designed for the harsh use of utility work, training flights and run-on landings. DART Heavy Duty Wearplates, compatible with OEM Skidtubes, installed using clamps and pick up a fastener on each saddle for easy installation or replacement but prevents rotation of the wearplate on the skidtube. DART Heavy Duty Wearplates are constructed of corrosion- resistant stainless steel and feature a full length stainless steel wear bar with areas of generously overlaid highly wear resistant tungsten carbide. Installed with a corrosion- resistant compound between the skidtube and wearplate (prevents the need for gaskets or sealant. *Compatible on OEM skidtubes for H145/EC145T2/BK117D-2 only (see -011 for earlier variants). Includes 2 sets of stainless steel wearplates with heavy-duty tungsten carbide welds, and associated hardware. Price is per aircraft. Read less

Description

OEM Wearplates and Wearpads are designed for durability under normal wear conditions, however, training and run-on landings present unique requirements for durability far in excess of normal operations. Even high gross weight landings in rocky or abrasive areas can prove damaging to skidtubes with lesser protection. DART Heavy Duty Wearplates are specially designed for the harsh use of utility work, training flights and run-on landings. DART Heavy Duty Wearplates, compatible with OEM Skidtubes, installed using clamps and pick up a fastener on each saddle for easy installation or replacement but prevents rotation of the wearplate on the skidtube. DART Heavy Duty Wearplates are constructed of corrosion- resistant stainless steel and feature a full length stainless steel wear bar with areas of generously overlaid highly wear resistant tungsten carbide. Installed with a corrosion- resistant compound between the skidtube and wearplate (prevents the need for gaskets or sealant. *Compatible on OEM skidtubes for H145/EC145T2/BK117D-2 only (see -011 for earlier variants). Includes 2 sets of stainless steel wearplates with heavy-duty tungsten carbide welds, and associated hardware. Price is per aircraft.

Key Features

  • Includes Segmented RH and LH Full-Length Wearplates
  • Compatible on OEM skidtubes only
  • Stainless steel construction with tungsten carbide welds
  • Full length protection of skidtube
  • Ships with stainless steel installation clamps
  • Picks up existing fasteners to prevent rotation

Key Benefits

  • Greatly improved wear resistance
  • No modification to OEM skidtube required
  • Quick installation with clamps
  • Installs without messy sealant
  • Ideal for training operations or harsh/rocky landing environments

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02676SE EC145(BK117C2)/EC145T2 Installation of Heavy Duty Wearplates
STC EASA - Europe 10072908 EC145(BK117C2)/EC145T2 Installation of Heavy Duty Wearplates

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

OEM H145/EC145T2/BK117D-2 skidtubes

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 36.4 lbs / 16.5 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
