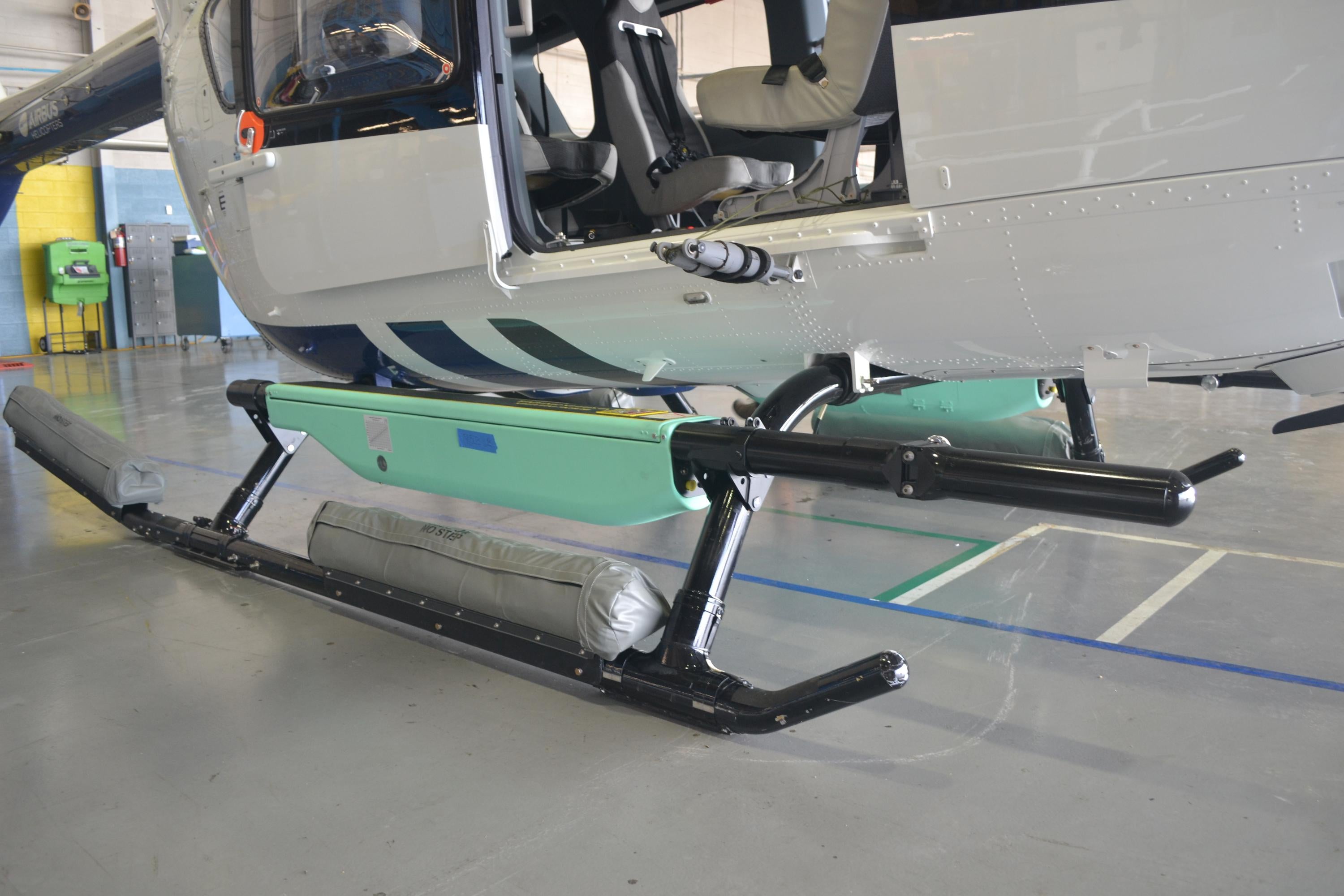

H145 External Liferaft System (ELRS)

Mission Equipment
Part Number: 651.1501
Aircraft Models: Airbus - EC145

Price:
The liferaft pod assemblies are comprised of an carbon-composite pod, an 8-man reversible liferaft and an aluminum passenger step extension. Designed with twin tube construction, a canopy, a survival kit and a fabric cover and meets all applicable ETSO-2C505 & TS0-C70a and EASA OPS requirements. *Replaces OEM steps. Available in single sided configuration as well. Searchlight compatible version available.

Description

The liferaft pod assemblies are comprised of an carbon-composite pod, an 8-man reversible liferaft and an aluminum passenger step extension. Designed with twin tube construction, a canopy, a survival kit and a fabric cover and meets all applicable ETSO-2C505 & TS0-C70a and EASA OPS requirements. *Replaces OEM steps. Available in single sided configuration as well. Searchlight compatible version available.

Key Features

  • LH/RH step assemblies with integrated liferaft (replaces OEM steps)
  • Includes two 8-Man (12 man overload) liferafts
  • Fully reversible liferafts with survival kits
  • Compliant with ETSO-2C505 & TSO-C70a requirements and EASA OPS 3.830
  • Includes activation system and reservoirs
  • Lightweight urethane-coated fabric
  • Compatible with hoist and cargo hook
  • Corrosion resistant reservoir, stainless steel hoses, fittings & valves
  • Liferaft includes boarding ramps and lightweight canopy
  • Designed with multi air-holding chambers
  • Ability to accommodate customer supplied ELT

Key Benefits

  • Increased safety with Integrated liferafts vs. in-cabin liferafts
  • Saves cabin space vs. in-cabin liferafts
  • Worldwide R&O support
  • Exchange program available
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02517SE EC145(BK117C2)/EC145T2 Installation of external liferaft system
STC EASA - Europe 10060624 EC145(BK117C2)/EC145T2 Installation of External Life Raft System (ELRS)

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 189.24 lbs / 85.84 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
