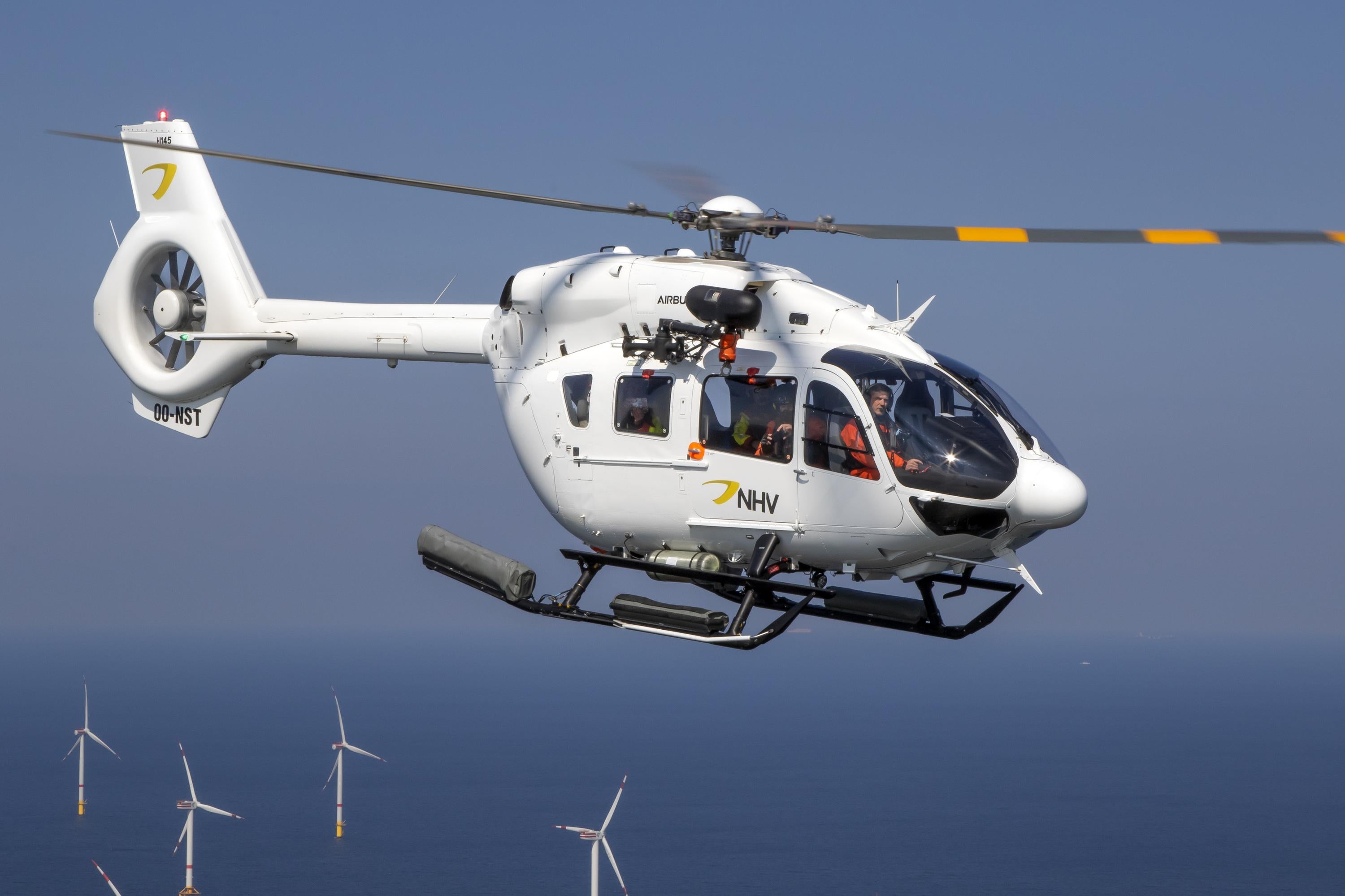

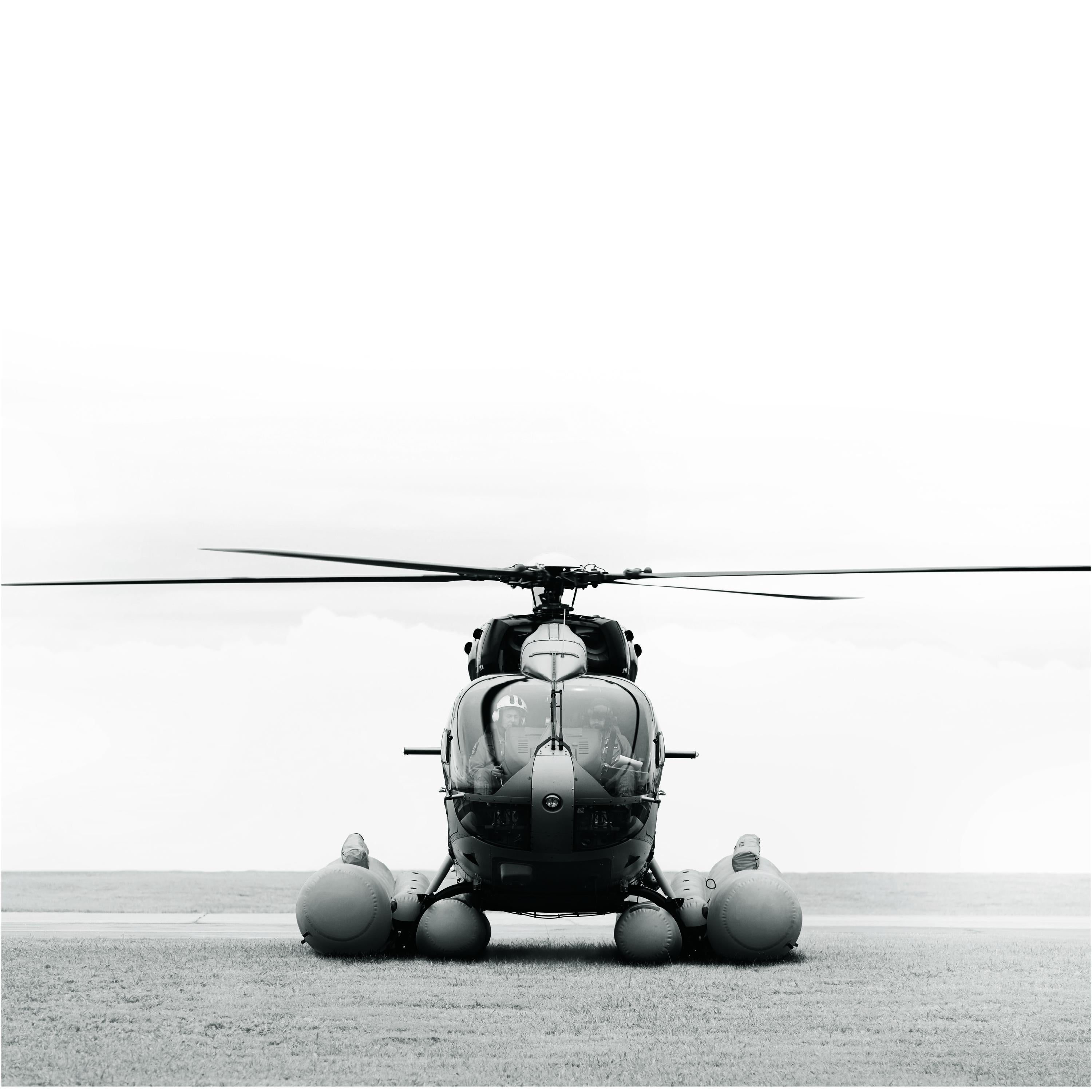

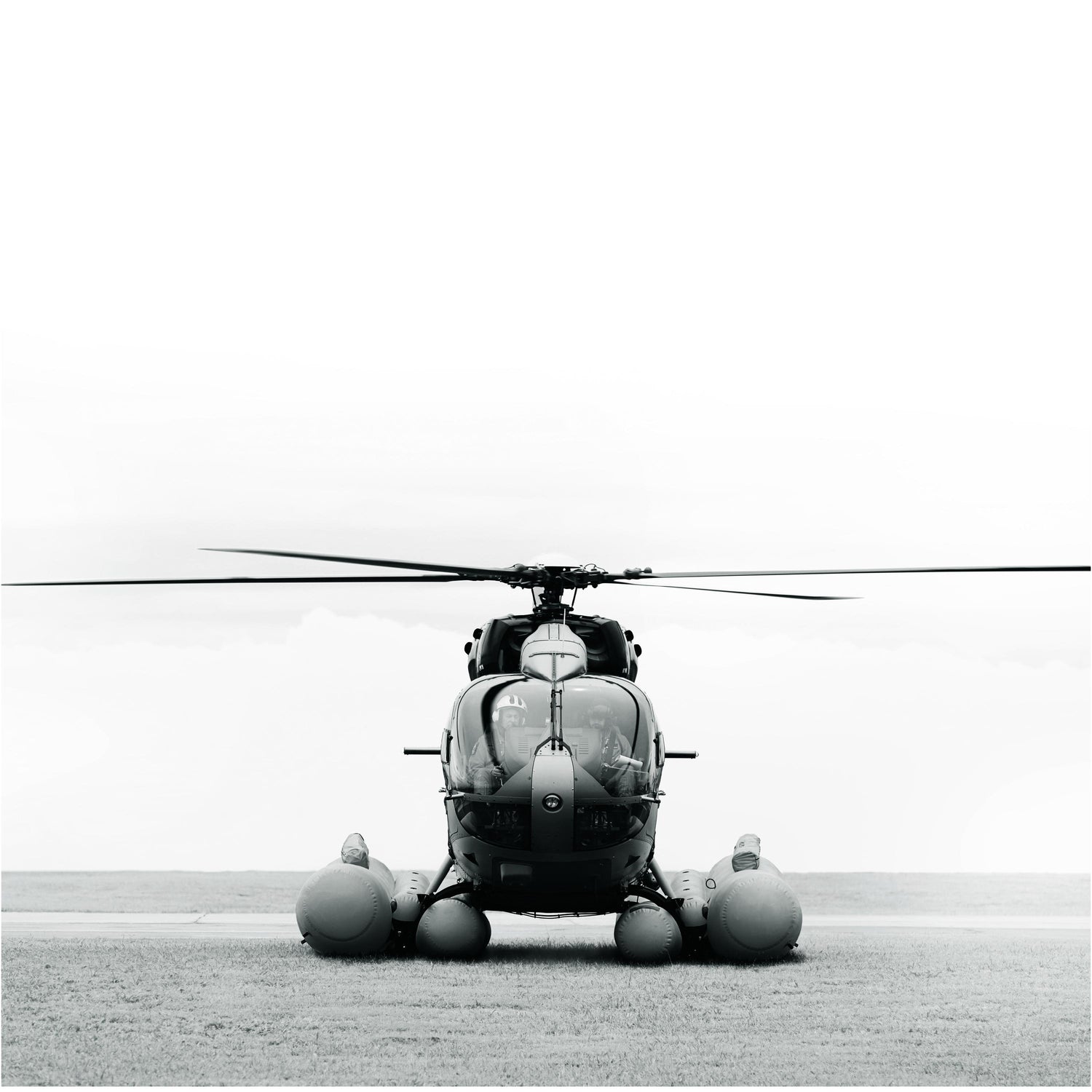

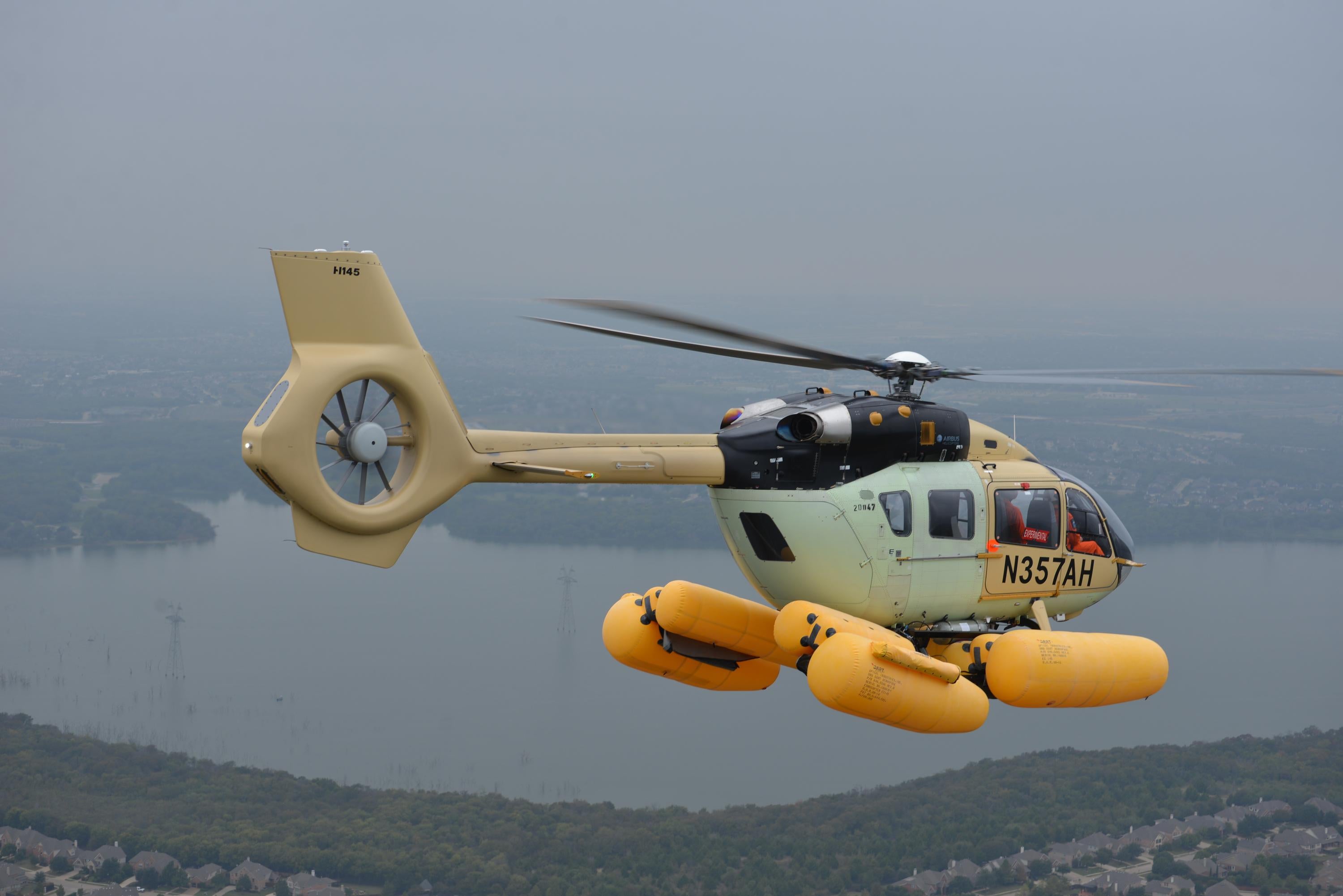

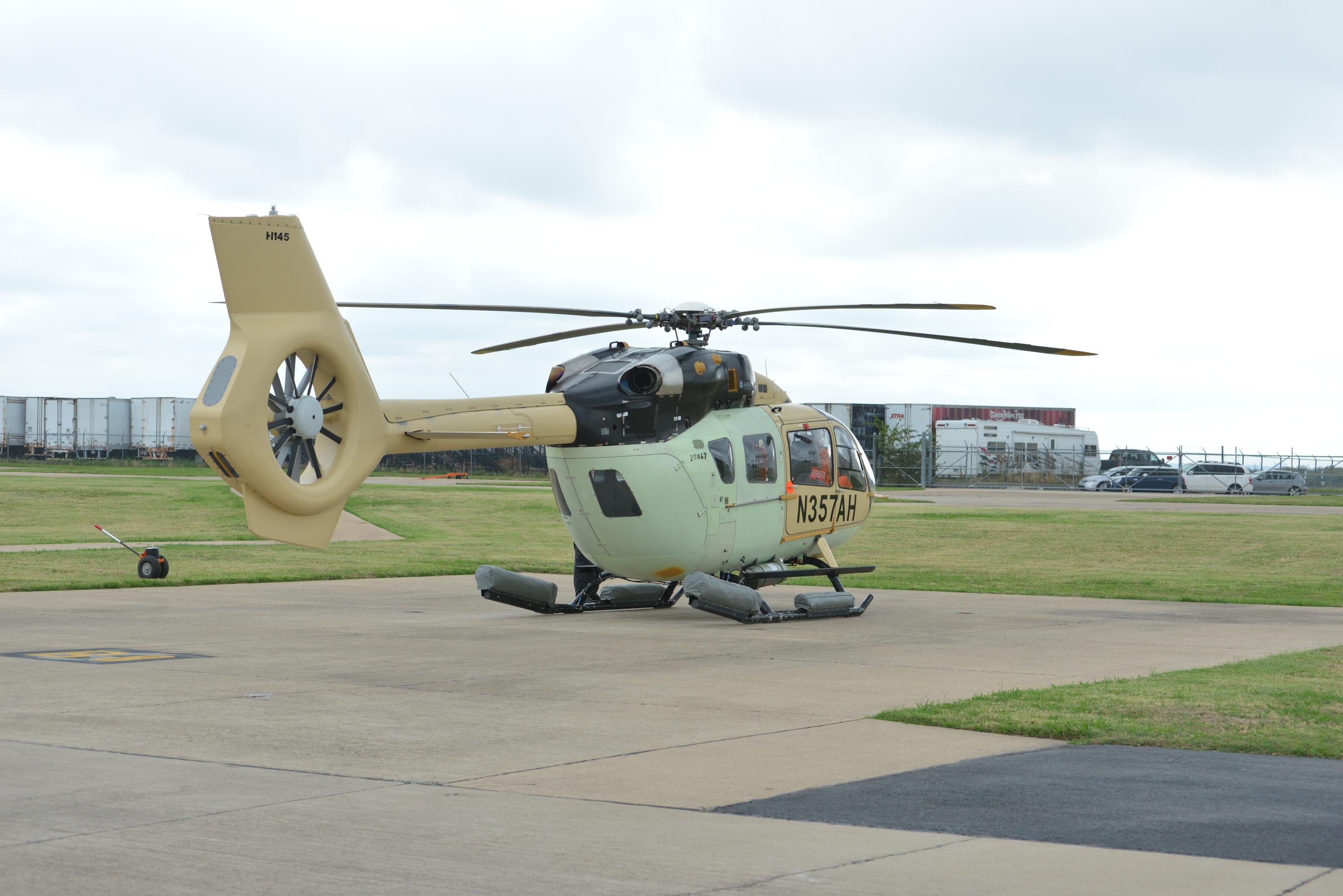

H145 Emergency Float System with Integrated Liferafts


Part Number: 651.3432

Aircraft Models: Airbus - EC145

  • In stock
DART Aerospace's patented Tri Bag emergency flotation system with integrated liferaft available for the H145 and certified for stability in sea state 6. System includes 4 tri bag floats for improved stability, integrated liferaft for ease of access and weight savings. *Complete system including: reservoir, float bags and covers, necessary wiring and plumbing and 2 integrated liferafts. Contact sales for purchasing options (hoist compatibility, auto inflation, fixed and/or removable provisions, valve cover, skid extensions).

Key Features

  • Certified to sea state 6
  • Approved for ditching and emergency landings
  • Includes 2 integrated liferafts compliant with ETSO-2C505 & TSO-C70b requirements
  • Inspections at 18 months (instead of 12)
  • All valves are field replaceable
  • Available with: automatic inflation, LH or RH hoist compatibility, skid extensions and valve covers

Key Benefits

  • Improved stability due to Tri-bag float design
  • Integrated liferafts for superior survivability after emergency water landings with 2 externally mounted liferafts
  • Weight and cabin space savings with integrated liferaft
  • 45% lighter than other external liferaft options
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH20-13 EC145(BK117C2)/EC145T2 Certification for ditching when equipped with Emergency Flotation Kits
STC EASA - Europe 10075402 EC145(BK117C2)/EC145T2 Certification for ditching when equipped with Emergency Flotation
STC IAC AR - Russia FATA-STC030227 EC145(BK117C2)/EC145T2 Installation of Emergency Float Kits
STC EASA - Europe 10028171 Rev. 1 EC145(BK117C2)/EC145T2 Emergency Float System
STC ANAC - Argentina ANAC CTS 0912.22 (A) BK117C2(EC145) Emergency Float System
STC TCCA - Canada LoA RDIMS-5318169 EC145(BK117C2)/EC145T2 Emergency Float System
STC FAA - USA SR02244LA EC145(BK117C2)/EC145T2 Emergency Float System
STC DGCA - Mexico IA-162/2012 rev 1 EC145(BK117C2)/EC145T2 Instalacion de Kits de Flotadores de Emergencia

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Max. Airspeed of Inflation: 80 KIAS Max. Airspeed with Floats Inflated: 80 KIAS

Installation Time

120 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 209.3 lbs / 94.9 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
