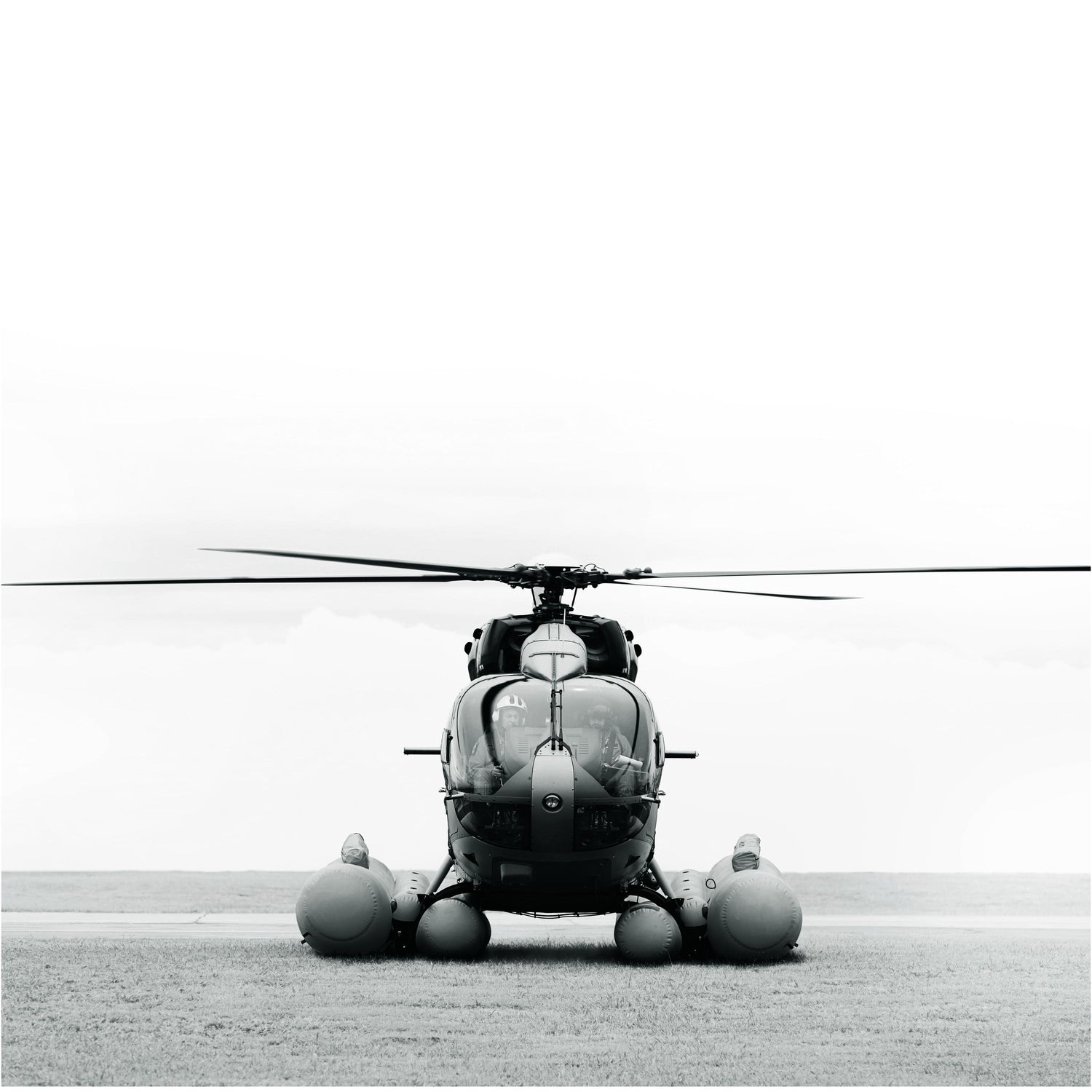

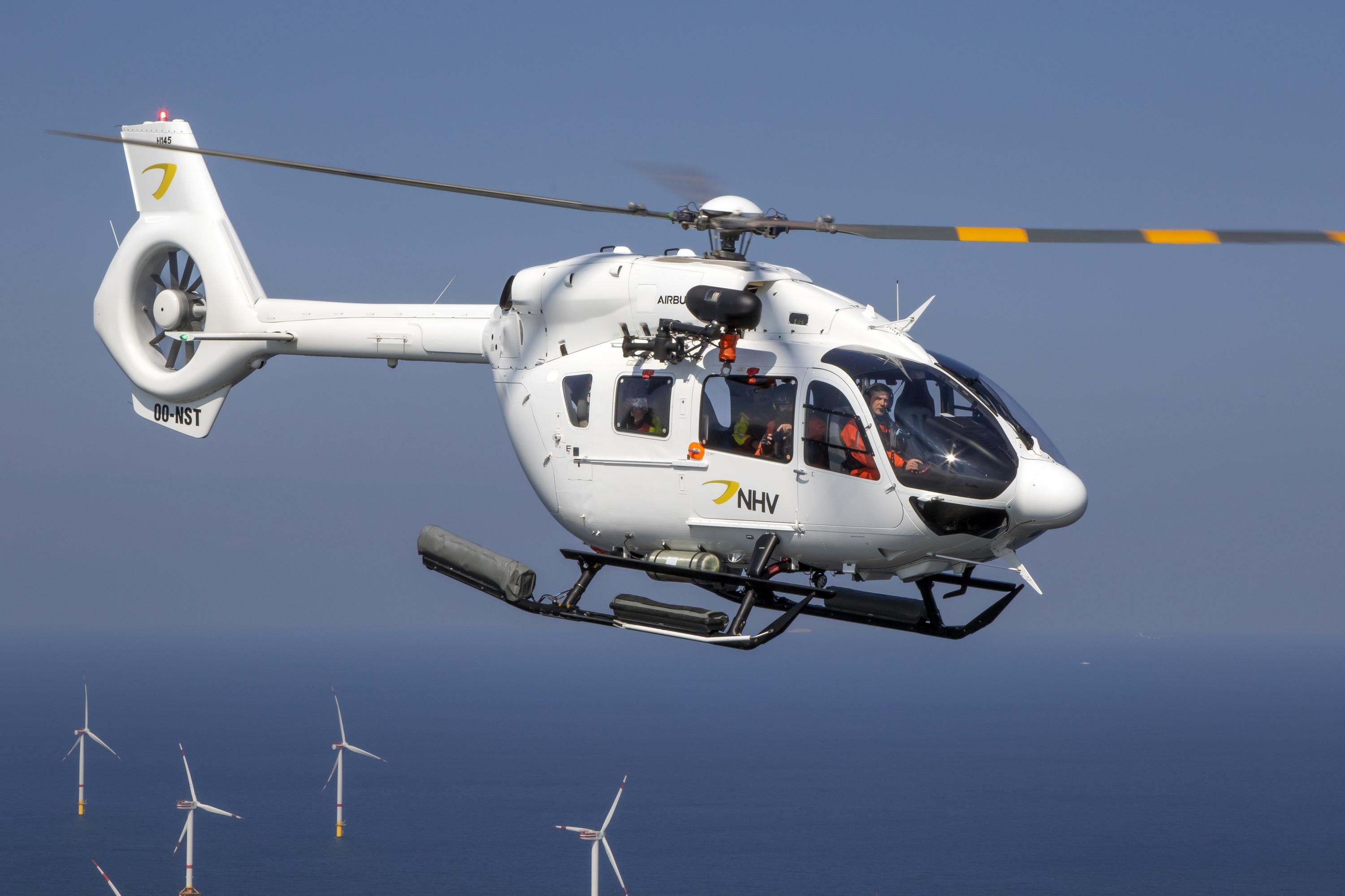

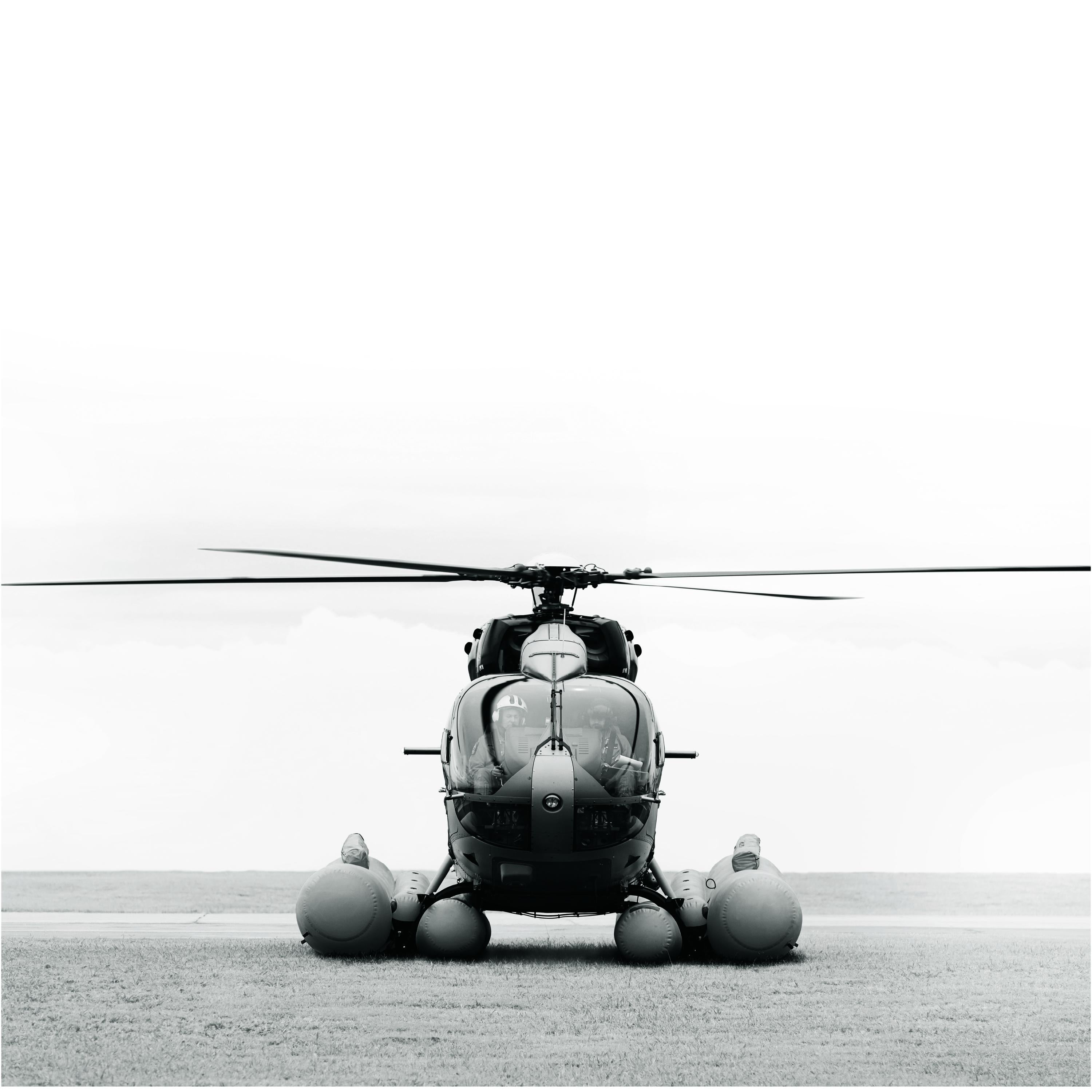

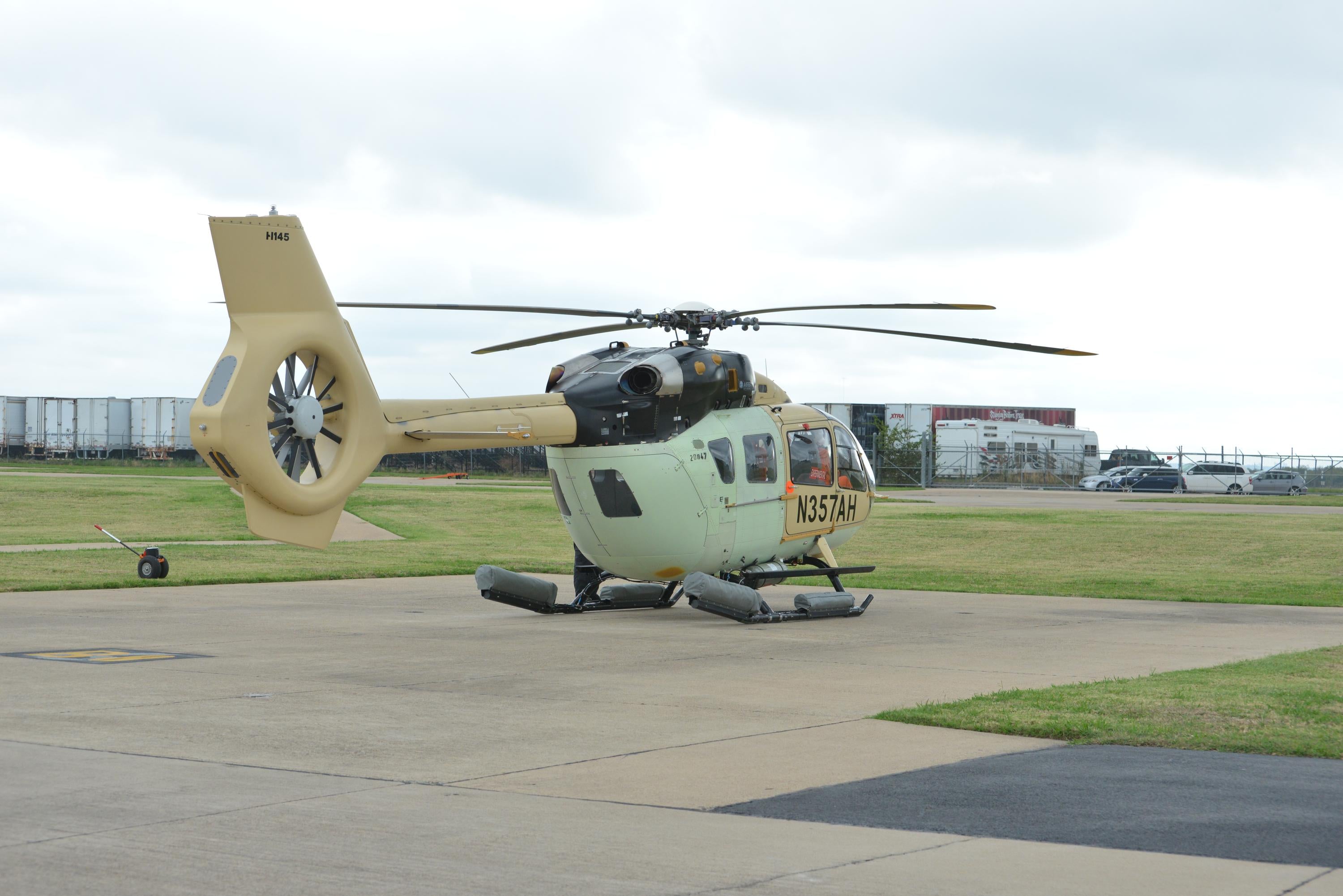

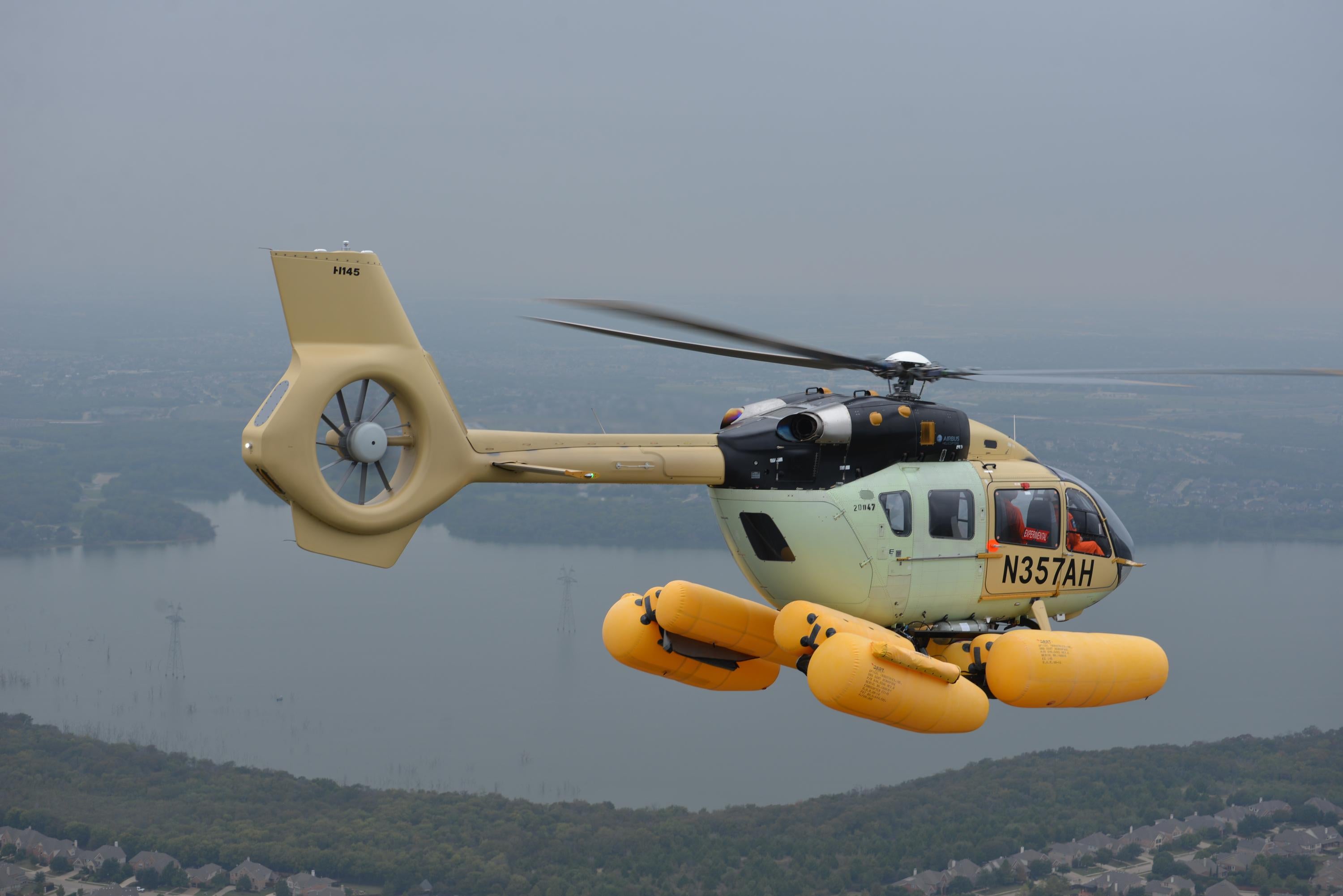

H145 Emergency Float System

Part Number: 651.3402
Aircraft Models: Airbus - EC145

Price:
DART Aerospace's patented Tri Bag emergency flotation system available with integrated liferaft available for the H145 and certified for stability in sea state 6. System includes 4 tri bag floats for improved stability. *Complete system including: reservoir, float bags and covers, necessary wiring and plumbing. Contact sales for purchasing options (hoist compatibility, auto inflation, fixed and/or removable provisions, valve cover, skid extensions).

Description

DART Aerospace's patented Tri Bag emergency flotation system available with integrated liferaft available for the H145 and certified for stability in sea state 6. System includes 4 tri bag floats for improved stability. *Complete system including: reservoir, float bags and covers, necessary wiring and plumbing. Contact sales for purchasing options (hoist compatibility, auto inflation, fixed and/or removable provisions, valve cover, skid extensions).

Key Features

  • Certified to sea state 6
  • Approved for ditching and emergency landings
  • Inspections at 18 months (instead of 12)
  • All valves are field replaceable
  • Available with: automatic inflation, LH or RH hoist compatibility, skid extensions and valve covers

Key Benefits

  • Improved stability due to Tri-bag float design
  • Available with integrated liferafts for superior survivability after emergency water landings and weight & cabin space savings
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH20-13 EC145(BK117C2)/EC145T2 Certification for ditching when equipped with Emergency Flotation Kits
STC EASA - Europe 10075402 EC145(BK117C2)/EC145T2 Certification for ditching when equipped with Emergency Flotation
STC IAC AR - Russia FATA-STC030227 EC145(BK117C2)/EC145T2 Installation of Emergency Float Kits
STC EASA - Europe 10028171 Rev. 1 EC145(BK117C2)/EC145T2 Emergency Float System
STC ANAC - Argentina ANAC CTS 0912.22 (A) BK117C2(EC145) Emergency Float System
STC TCCA - Canada LoA RDIMS-5318169 EC145(BK117C2)/EC145T2 Emergency Float System
STC FAA - USA SR02244LA EC145(BK117C2)/EC145T2 Emergency Float System
STC DGCA - Mexico IA-162/2012 rev 1 EC145(BK117C2)/EC145T2 Instalacion de Kits de Flotadores de Emergencia

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Max. Airspeed of Inflation: 80 KIAS Max. Airspeed with Floats Inflated: 80 KIAS

Installation Time

40 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 126.1 lbs / 57.2 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
