Description

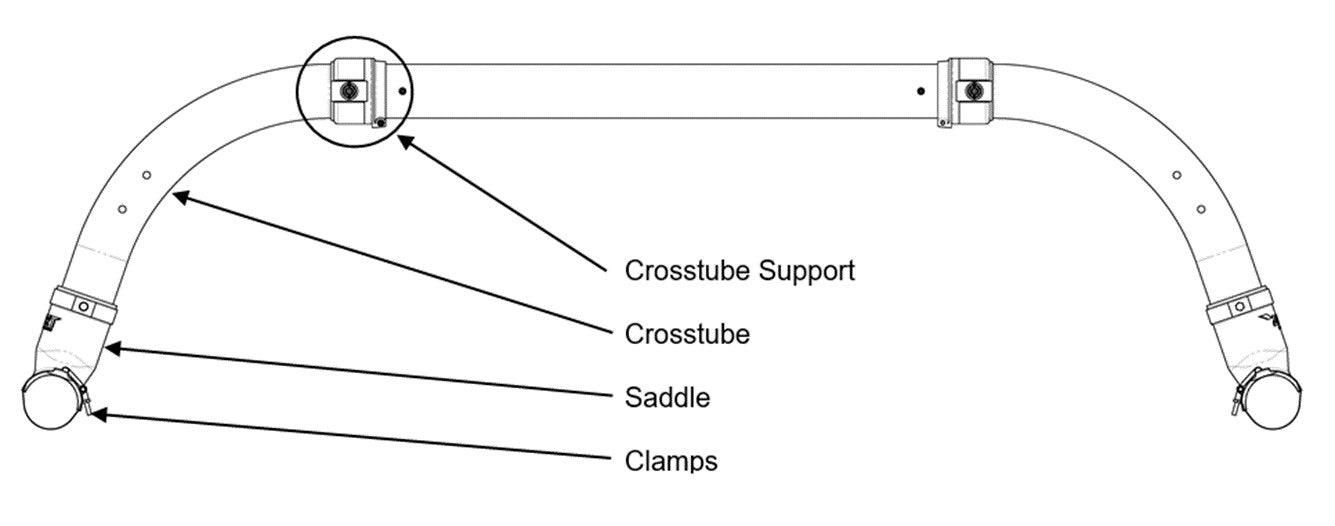

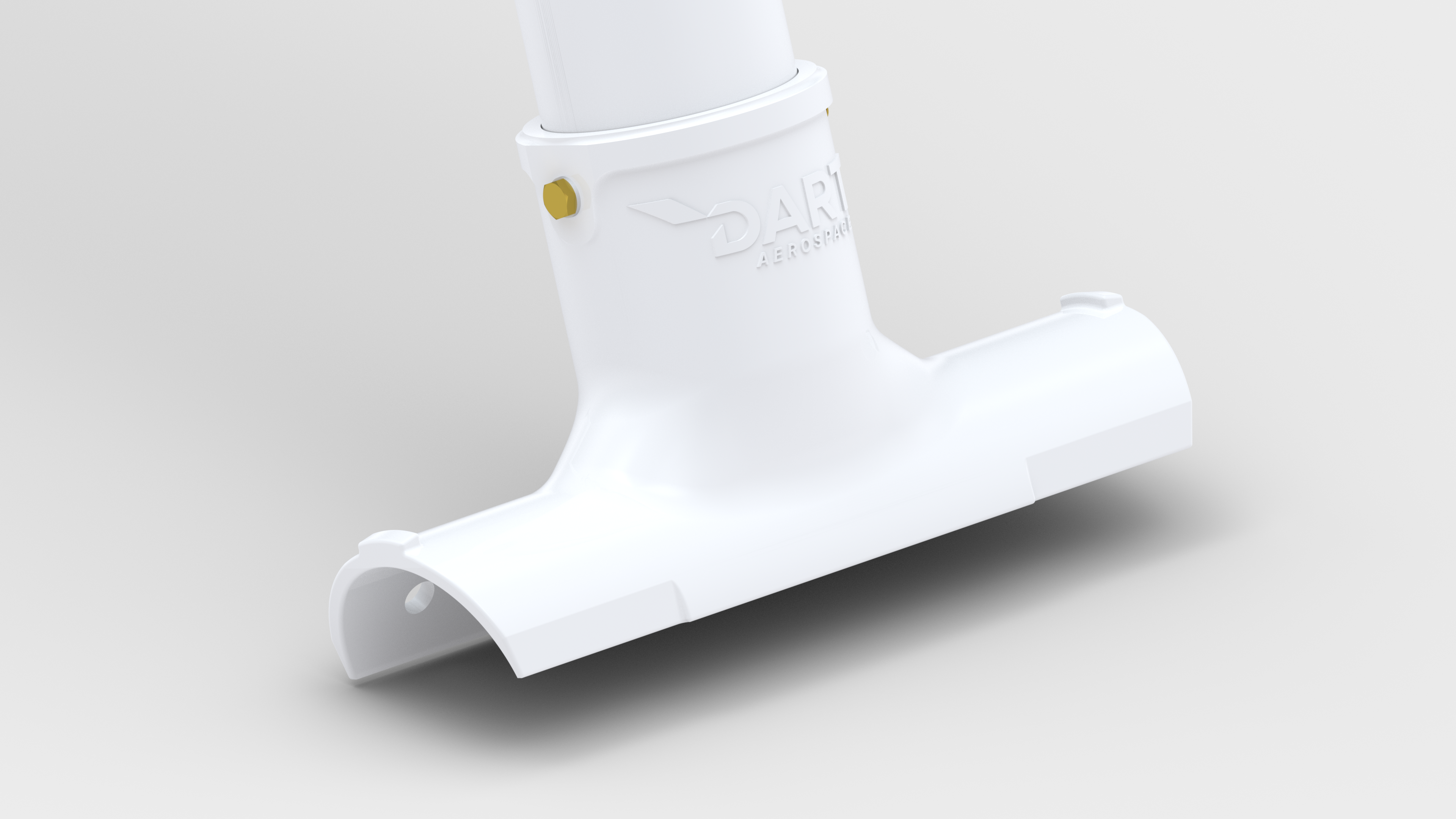

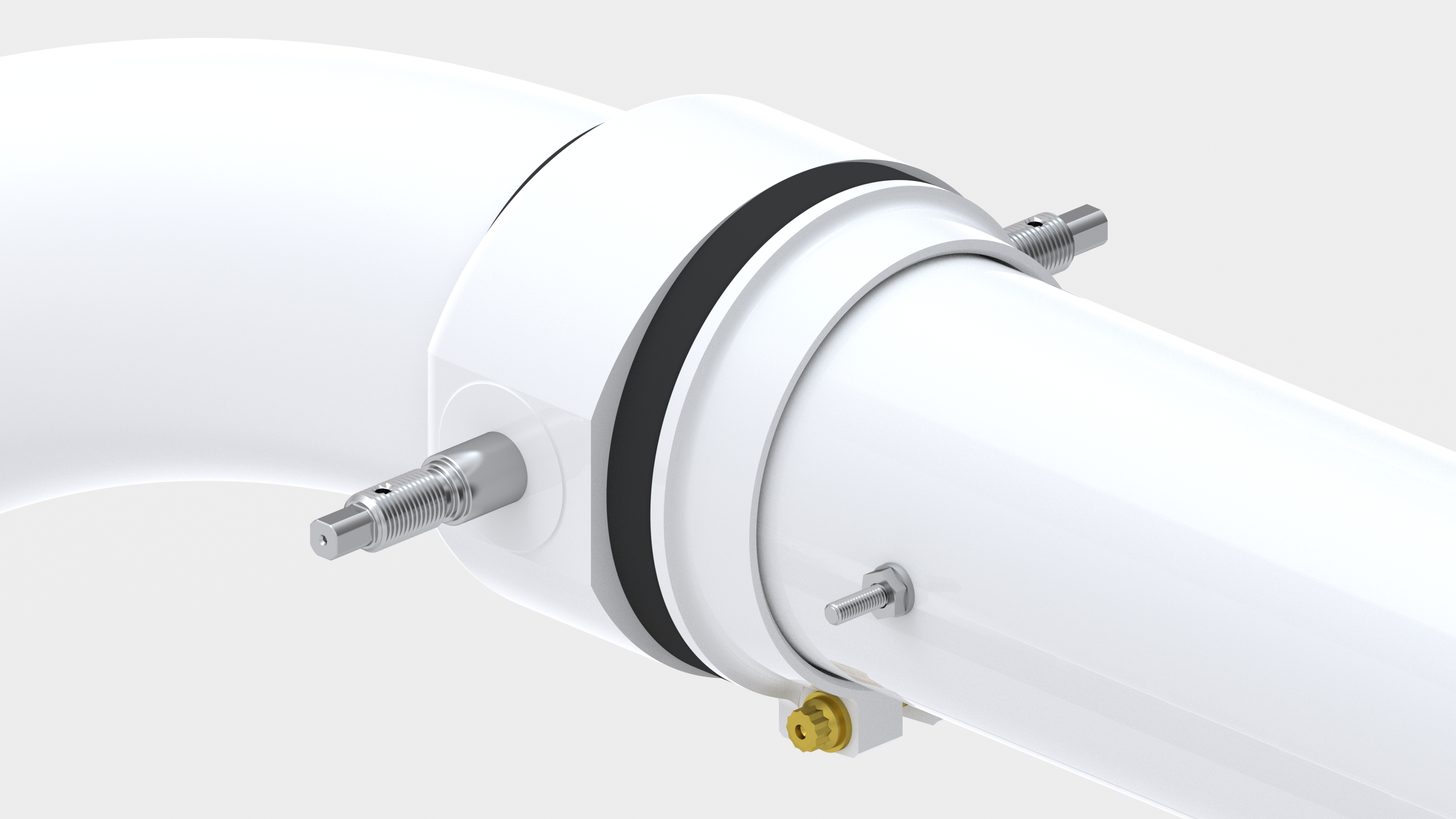

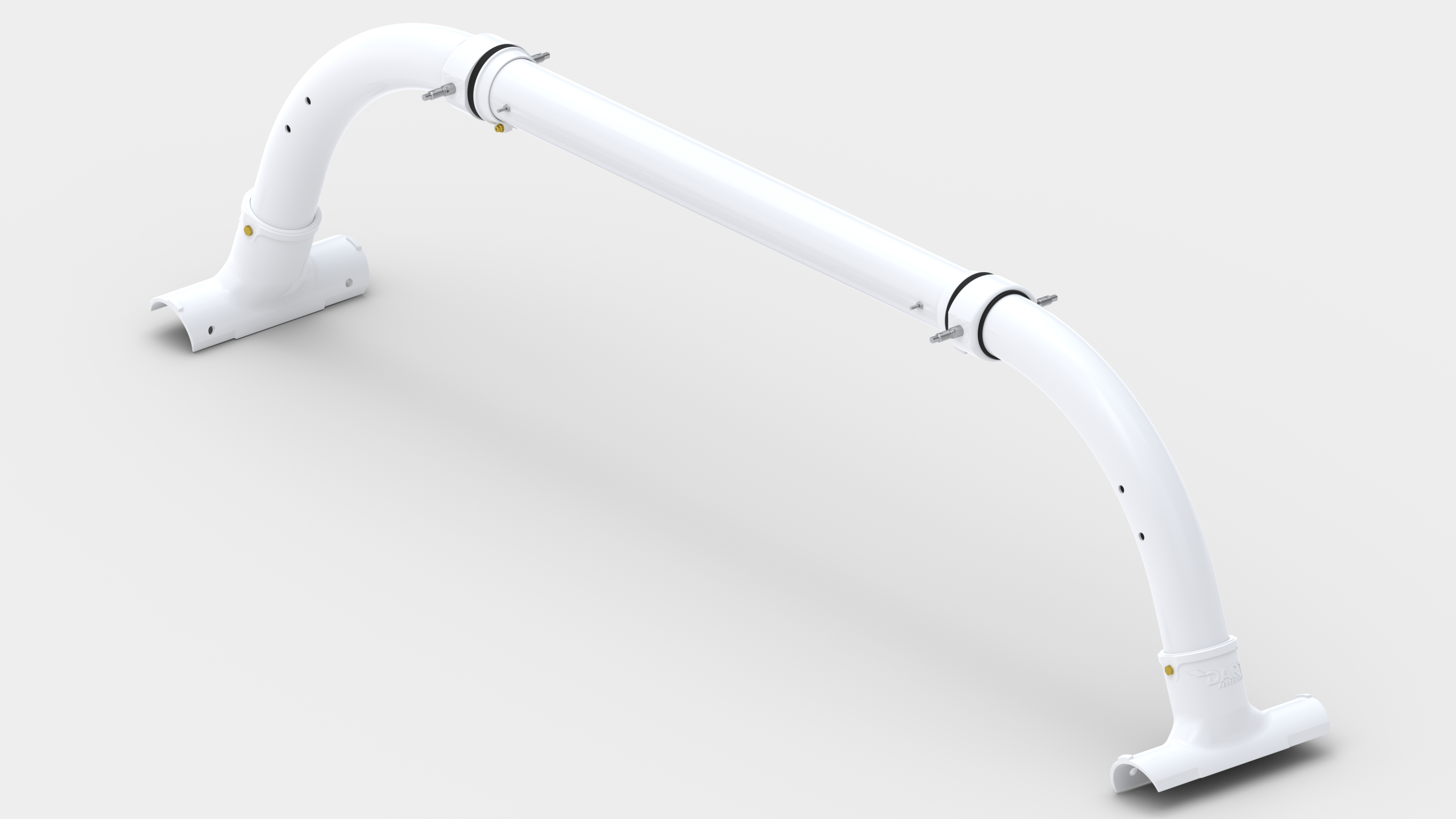

Count on DART Aerospace Crosstubes for durability, compatibility and corrosion resistance. We currently offer replacement Standard and Mid-Height Gear Crosstubes for Airbus H135/EC135 model helicopters. Our Crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using OEM-style saddles with clamps. Our Crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on supports which come factory pre-installed for ease of replacement. All our Crosstubes come out of the box painted white and ready to install on your helicopter. DART crosstubes are not life-limited; they are to be replaced on-condition.
Key Features
- Saddles & clamps included
- Hardware to install cross tubes to aircraft and skid tubes included
- Supports factory installed
- Tube made of high strength aluminum alloy
- Protected with high performance anti-corrosion primer
- Out-of-the-box painted white
- Crosstubes can be replaced as a set or on an individual basis
- Crosstubes Assy w/o Saddles also available
Key Benefits
- Direct OEM Replacement
- Compatible with DART & OEM Skidtubes
- Compatible with OEM Steps
- Corrosion resistant
- Easy to install
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - Mexico | IA-633/2019 | EC135/EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ | Installation of Crosstubes |
| STC | FAA - USA | SR04276NY | EC135/EC135P1/EC135P2/EC135P2+/EC135P3/EC135T1/EC135T2/EC135T2+/EC135T3 | Installation of Crosstubes |
| STC | TCCA - Canada | SH18-49 | EC135/EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ | Installation of Crosstubes |
| STC | EASA - Europe | 10068097 | EC135/EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ | Installation of Crosstubes |
