H135/EC135 - FWD Crosstube - Std Low

Part Number: D135-1027-141
Aircraft Models: Airbus - EC135

Price:
Login to see prices

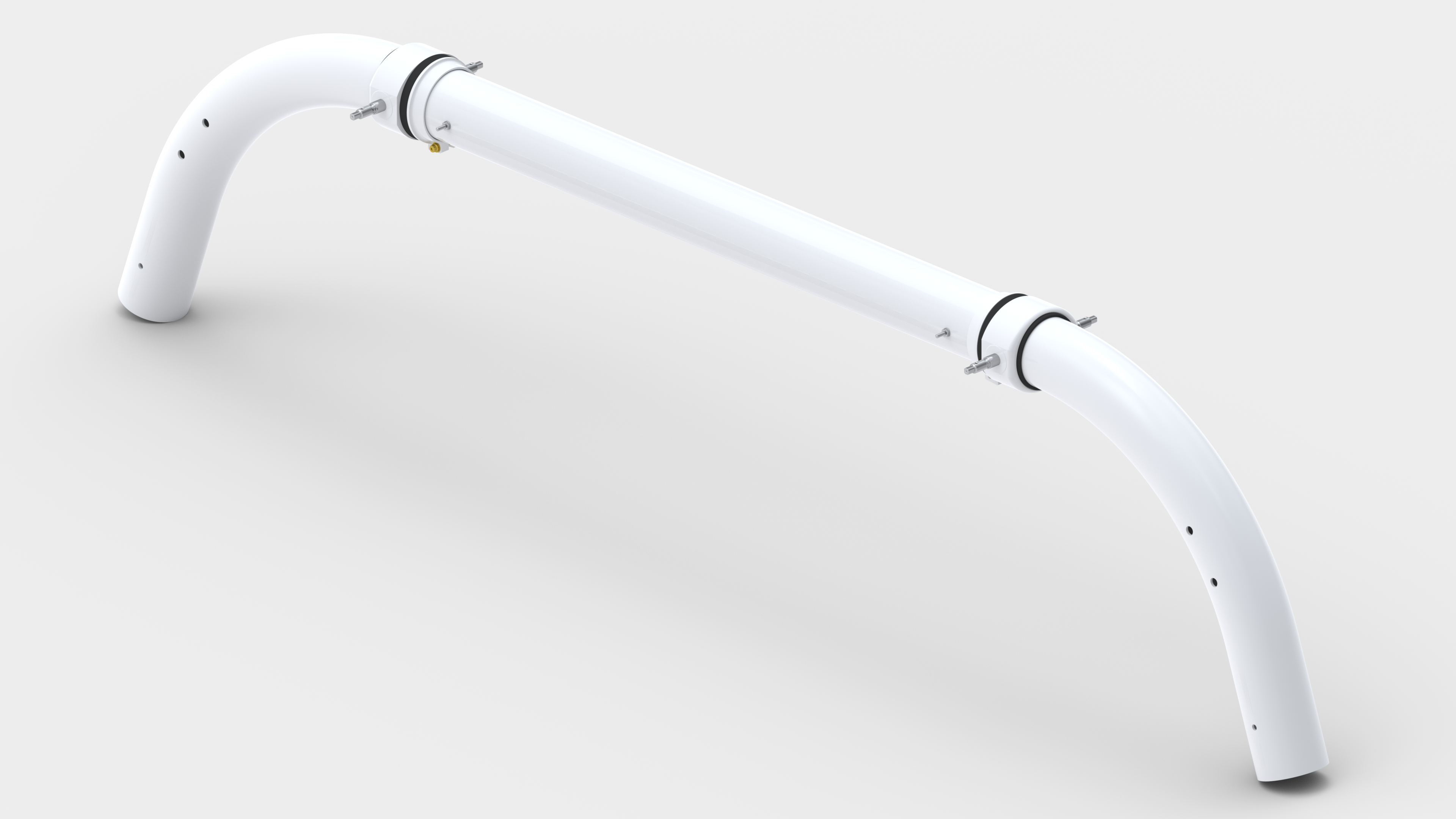

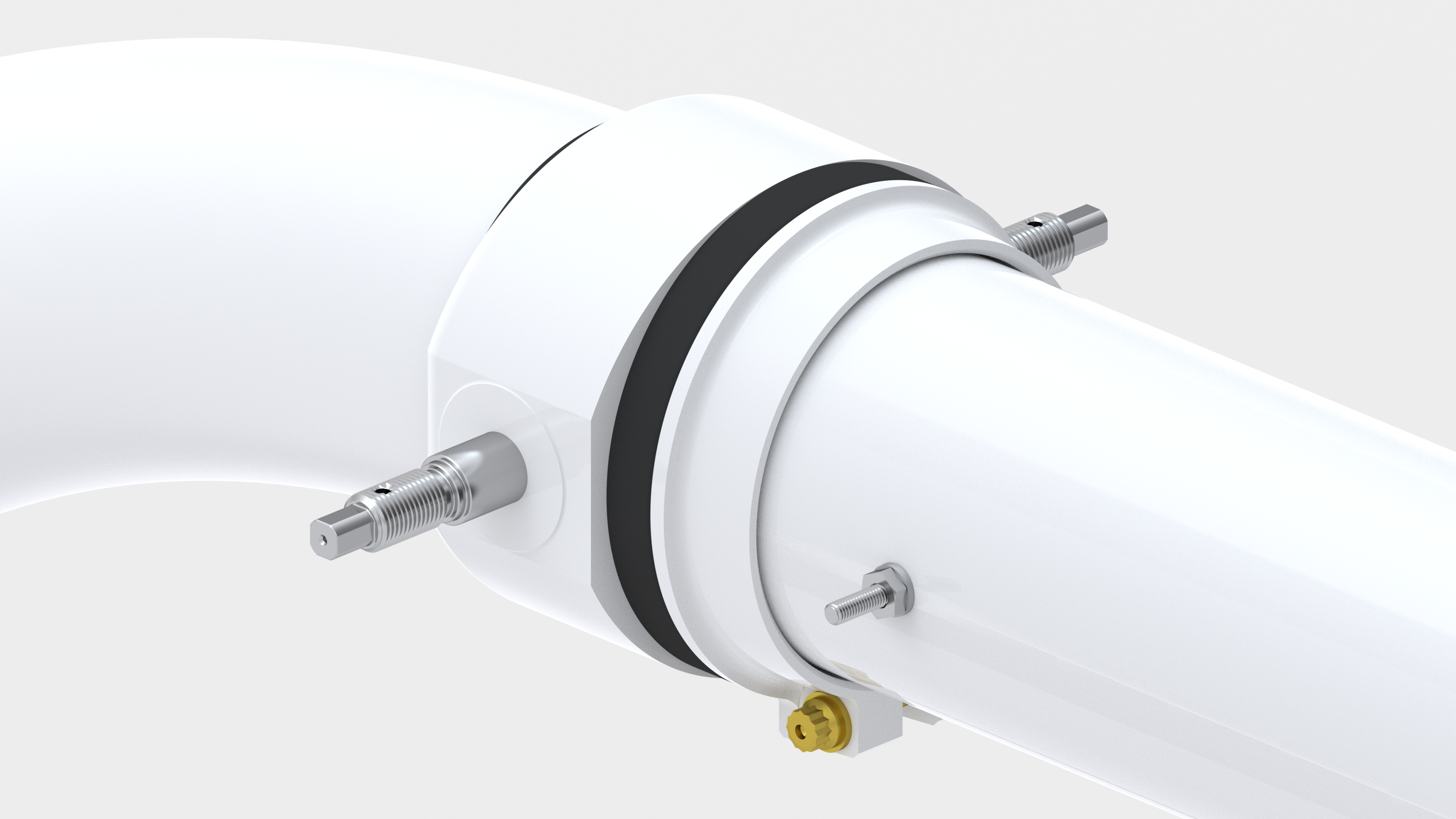

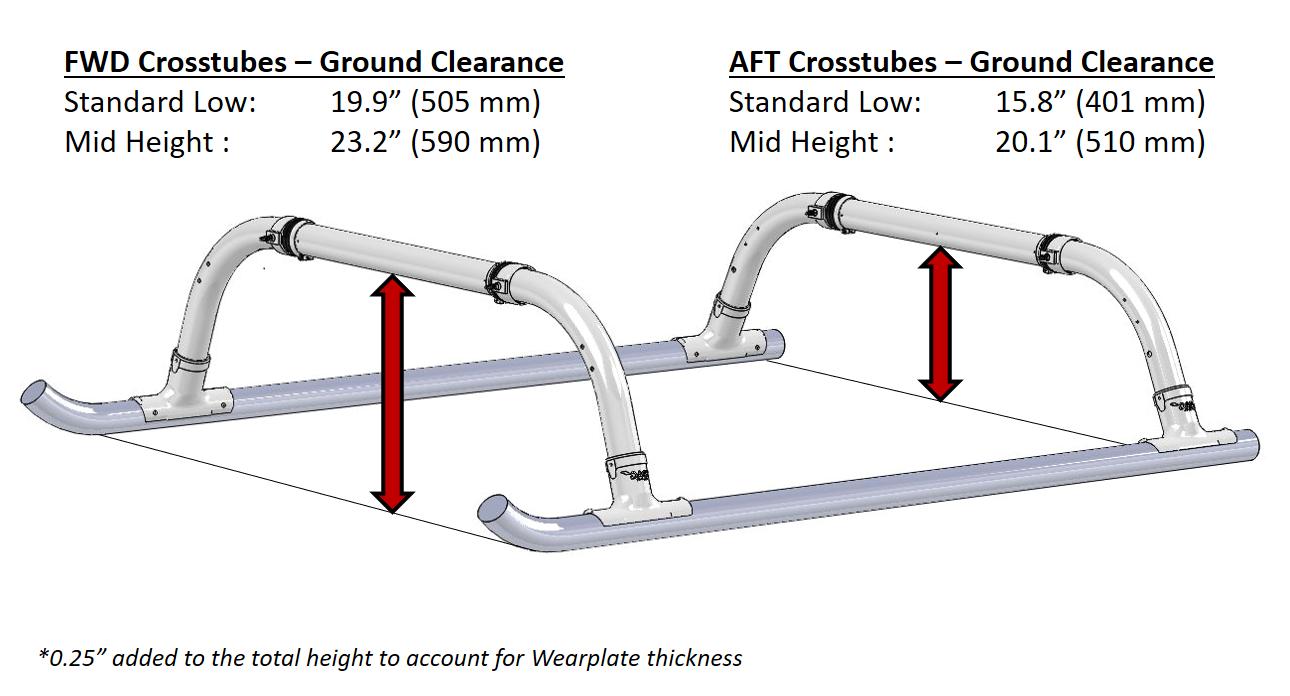

We currently offer replacement Standard and Mid-Height Gear Crosstubes for Airbus H135/EC135 model helicopters. Our Crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using OEM-style saddles with clamps. Our Crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on supports which come factory pre-installed for ease of replacement. All our Crosstubes come ... Read more
We currently offer replacement Standard and Mid-Height Gear Crosstubes for Airbus H135/EC135 model helicopters. Our Crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using OEM-style saddles with clamps. Our Crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on supports which come factory pre-installed for ease of replacement. All our Crosstubes come out of the box painted white and ready to install on your helicopter. DART crosstubes are not life-limited; they are to be replaced on-condition. Sub-assembly of D135-1027-101 to offer replacement parts without saddles and clamps and hardware. Read less

Description

We currently offer replacement Standard and Mid-Height Gear Crosstubes for Airbus H135/EC135 model helicopters. Our Crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using OEM-style saddles with clamps. Our Crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on supports which come factory pre-installed for ease of replacement. All our Crosstubes come out of the box painted white and ready to install on your helicopter. DART crosstubes are not life-limited; they are to be replaced on-condition. Sub-assembly of D135-1027-101 to offer replacement parts without saddles and clamps and hardware.

Key Features

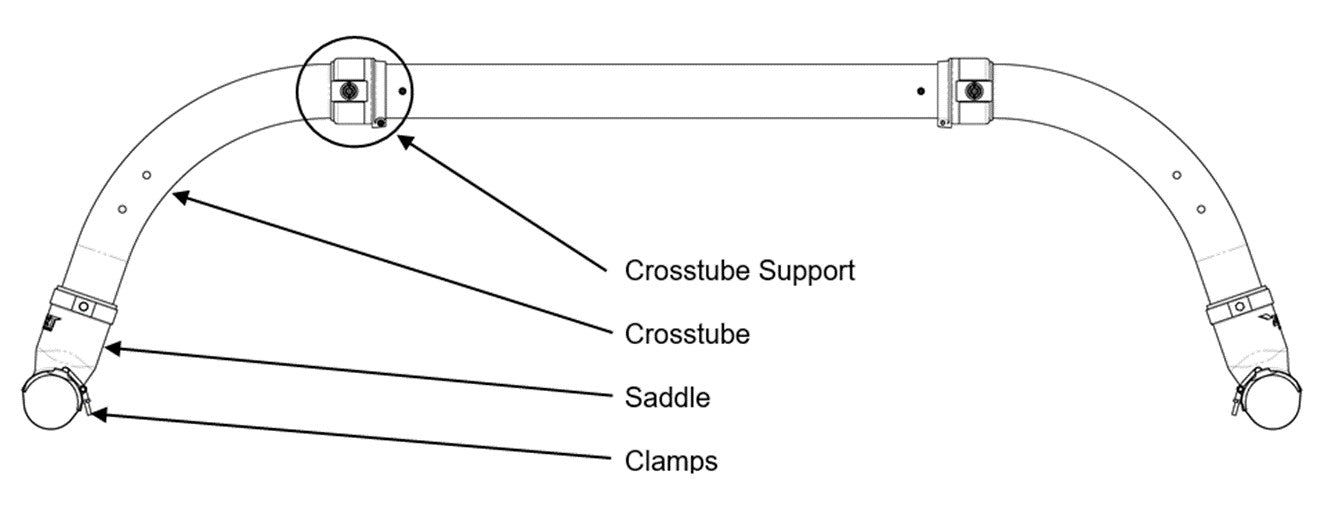

  • Tube and supports included - Saddles & clamps & supports not included
  • Tube made of high strength aluminum alloy
  • Protected with high performance anti-corrosion primer
  • Crosstubes can be replaced as a set or on an individual basis

Key Benefits

  • Direct OEM Replacement
  • Compatible with DART & OEM Saddles
  • Compatible with DART & OEM Skidtubes
  • Compatible with OEM Steps
  • Corrosion resistant
  • Easy to install

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-633/2019 EC135/EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Installation of Crosstubes
STC FAA - USA SR04276NY EC135/EC135P1/EC135P2/EC135P2+/EC135P3/EC135T1/EC135T2/EC135T2+/EC135T3 Installation of Crosstubes
STC TCCA - Canada SH18-49 EC135/EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Installation of Crosstubes
STC EASA - Europe 10068097 EC135/EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Installation of Crosstubes

OEM Cross References

OEM Replacement / L321M1003103
OEM Replacement / L321M1003102
OEM Replacement / L321M1812966
OEM Replacement / L321M1003104

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 16.9 lb / 7.7 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
