Description

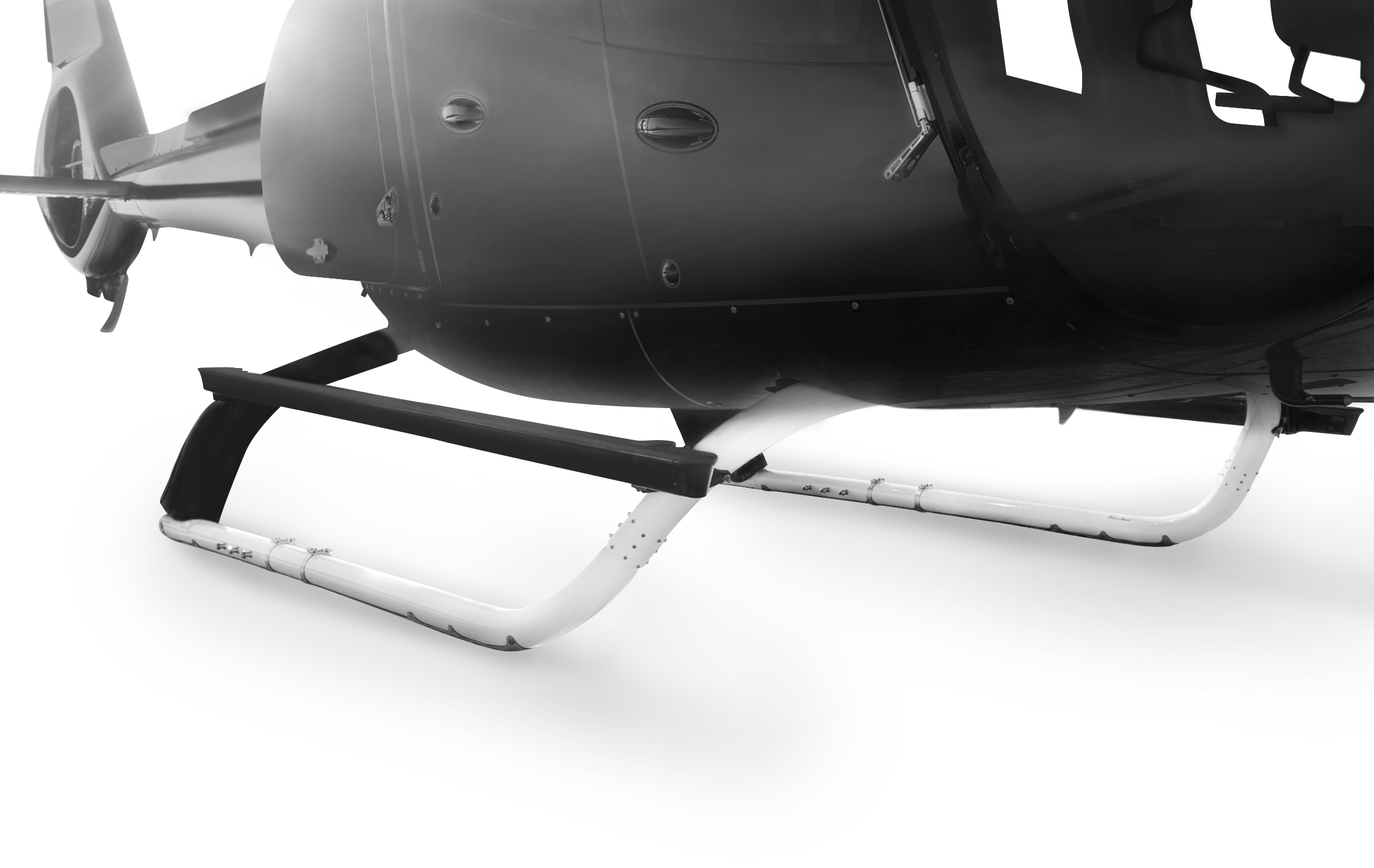

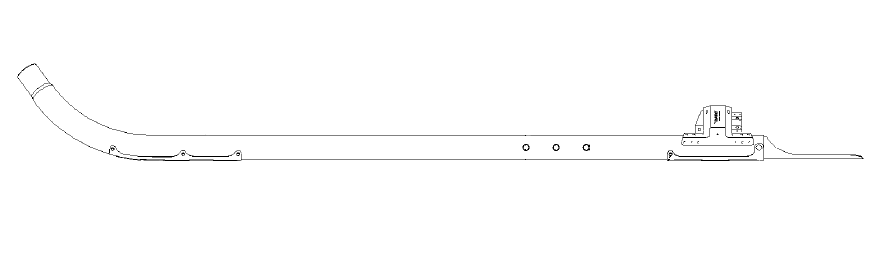

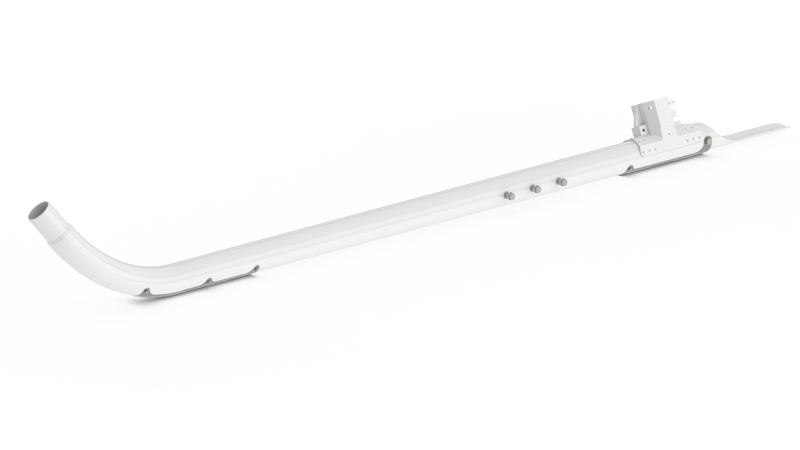

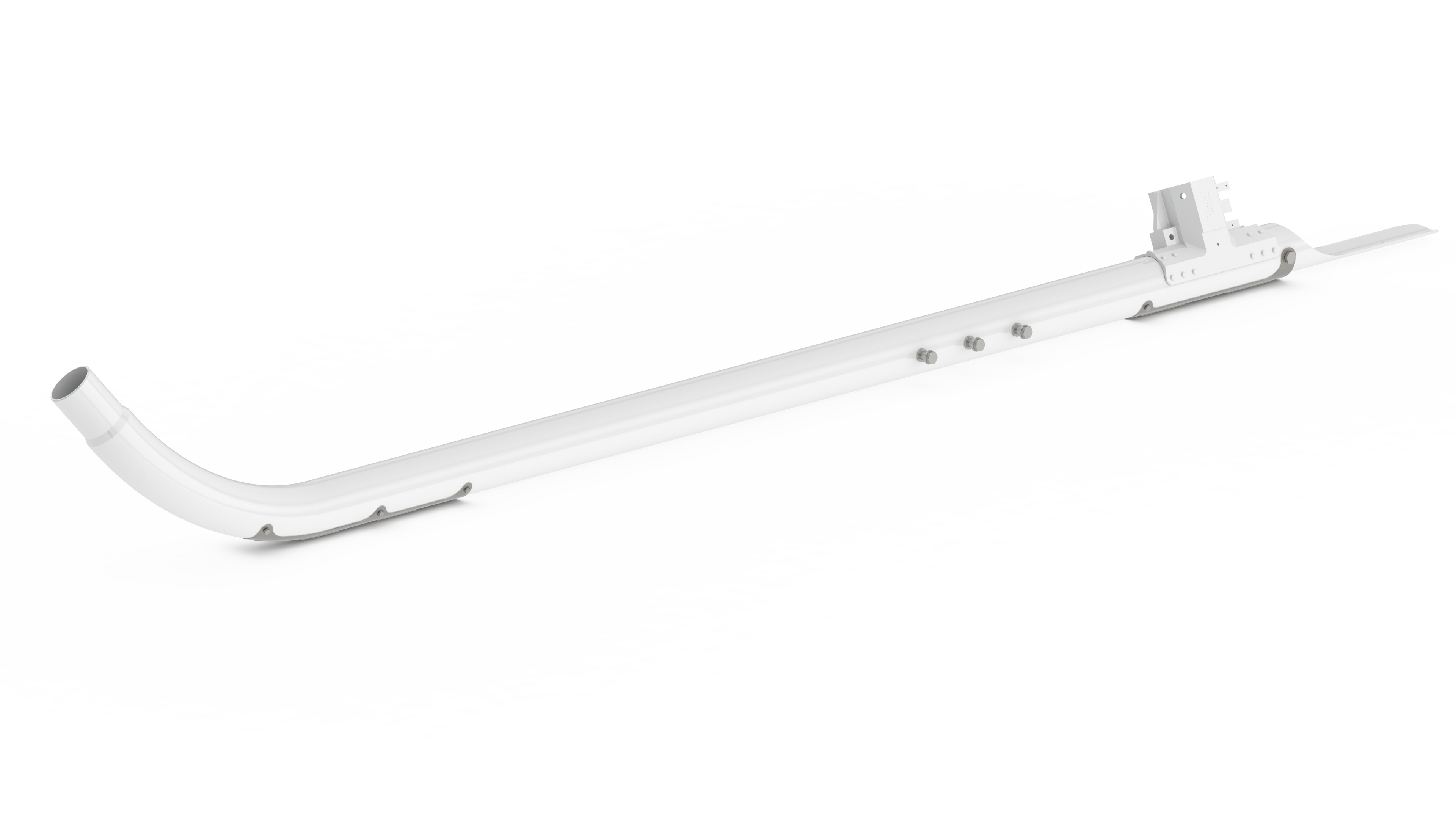

DART's EC130 Skidtubes are a direct replacement to OEM parts. These Standard Skidtubes are also compatible with Flotation Systems since they don't require specific provisions. DART offers Basic OEM Wearplates and exclusive Full-Length Standard Wearplates for additional protection. Other exclusive features include the Heavy-Duty Blade (Stinger) improved design made of Stainless Steel to prevent bending issues related to landing touch points. Exclusive Wearplates and Heavy-Duty Stinger can also be retrofitted on OEM Skidtubes.
Key Features
- Tube made of high strength Aluminum alloy
- Equipped with Basic OEM Wearplates protection and Basic Blade (Stinger) made of Aluminum

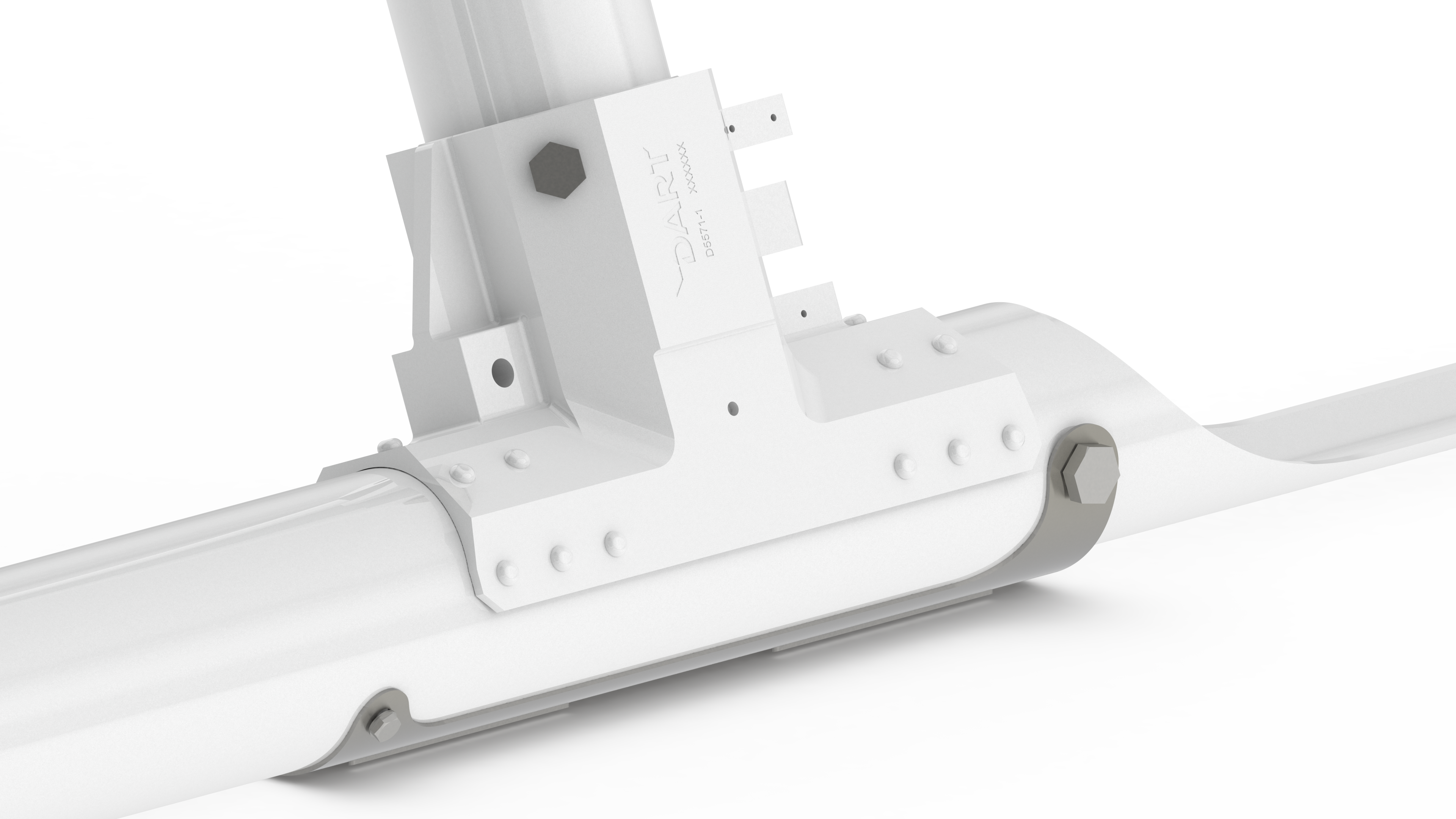

- Saddle, Wearplates, Blade (Stinger) and Ground Handling Lugs factory installed
- Out-of-the-box painted white
- Transfer drill rivet holes at FWD Crosstubes joint for ease of installation
- Skidtubes can be replaced as a set or on an individual basis
Key Benefits
- Direct OEM Replacement
- Weight neutral vs. OEM part

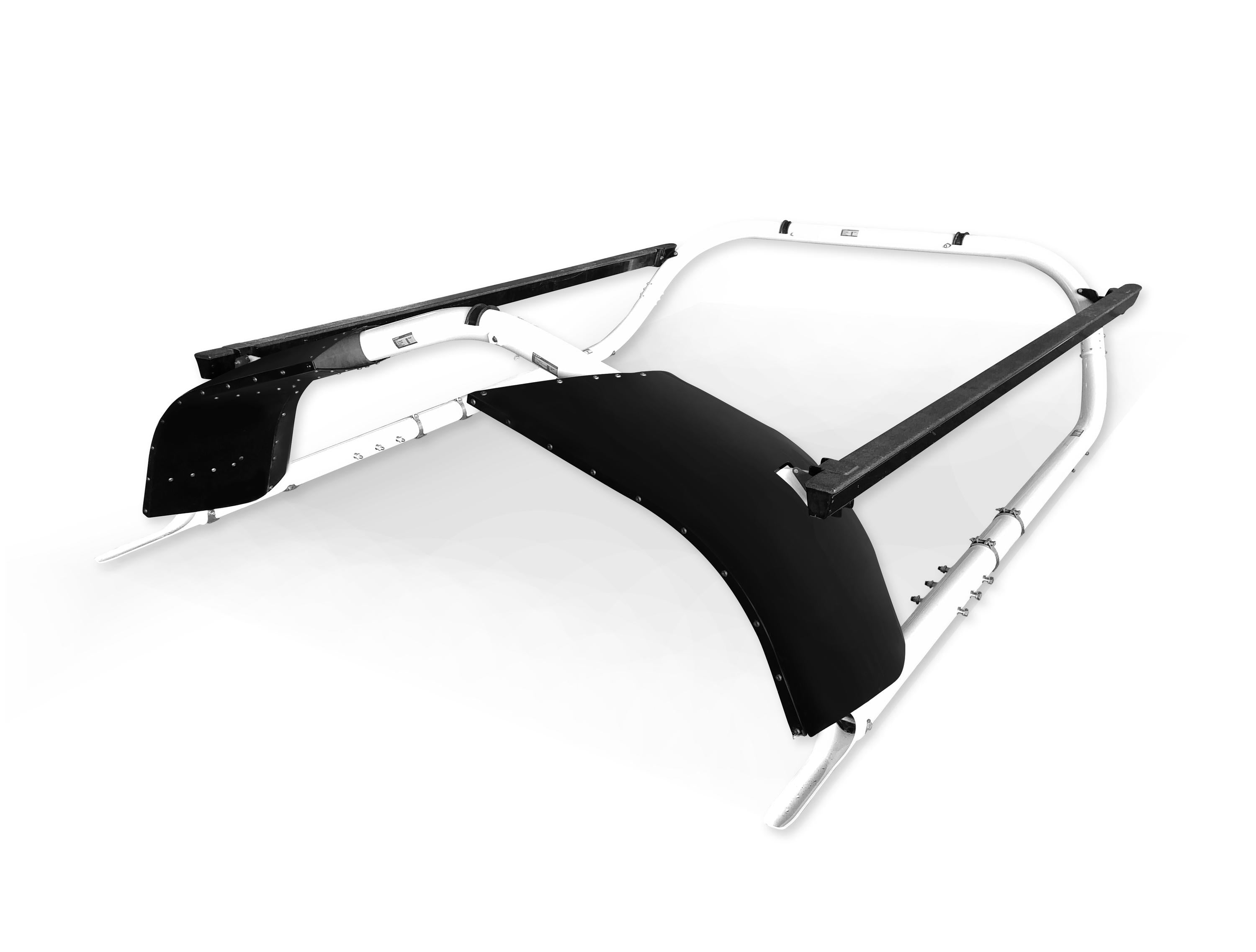

- Compatible with DART & OEM Crosstubes
- Compatible with DART & OEM Flotation
- Compatible with OEM Ground Handling Wheel
- Improved alloy provides superior corrosion and cracking resistance especially at riveted FWD joint
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH19-4 | EC130B4/EC130T2 | Installation of Landing Gear Kits |
| STC | FAA - USA | SR04320NY | EC130/EC130B4/EC130T2 | Installation of Landing Gear kits |
| STC | EASA - Europe | 10070799 | EC130B4/EC130T2 | Landing gear |
