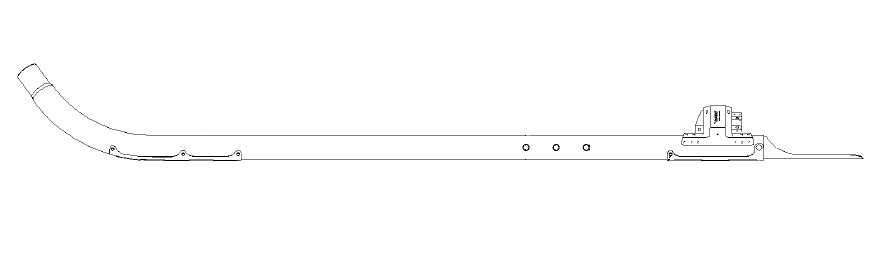

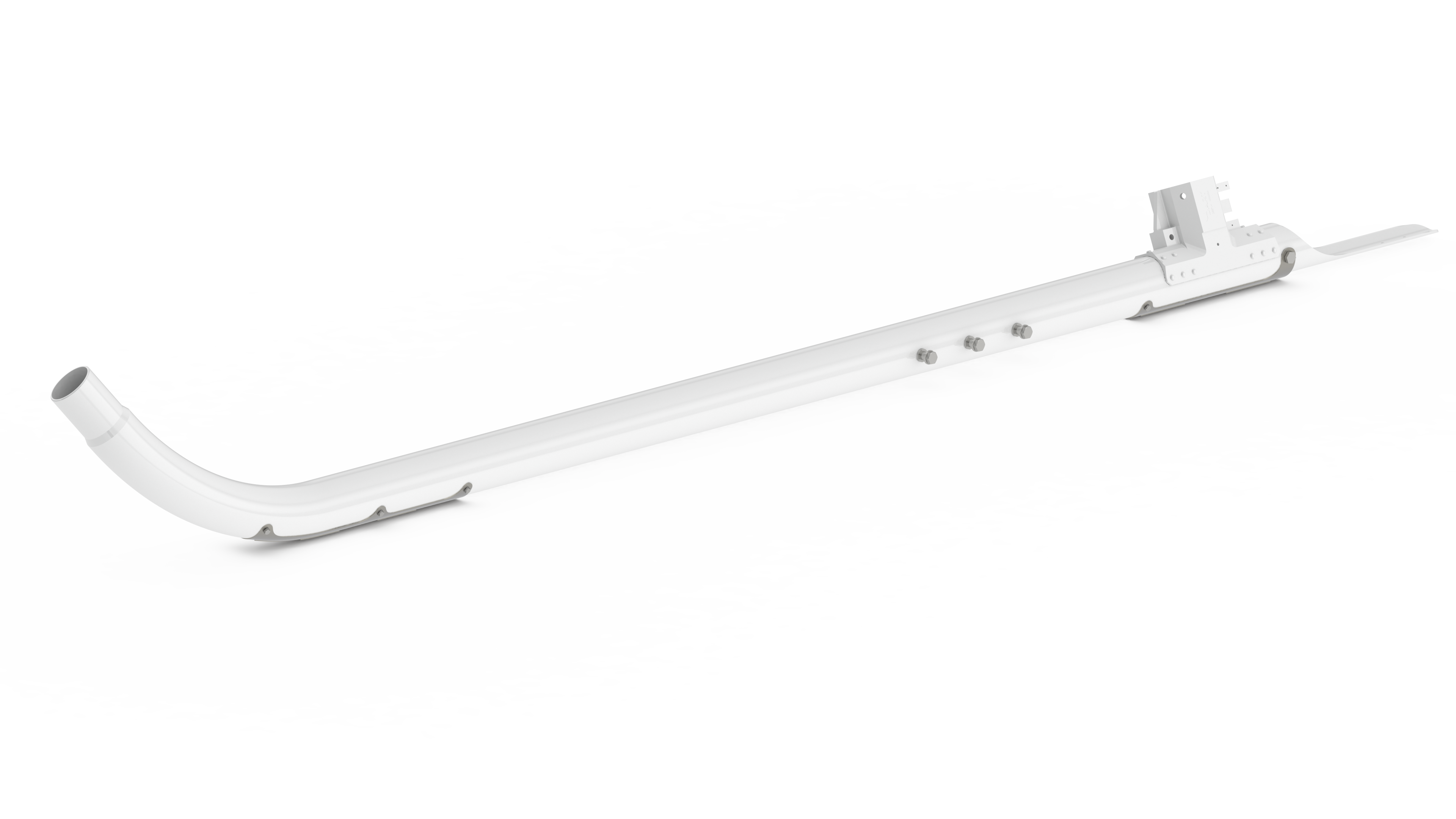

H130/EC130 - Skidtube - Standard w/ Basic Wearplates - LH


Part Number: D130-1048-011

Aircraft Models: Airbus - EC130

  • A few left in stock!
DART's EC130 Skidtubes are a direct replacement to OEM parts. These Standard Skidtubes are also compatible with Flotation Systems since they don't require specific provisions. DART offers Basic OEM Wearplates and exclusive Full-Length Standard Wearplates for additional protection. Other exclusive features include the Heavy-Duty Blade (Stinger) improved design made of Stainless Steel to prevent bending issues related to landing touch points. Exclusive Wearplates and Heavy-Duty Stinger can also be retrofitted on OEM Skidtubes.

Key Features

  • Tube made of high strength Aluminum alloy
  • Equipped with Basic OEM Wearplates protection and Basic Blade (Stinger) made of Aluminum

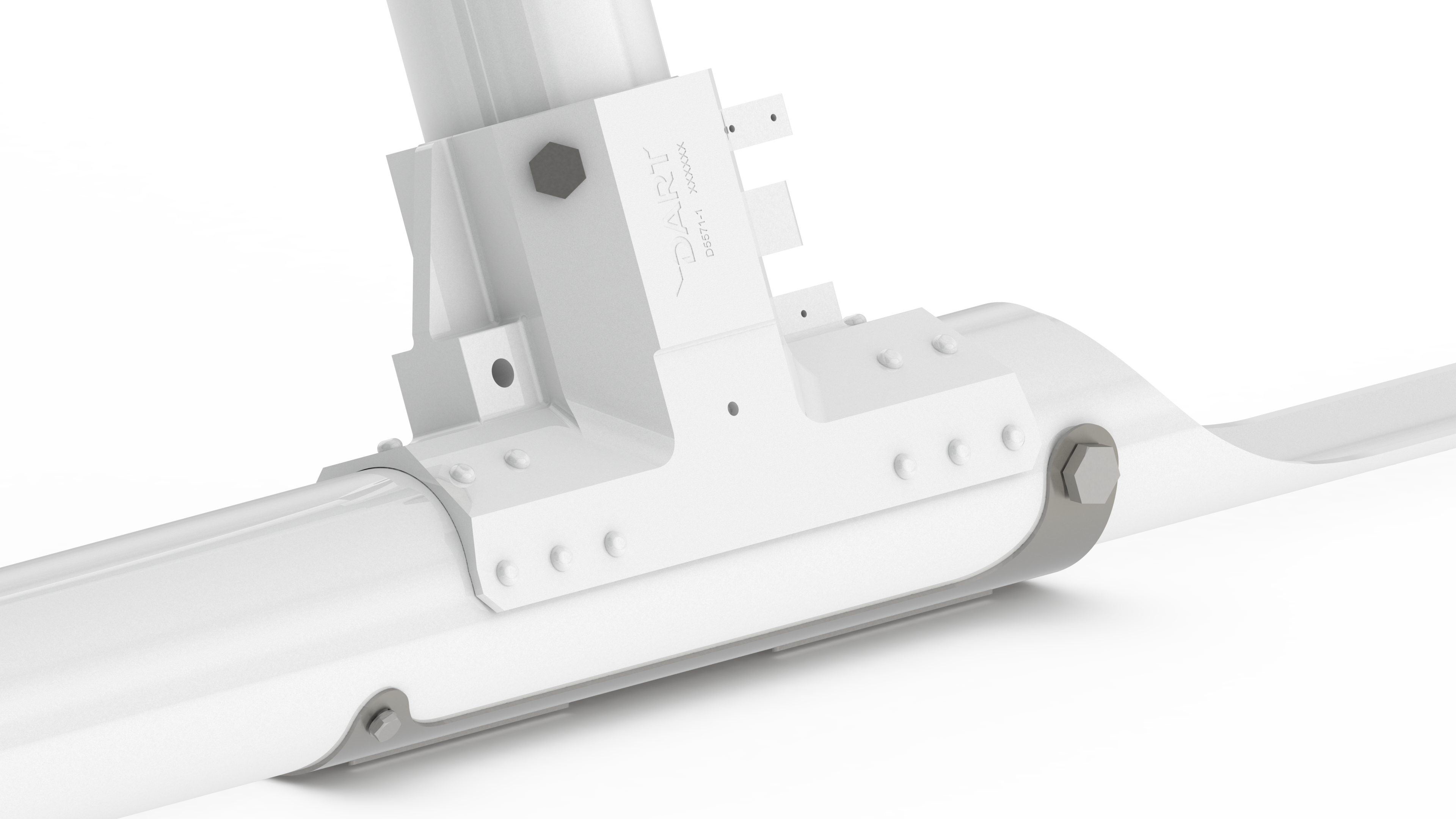

  • Saddle, Wearplates, Blade (Stinger) and Ground Handling Lugs factory installed
  • Out-of-the-box painted white
  • Transfer drill rivet holes at FWD Crosstubes joint for ease of installation
  • Skidtubes can be replaced as a set or on an individual basis

Key Benefits

  • Direct OEM Replacement
  • Weight neutral vs. OEM part
  • Compatible with DART & OEM Crosstubes

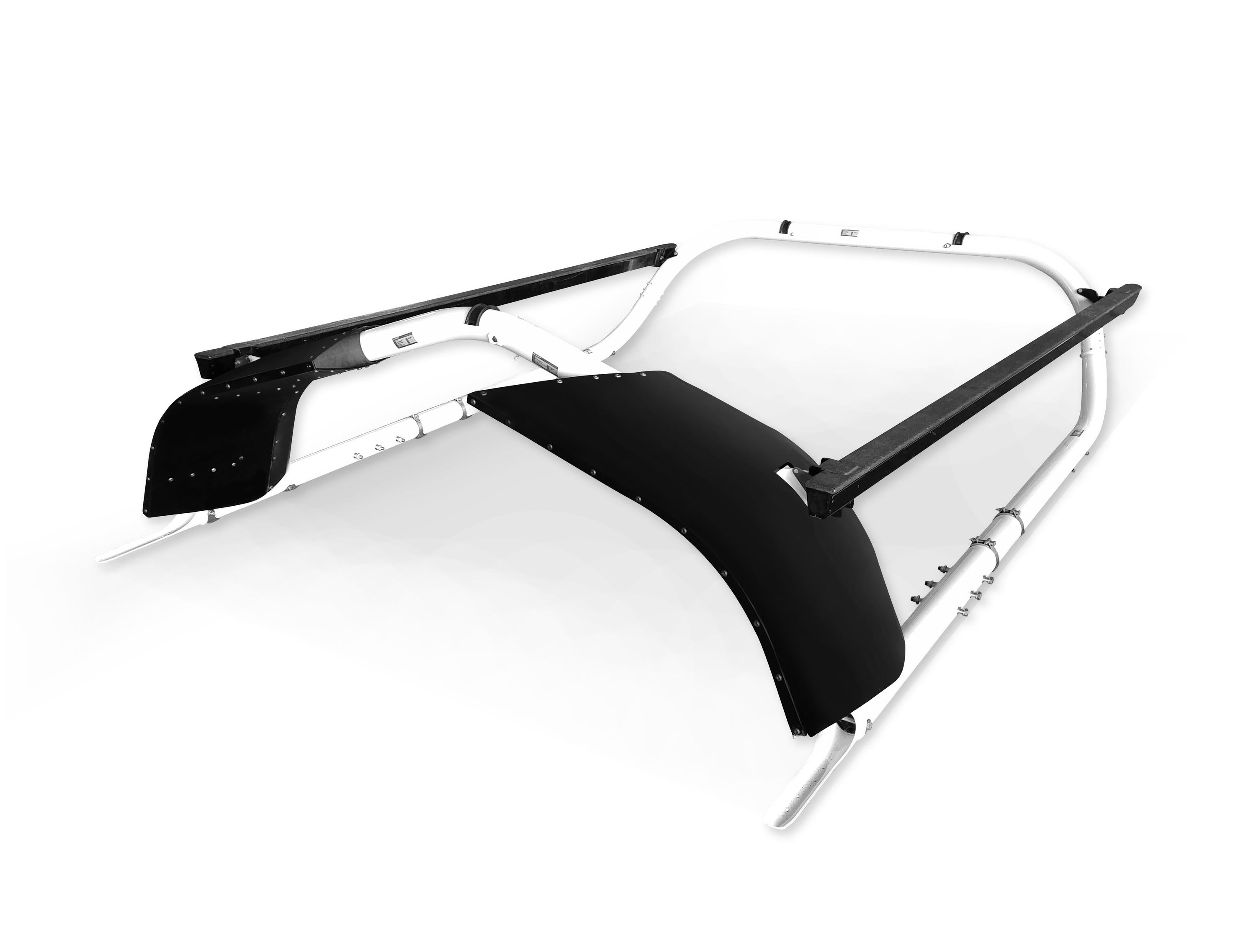

  • Compatible with DART & OEM Flotation
  • Compatible with OEM Ground Handling Wheel
  • Improved alloy provides superior corrosion and cracking resistance especially at riveted FWD joint

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH19-4 EC130B4/EC130T2 Installation of Landing Gear Kits
STC FAA - USA SR04320NY EC130/EC130B4/EC130T2 Installation of Landing Gear kits
STC EASA - Europe 10070799 EC130B4/EC130T2 Landing gear

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: 108.8" / 2.76m
  • Width: N/A
  • Weight Display: 25.9lbs / 11.8kgs

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
