Description

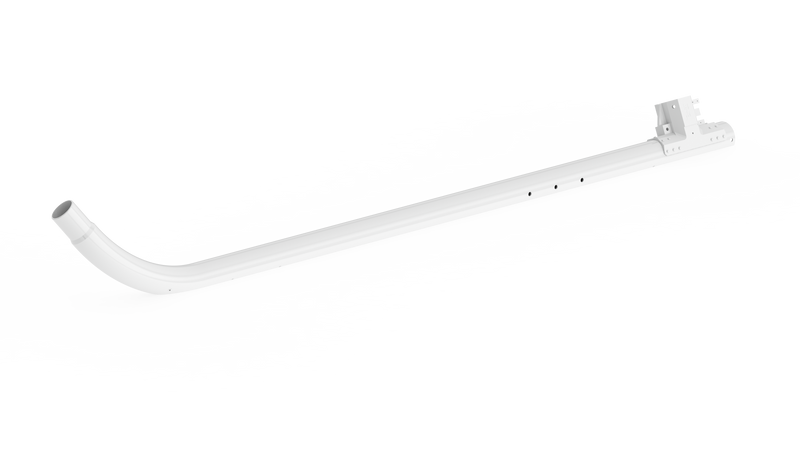

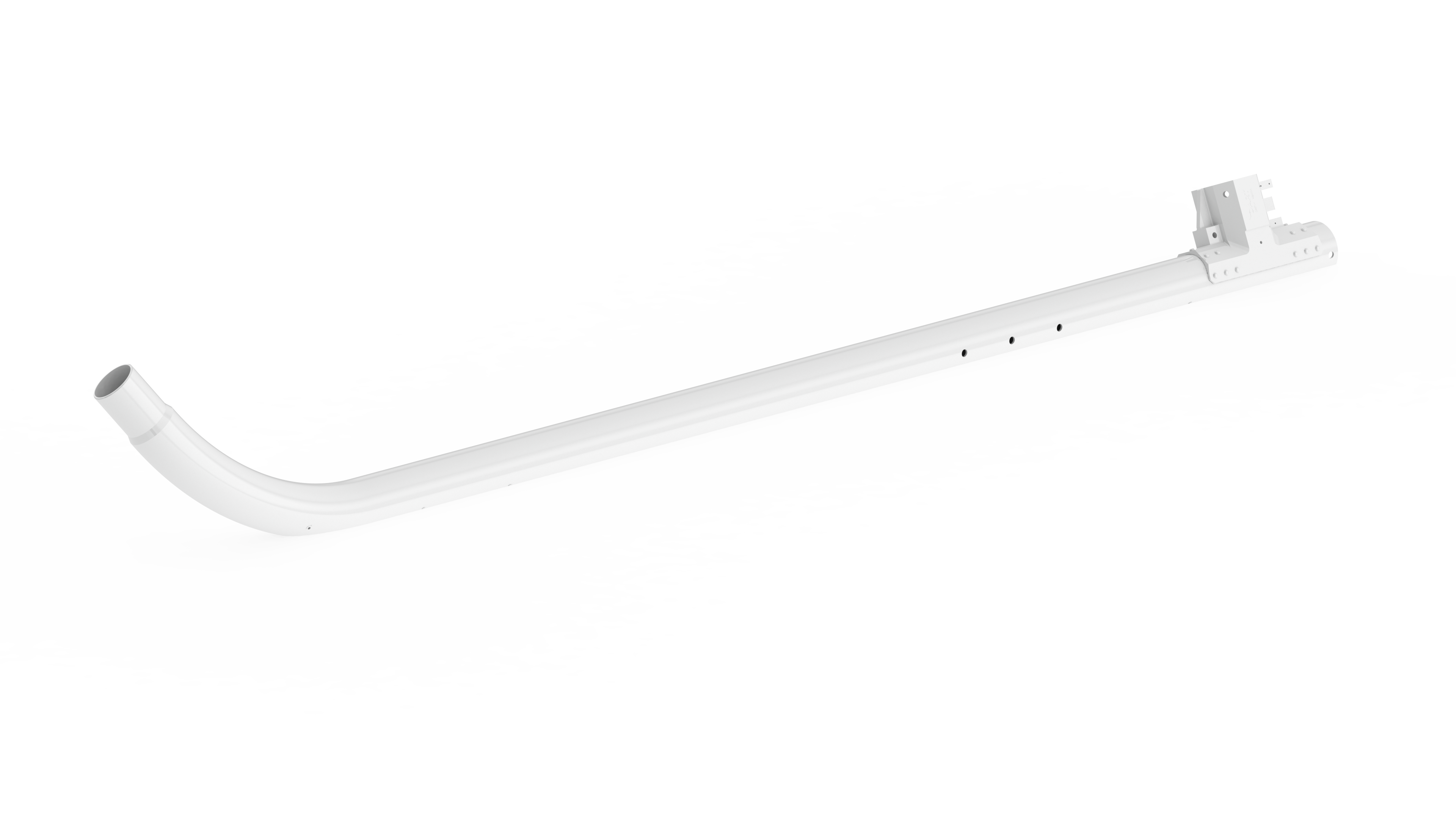

DART's EC130 Replacement Skidtubes are the most economical direct replacement to OEM parts. These bare bone Replacement Skidtubes allow to re-use serviceable OEM or DART parts such as: Wearplates, Blade (Stinger), Ground Handling Lugs and hardware. As opposed to DART's current Skidtube offering, this option is not factory assembled to the exception of the Saddle which comes pre-installed.
*Sub-component of D130-1048-012 and D130-1048-014.
Key Features
- Bare Tube Replacement
- Saddle included and factory installed
- Wearplates, Blade (Stinger) and Ground Handling Lugs not included
- Tube made of high strength Aluminum alloy
- Out-of-the-box painted white
- Transfer drill rivet holes at FWD Crosstubes joint for ease of installation
- Skidtubes can be replaced as a set or on an individual basis
Key Benefits
- Direct OEM Replacement
- Compatible with DART & OEM Wearplates, Blade (Stinger) and Ground Handling Lugs
- Compatible with DART & OEM Crosstubes
- Compatible with OEM Ground Handling Wheel
- Improved alloy provides superior corrosion and cracking resistance especially at riveted FWD joint
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH19-4 | EC130B4/EC130T2 | Installation of Landing Gear Kits |
| STC | FAA - USA | SR04320NY | EC130/EC130B4/EC130T2 | Installation of Landing Gear kits |
| STC | EASA - Europe | 10070799 | EC130B4/EC130T2 | Landing gear |
