Description

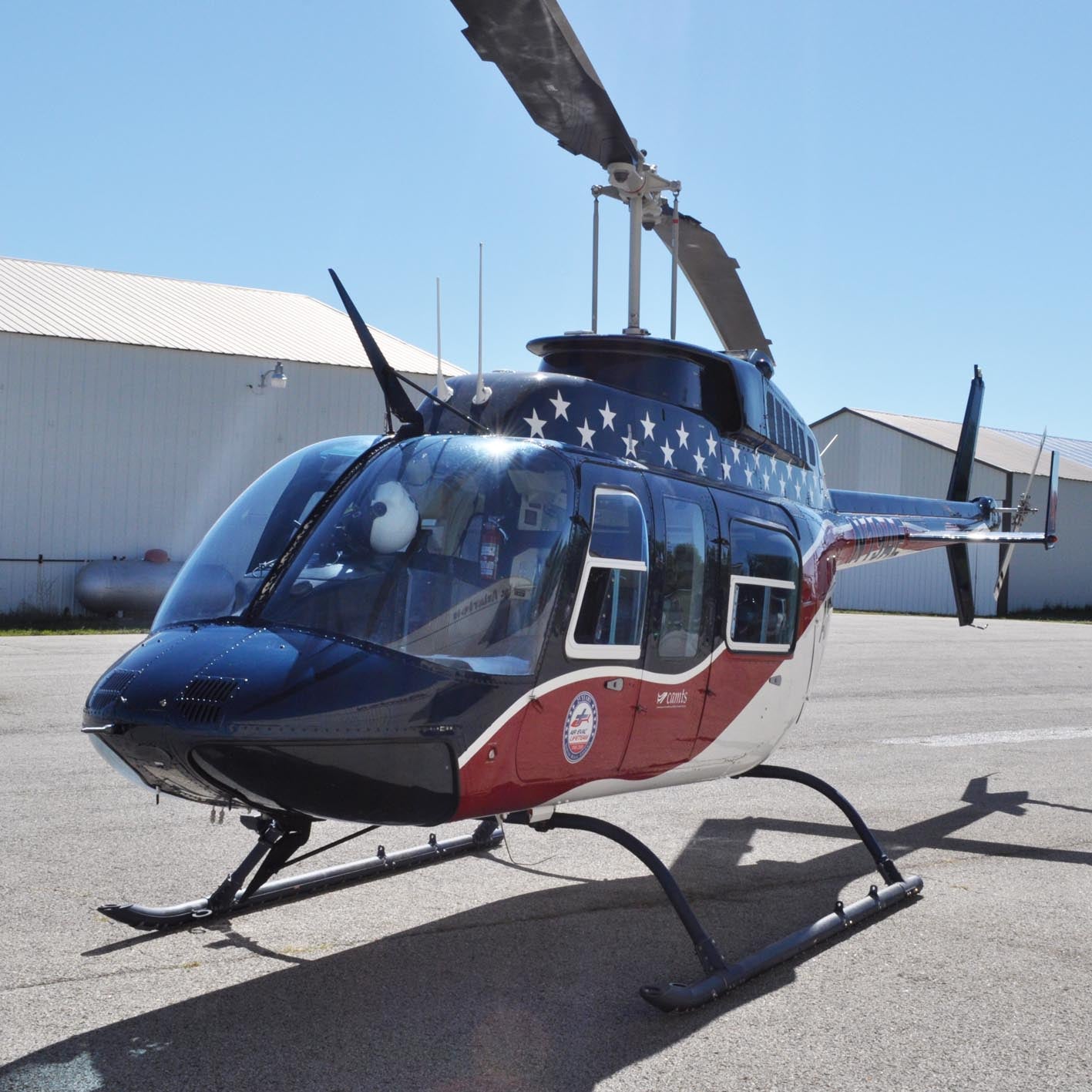

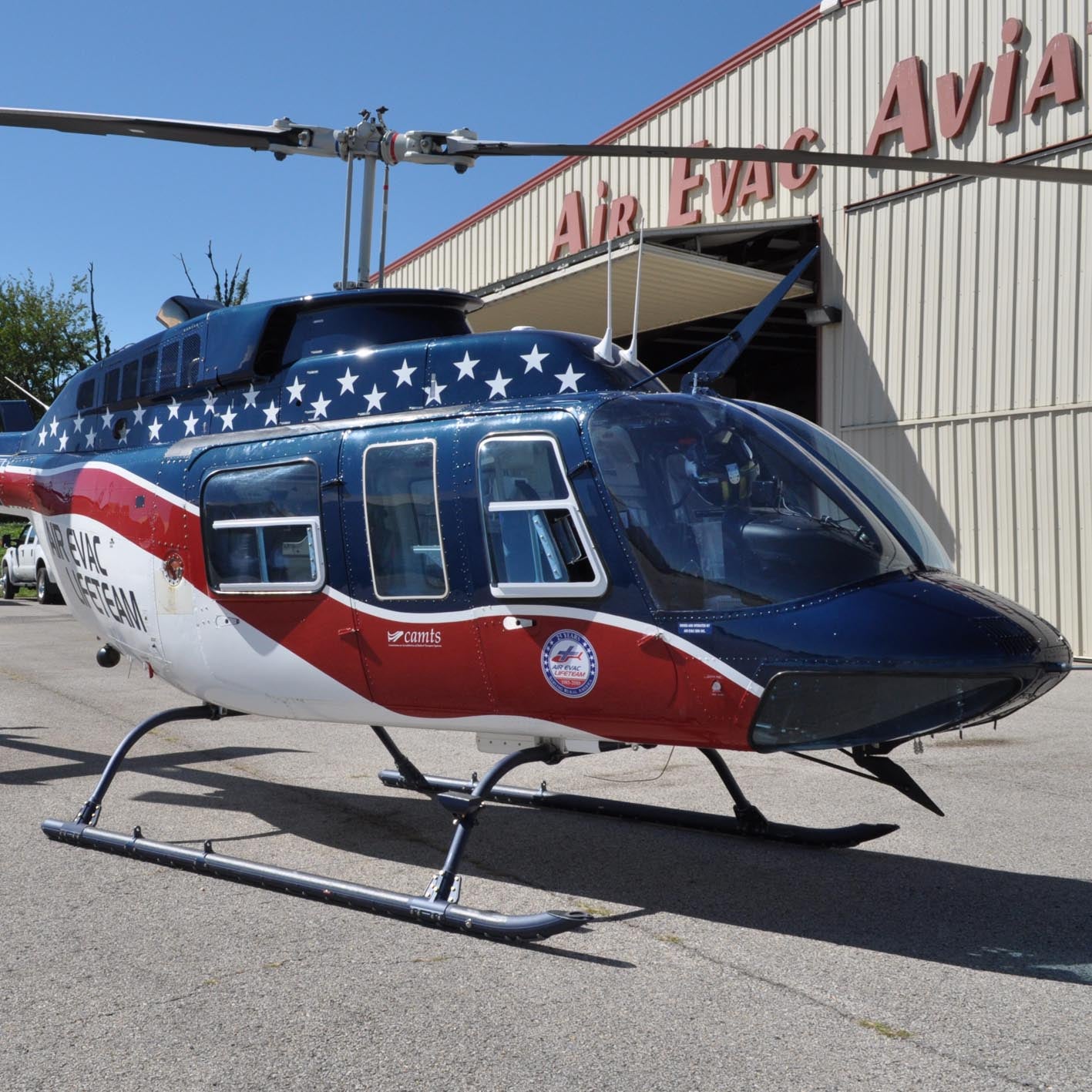

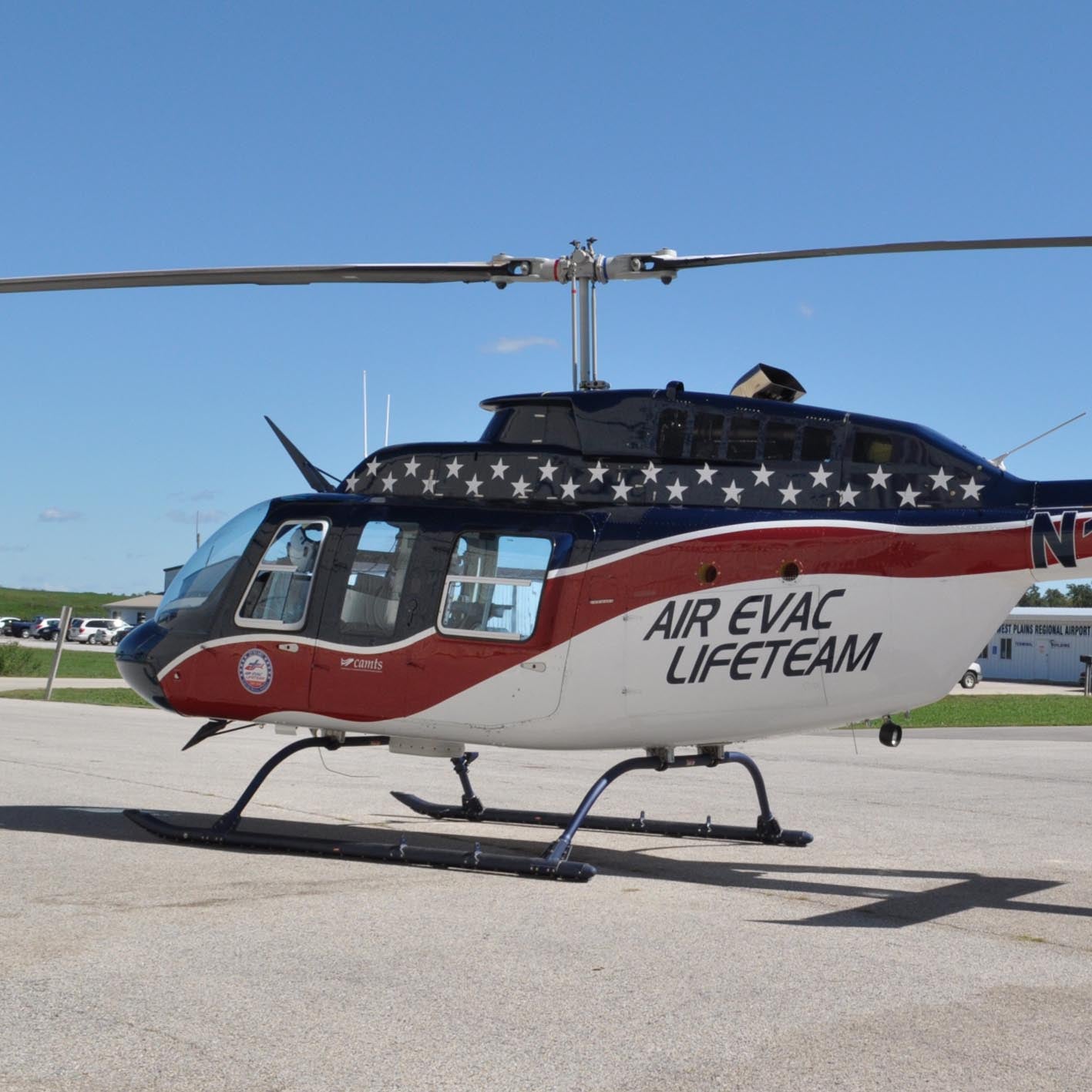

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria. Mid Height Crosstubes are ideal for EMS operations. Lowered height and absence of a full-length step allows the medics to more easily load and unload patients, reducing the incidence of back injuries. Mid Height Crosstubes save weight by eliminating the need for full-length steps.
*Measures 20.5" from ground to bottom of crosstube. Includes grounding straps. Compatible with DART/OEM/AAI Standard Skidtubes.
Key Features
- Exclusive height
- Not life limited
- Easy thru-bolt installation
- 5" lower than high gear
Key Benefits
- Easy thru-bolt installation
- Lightweight solution compared to high crosstubes
- Easier passenger loading; reduced risk of medic back injuries
- No step required to enter aircraft
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - Mexico | IA-787/2022 | 206A/206B/206L/206L3/206L4/407 | STC for D206-667 crosstubes |
| STC | ANAC - Brazil | 2009S08-16 | 206A/206B/206L1/206L3/206L4 | D206-667 Approved OEM Replacement Crosstube |
| STC | EASA - Europe | EASA.IM.R.S.01179 | 206A/206B/206L/206L1/206L3/206L4/407 | D206-667 & D407-667 Approved OEM Replacement Crosstube |
| STC | TCCA - Canada | SH01-5 | 206A/206B/206L/206L1/206L3/206L4/407 | D206-667 & D407-667 Approved OEM Replacement Crosstube |
| STC | FAA - USA | SR01304NY | 206A/206B/206L/206L1/206L3/206L4/407 | D206-667 & D407-667 Approved OEM Replacement Crosstube |
| STC | JCAB - Japan | STC-32-OSA | 206A/206B/206L/206L1/206L3/206L4 | D206-667 Approved OEM Replacement Crosstube |
