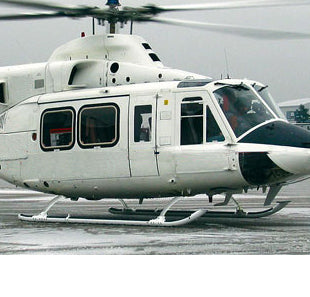

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART low Fwd crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria.
*Measures 22" from ground to bottom of crosstube under-support. Compatible with DART/OEM/AAI Standard Skidtubes. Acceptable but not direct replacement for 205-050-152-49, DART crosstube is 4" wider. Not compatible with 214-050-005-003 /-004 skidtubes. Approved for maximum gross weight of 11,900 lbs .
Couldn't load pickup availability
Key Features
Clamp-on stainless steel supports (no rivets)
Key Benefits
Not life limited
FAA approved for UH-1B & UH-1H
Easy thru-bolt installation
Approvals
Approval type
Authority
Reference number
Aircraft approved
Description
STC
JCAB - Japan
STC-523-TYO
412EP
D212-664 & D412-664 Crosstube
STC
EASA - Europe
EASA.IM.R.S.01304
204B/205A1/205B/212/214B/214B1/412/412EP
D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC
TCCA - Canada
SH01-9
204B/205A1/205B/212/214B/214B1/412/412CF/412EP
D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC
DGCA - Mexico
IA-316/2015
204B/205A1/205B/212/214B/214B1/412/412CF/412EP
Crosstube Installation
OEM Cross References
N/A
External Warning
Acceptable but not direct replacement for 205-050-152-49, DART crosstube is 4 inches wider; contact customer support (support.ON@dartaero.com) for more details.
