Description

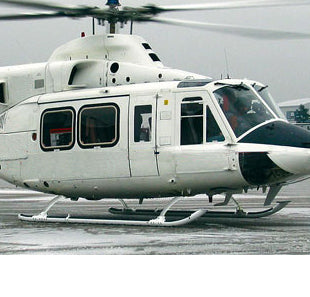

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART low narrow Fwd crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria.
*Measures 20" from ground to bottom of crosstube under-support. Also an approved replacement Fwd crosstube for Griffon CH-146.
Key Features
- Clamp-on stainless steel supports (no rivets)
Key Benefits
- Not life limited
- Easy thru-bolt installation
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.01304 | 204B/205A1/205B/212/214B/214B1/412/412EP | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | TCCA - Canada | SH01-9 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | FAA - USA | SR01298NY | 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | DGCA - Mexico | IA-316/2015 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | Crosstube Installation |
