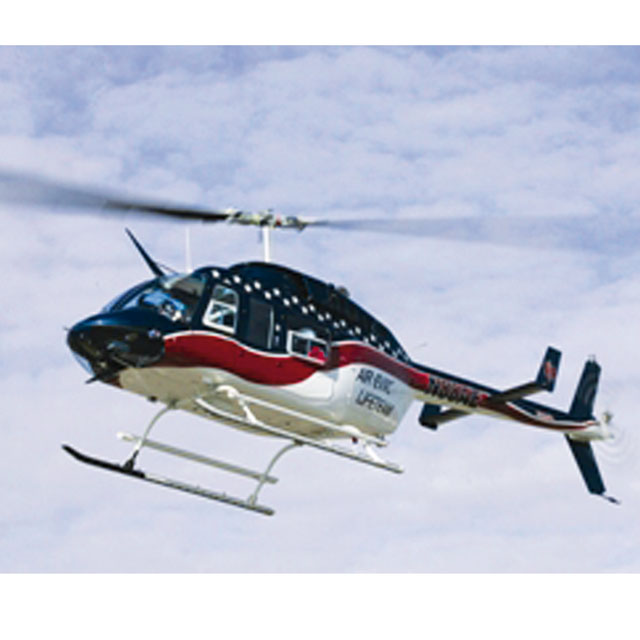

Fwd Crosstube - High 407


Part Number: D407-667-105

Aircraft Models: Bell - 407

  • In stock
Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria. *Measures 25 in. from ground to bottom of crosstube. Includes grounding straps. Compatible with DART/OEM/AAI Standard and Float Skidtubes. Maximum possible gross weight with DART Crosstubes installed is 5,250 lbs. Do not exceed RFM/RFMS limits.

Key Features

  • Clamp-on stainless steel supports (no rivets)
  • Compatible with DART/OEM/AAI skidtubes
  • Comes out of the box painted white and ready to install on your helicopter

Key Benefits

  • Not life limited
  • Easy thru-bolt installation

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2009S08-17 407 D206-667 Approved OEM Replacement Crosstube
STC EASA - Europe EASA.IM.R.S.01179 206A/206B/206L/206L1/206L3/206L4/407 D206-667 & D407-667 Approved OEM Replacement Crosstube
STC TCCA - Canada SH01-5 206A/206B/206L/206L1/206L3/206L4/407 D206-667 & D407-667 Approved OEM Replacement Crosstube
STC FAA - USA SR01304NY 206A/206B/206L/206L1/206L3/206L4/407 D206-667 & D407-667 Approved OEM Replacement Crosstube
STC DGCA-Mexico IA-787-2022 206A/206B/206L/206L1/206L3/206L4/407 STC for D206-667 crosstubes

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

DART/OEM/AAI Standard and Float Skidtubes.

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 17.8 lbs / 8.1 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
