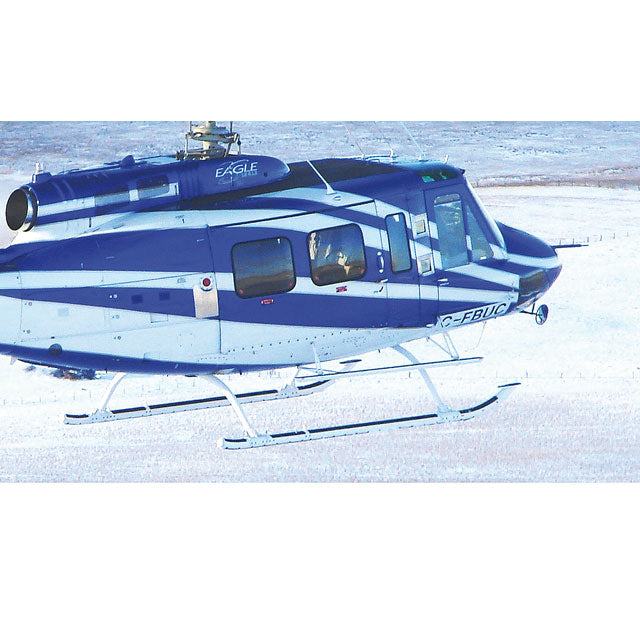

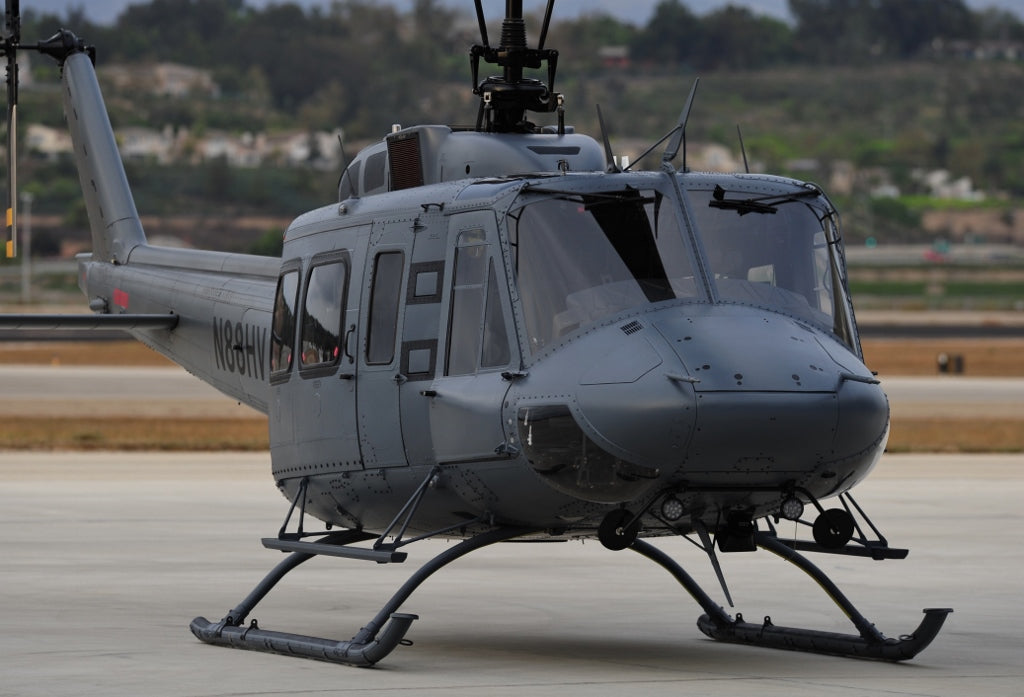

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART high Fwd crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria.
*Approved for 214 models only. Measures 28" from ground to bottom of crosstube under-support. Compatible with DART/OEM/AAI Standard & Float Skidtubes. Not compatible with 214-050-005-003 /-004 skidtubes. Approved for maximum gross weight of 11,900 lbs .
Couldn't load pickup availability
Key Features
Clamp-on stainless steel supports (no rivets)
Key Benefits
Not life limited
Easy thru-bolt installation
Approvals
Approval type
Authority
Reference number
Aircraft approved
Description
STC
EASA - Europe
EASA.IM.R.S.01304
204B/205A1/205B/212/214B/214B1/412/412EP
D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC
TCCA - Canada
SH01-9
204B/205A1/205B/212/214B/214B1/412/412CF/412EP
D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC
DGCA - Mexico
IA-316/2015
204B/205A1/205B/212/214B/214B1/412/412CF/412EP
Crosstube Installation
OEM Cross References
N/A
External Warning
This is only approved for 214 models.
D212-664-101B forward cross-tubes have a life limit of 20,000 landings.
D212-664-101B forward cross-tubes have also been subjected to Liquid Penetrant Inspection (L.P.I.) at 10,000 and 15,000 landings.
Prerequisite
N/A
Compatible With
DART/OEM/AAI Standard & Float Skidtubes.
Not Compatible With
Skidtubes: 214-050-005-003 / 214-050-005-004
Flight Restrictions
214 models are approved for max gross takeoff & landing weight of 11,900 lb
