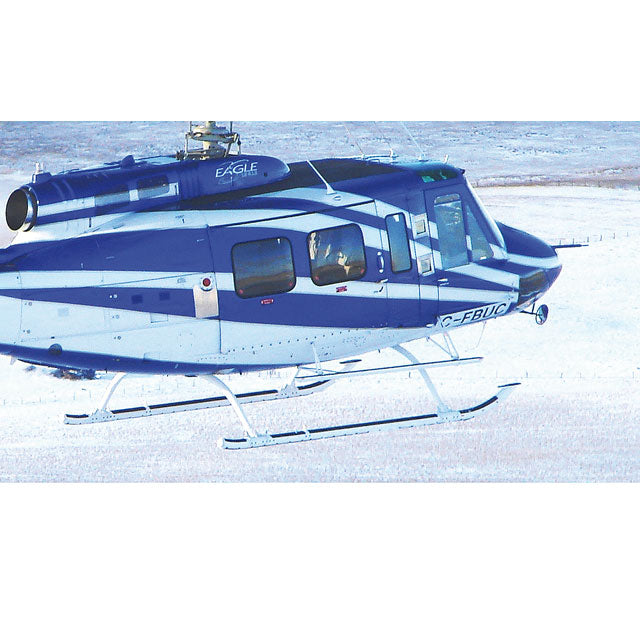

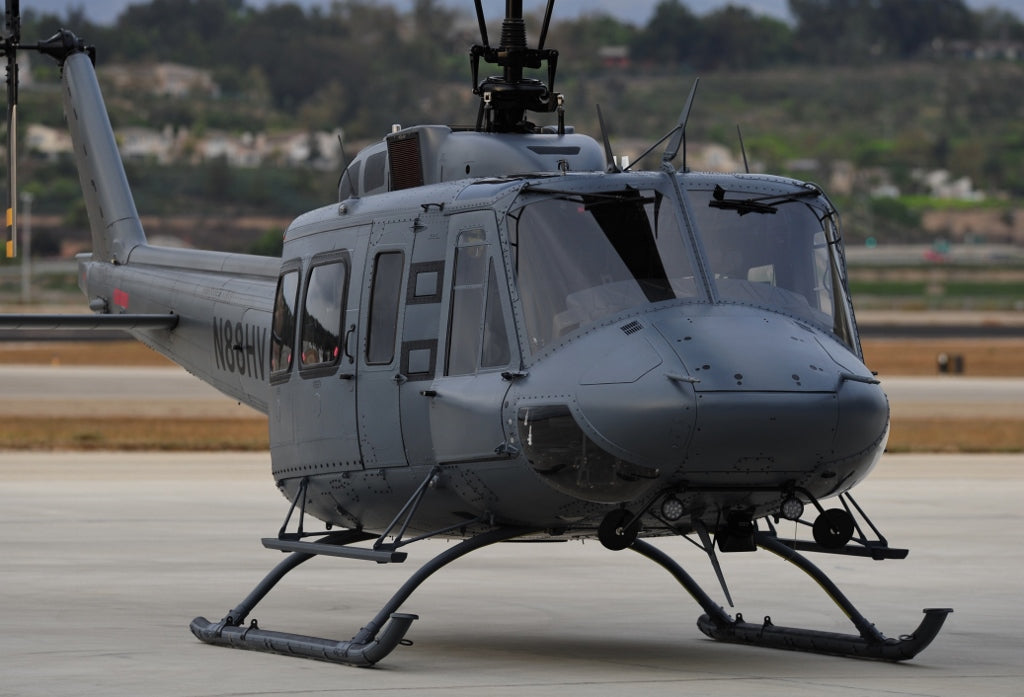

Fwd Crosstube - High


Part Number: D212-664-101

Aircraft Models: Bell - 204;Bell - 205;Bell - 212

  • In stock
Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART high Fwd crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria. *Measures 28" from ground to bottom of crosstube under-support. Compatible with DART/OEM/AAI Standard & Float Skidtubes.

Key Features

  • Now TCCA/FAA/EASA approved to 12,200 lb gross weight
  • Clamp-on stainless steel supports (no rivets)
  • Compatible with DART & OEM Skidtubes
  • Comes out of the box painted white and ready to install on your helicopter
  • FAA approved for UH-1B & UH-1H

Key Benefits

  • Easy thru-bolt installation
  • Direct OEM Replacement

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-523-TYO 412EP D212-664 & D412-664 Crosstube
STC EASA - Europe EASA.IM.R.S.01304 204B/205A1/205B/212/214B/214B1/412/412EP D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC TCCA - Canada SH01-9 204B/205A1/205B/212/214B/214B1/412/412CF/412EP D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC FAA - USA SR01298NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC DGCA - Mexico IA-316/2015 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Crosstube Installation

OEM Cross References

N/A

External Warning

D212-664-101 forward cross-tubes have a life limit of 20,000 landings. D212-664-101 forward cross-tubes have also been subjected to Liquid Penetrant Inspection (L.P.I.) at 10,000 and 15,000 landings.

Prerequisite

N/A

Compatible With

DART/OEM/AAI Standard & Float Skidtubes.

Not Compatible With

Bell 214 (unless kit has"B" at end of Part number)

Flight Restrictions

N/A

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 33.60 lbs / 15.24 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
