Full Vertical Reference Door Modification Kit (Wide Armrest)

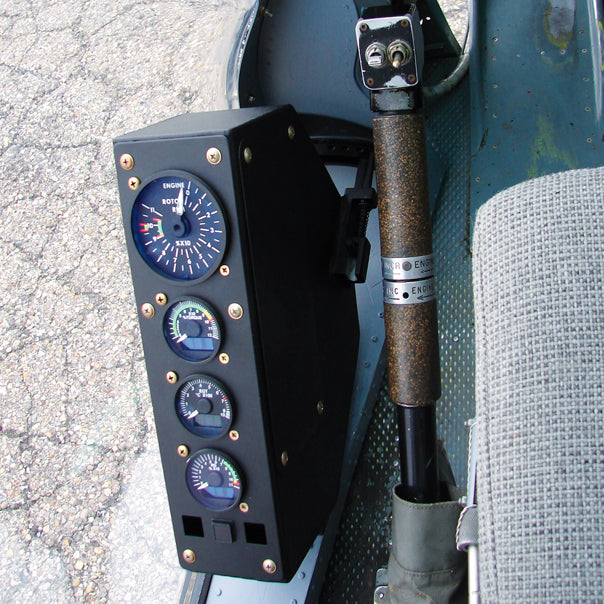

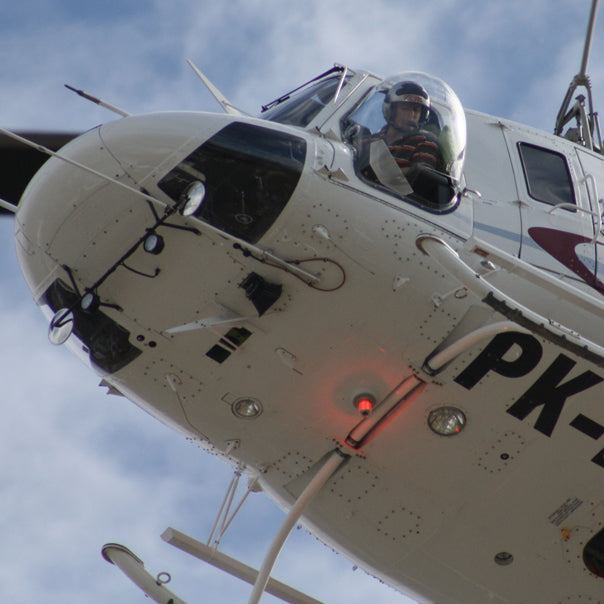

The DART Aerospace Full Vertical Reference Door Modification Kits provide improved visibility of slung cargo in flight while simultaneously monitoring flight instruments. The modification kit comes complete with with a full height bubble window, a new armrest, door mounted instrument panel and provisions for relocating the instruments. They allow the customer to modify their own door. This modification requires coincident installation of dual controls and basic flight instruments in the co-pilot position as per Bell Helicopter Service Instructions and installation of an approved mechanical cargo hook release in the co-pilot position. *Modifies an existing LH door for vertical reference operations. Kit comes with window, seal, wide armrest and provisions to relocate instruments. Wiring harness not included. Vents are customer installed. Special C of A required for Single Pilot Operations from the LH Seat with D412-761 kit installed. Special C of A is NOT required on the 412EPI. Requires installation of: Dual controls installed per Bell Helicopter service instruction (all models), force trim system for LH seat only operation (all models), approved mechanical cargo hook release in LH position (Dart p/n D412-704-011 or D205-704-013 or D412-704-015 or equivalent - all models except EPI) (Dart p/n D412-704-015 or equivalent - EPI only), Bell Helicopter Left Hand Pilot in Command Kit 412-706-134-101 (EPI only), Bell Helicopter Vertical Reference Operations Kit 412-706-135-101 (EPI only), and Bell Helicopter Cargo Hook Long Line Release Provisions Kit 412-706-136-101 (EPI only)
