Full Emergency Litter Kit

Part Number: D350-616-011
Aircraft Models: Airbus - AS350

Price:
The Emergency Stretcher Kit is designed for quick evacuation with non dedicated EMS aircraft. 4 fast and simple steps are all that are needed to transform your aircraft for emergency evacuation: 1. Back seat is folded 2. Front seat is removed 3. Tie down brackets are inserted into the doublers using Pip Pins 4. The stretcher is inserted into the brackets using the easy slide-in locking mechanism The changeover from utility to emergency evacuation use takes less than 5... Read more

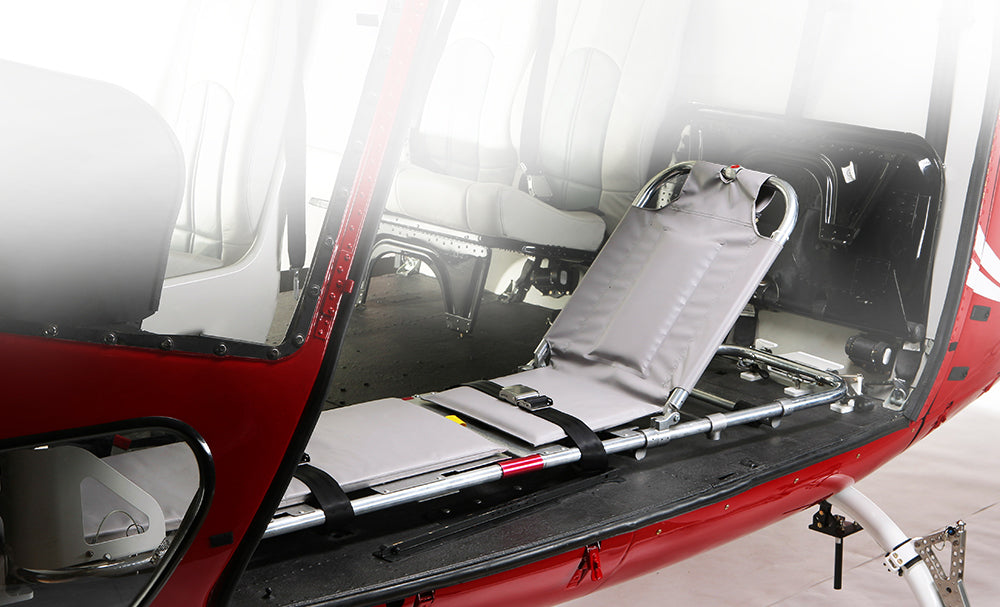

The Emergency Stretcher Kit is designed for quick evacuation with non dedicated EMS aircraft. 4 fast and simple steps are all that are needed to transform your aircraft for emergency evacuation: 1. Back seat is folded 2. Front seat is removed 3. Tie down brackets are inserted into the doublers using Pip Pins 4. The stretcher is inserted into the brackets using the easy slide-in locking mechanism The changeover from utility to emergency evacuation use takes less than 5 minutes (after initial install). This system is ideal for police use, heli-skiing, and servicing remote areas. The complete kit stores in the cargo compartment, leaving the cabin floor free of brackets, so it doesn't interfere with your normal operations. Additional deck plate and tie down kits can be purchased and installed in multiple aircraft, thereby giving you the flexibility to install the stretcher in other aircraft. *1 kit completes 1 aircraft, includes litter, tie down brackets, deck plate kit & pedal stub cover. Compatible with sliding door & energy attenuating seat. Not compatible with DART Sliding Door Hinge Mod Kit. Price is per aircraft. Read less

Description

The Emergency Stretcher Kit is designed for quick evacuation with non dedicated EMS aircraft. 4 fast and simple steps are all that are needed to transform your aircraft for emergency evacuation: 1. Back seat is folded 2. Front seat is removed 3. Tie down brackets are inserted into the doublers using Pip Pins 4. The stretcher is inserted into the brackets using the easy slide-in locking mechanism The changeover from utility to emergency evacuation use takes less than 5 minutes (after initial install). This system is ideal for police use, heli-skiing, and servicing remote areas. The complete kit stores in the cargo compartment, leaving the cabin floor free of brackets, so it doesn't interfere with your normal operations. Additional deck plate and tie down kits can be purchased and installed in multiple aircraft, thereby giving you the flexibility to install the stretcher in other aircraft. *1 kit completes 1 aircraft, includes litter, tie down brackets, deck plate kit & pedal stub cover. Compatible with sliding door & energy attenuating seat. Not compatible with DART Sliding Door Hinge Mod Kit. Price is per aircraft.

Key Features

  • Tie downs install with pip pins to floor mounted deck plates
  • Provisions kit also available separately
  • Compatible with sliding door & Airbus energy attenuating seat
  • Compatible with Geneva console

Key Benefits

  • Ideal for quick evacuation with non-dedicated EMS aircraft
  • Removes/re-installs without tools in 4 quick and easy steps & less than 5 minutes (after initial install)
  • Floor provisions sit flush to the floor - no interference with normal operations
  • Litter can be stored in the side cargo compartment

Approvals

Approval type Authority Reference number Aircraft approved Description
STC CAAC - China VSTC0976A AS350B3/AS355NP Emergency Litter Kit Installation
STC DGAC – Ecuador ACTS-20-004 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit
STC EASA - Europe 10042994 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit Installation
STC ANAC - Brazil 2013S02-03 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2/HB-350B Emergency Litter Kit Installation
STC EASA - Europe 27/96 AS350B/AS350B1/AS350B2/AS350BA/AS350D Emergency Litter Kit Installation
STC EASA - Europe 84-SI0995 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Emergency Litter Kit Installation
STC TCCA - Canada SH96-10 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit Installation
STC FAA - USA SR00405NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit Installation

OEM Cross References

OEM Replacement / 350-200034-03
OEM Replacement / 350-200031-01

External Warning

N/A

Prerequisite

N/A

Compatible With

Eurocopter Energy Attenuating Seat; Geneva Console; Sliding Door

Not Compatible With

Sliding Door Hinge Mod Kit: D350-600-541

Flight Restrictions

None

Installation Time

12 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 32.50 lbs / 14.74 kg (full kit); 2.8 lbs / 1.27 kg (fixed provisions only)

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
