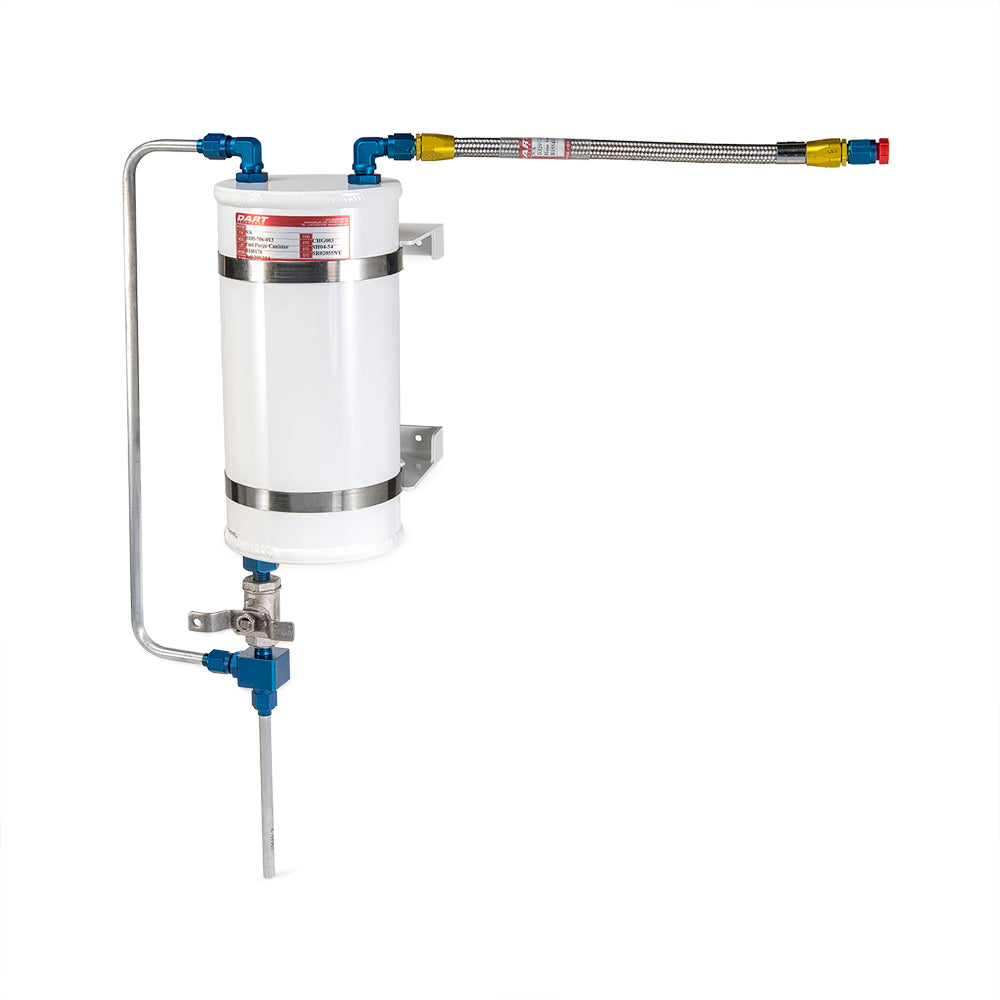

Fuel Purge Canister

Mission Equipment
Part Number: D205-706-013
Aircraft Models: Bell - 205;Bell - 212

Price:
Collect unused fuel during shutdowns and false starts, and prevent fuel release into environmentally sensitive areas. In the past, unused fuel was often "dumped" from the belly of the aircraft upon shut down. The Fuel Purge Canister Kit safely captures and contains unused fuel. The unused fuel is stored until the aircraft is in a controlled area. Then the fuel can be easily released into an environmentally-friendly system by simply opening a drain valve on the caniste... Read more
Collect unused fuel during shutdowns and false starts, and prevent fuel release into environmentally sensitive areas. In the past, unused fuel was often "dumped" from the belly of the aircraft upon shut down. The Fuel Purge Canister Kit safely captures and contains unused fuel. The unused fuel is stored until the aircraft is in a controlled area. Then the fuel can be easily released into an environmentally-friendly system by simply opening a drain valve on the canister (no bending or crawling on your hands and knees). The canister is designed to fit many different aircraft with a choice of installation locations. *Collects fuel from up to 50 false starts & shutdowns, all kits use same canister & mounting system, flexible installation allows for compatibility with other mods. Applicable to the Bell 205/214 models and Bell 212 modified per SH07-28. Read less

Description

Collect unused fuel during shutdowns and false starts, and prevent fuel release into environmentally sensitive areas. In the past, unused fuel was often "dumped" from the belly of the aircraft upon shut down. The Fuel Purge Canister Kit safely captures and contains unused fuel. The unused fuel is stored until the aircraft is in a controlled area. Then the fuel can be easily released into an environmentally-friendly system by simply opening a drain valve on the canister (no bending or crawling on your hands and knees). The canister is designed to fit many different aircraft with a choice of installation locations. *Collects fuel from up to 50 false starts & shutdowns, all kits use same canister & mounting system, flexible installation allows for compatibility with other mods. Applicable to the Bell 205/214 models and Bell 212 modified per SH07-28.

Key Features

N/A

Key Benefits

  • Environmentally friendly
  • Easy installation
  • Hassle-free shut downs

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01180 204B/205A/205A1/205B/212/214B/214B1/412 Fuel Purge Canister Installation
STC TCCA - Canada SH04-54 204B/205A/205A1/212/214B/214B1/412 Fuel Purge Canister Installation
STC FAA - USA SR02055NY 204B/205A/205A1/212/214B/214B1/412 Fuel Purge Canister Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

8 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.20 lbs / 2.36 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
