Folding Heli-Access-Step™ LH - Low, High & Float Gear


Part Number: D412-630-033

Aircraft Models: Bell - 205

  • In stock

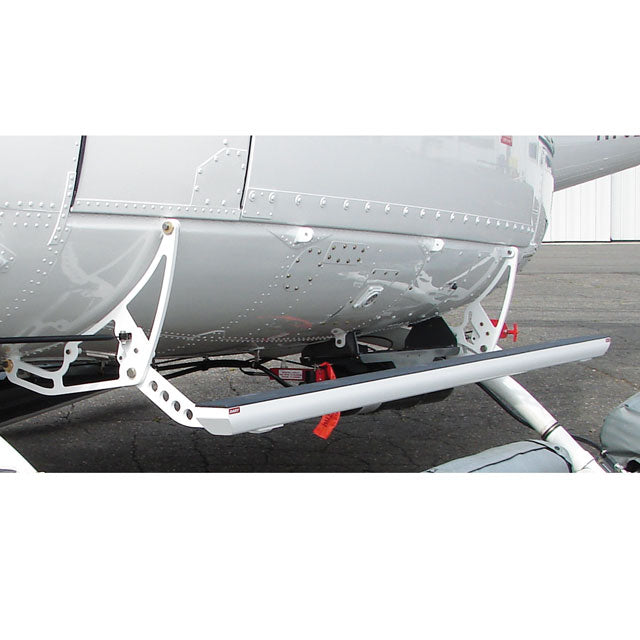

The folding step attaches to 2 sets of existing fuselage hardpoints and assists with splitting the height difference between the aircraft floor and the ground. Step folds out of the way upon float inflation. They are compatible with winch/hoist, rappel and fast rope. *Mounts to fuselage hardpoints at STA 84.29 & STA 155.06. Installs on low & high gear. OEM & DART (Apical) Float compatible. Required equipment for the 614.7601 & 614.7602 Apical Tri-Bag flotation systems (redesign of -023). Price is per side.

Key Features

  • Attaches to 2 sets of existing fuselage hardpoints
  • Non-slip surface

Key Benefits

  • Rated for 510 lbs (3 x 170 lb people) personnel load in flight
  • Winch/hoist/rappel/fast rope compatible

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - India 27014/43/2021-AED 412EP Installation of steps
STC EASA - Europe EASA.IM.R.S.01204 205A/205A1/205B/212/214B/214B1/412/412EP Heli-Access-Step™ D412-630
STC ECAA - Egypt ECAA/AW/AE/D0001/R0 212/412EP Heli-Access-Step™ D412-630
STC TCCA - Canada SH96-69 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Heli-Access-Step™ D412-630
STC FAA - USA SR00595NY 205A/205A1/205B/210 Heli-Access-Step™ D412-630
STC FAA - USA SR00597NY 214B/214B1 Heli-Access-Step™ D412-630
STC FAA - USA SR00598NY 212/412/412CF/412EP/AB412/AB412EP Heli-Access-Step™ D412-630
STC JCAB - Japan STC-112-2-TYO 212/412/412EP Heli-Access-Step™ D412-630

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

OEM & DART (Apical) Floats

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

3 hrs

Dimensions And Weight

  • Length: 85.15" / 2.2m
  • Width: N/A
  • Weight Display: 13.90 lbs / 6.30 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
