Floor Provisions Kit Energy Attenuating Seat Compatible

Part Number: D350-689-023
Aircraft Models: Airbus - AS350
Price:

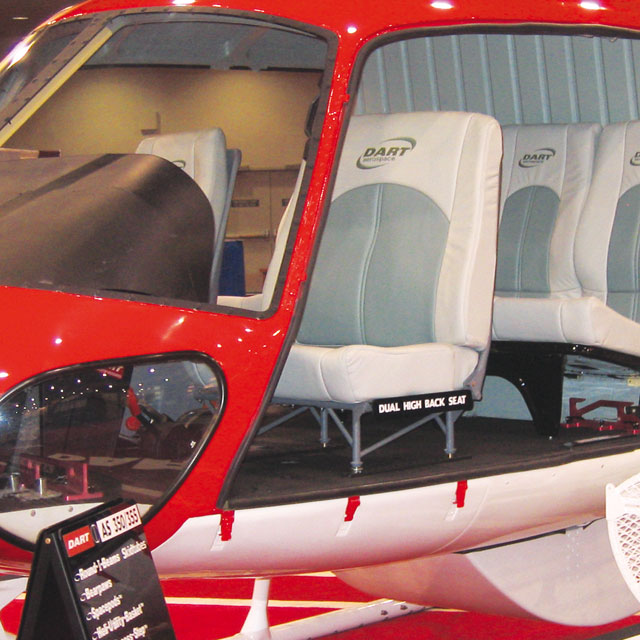

*Modifies floor to accept D350-689-021 Dual High-Back Seat. Compatible with Energy Attenuating Seat rails. Does not require removal of existing seat rails. Price is per aircraft.

Description

*Modifies floor to accept D350-689-021 Dual High-Back Seat. Compatible with Energy Attenuating Seat rails. Does not require removal of existing seat rails. Price is per aircraft.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2005S03-09 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F1/AS355F2/AS355N Dual High-Back Seat, LH Fwd Position
STC EASA - Europe EASA.IM.R.S.01453 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Dual High-Back Seat, LH Fwd Position
STC TCCA - Canada SH02-33 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2 Dual High-Back Seat, LH Fwd Position
STC FAA - USA SR01620NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Dual High-Back Seat, LH Fwd Position

OEM Cross References

N/A

External Warning

Must remove optional Dual Controls.

Prerequisite

N/A

Compatible With

Energy attunating seats; P134 Rear Bench Seat Modification; OEM Sliding Door

Not Compatible With

DART Dual Seat and the Short Seat Rail for the new style OEM Composite Seats (SICMA 198-Series) are not compatible.

Flight Restrictions

None

Installation Time

8 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.50 lbs / 1.13 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
