Engine Wash Kit

Part Number: D139-799-015
Aircraft Models: AgustaWestland - AW139

Price:

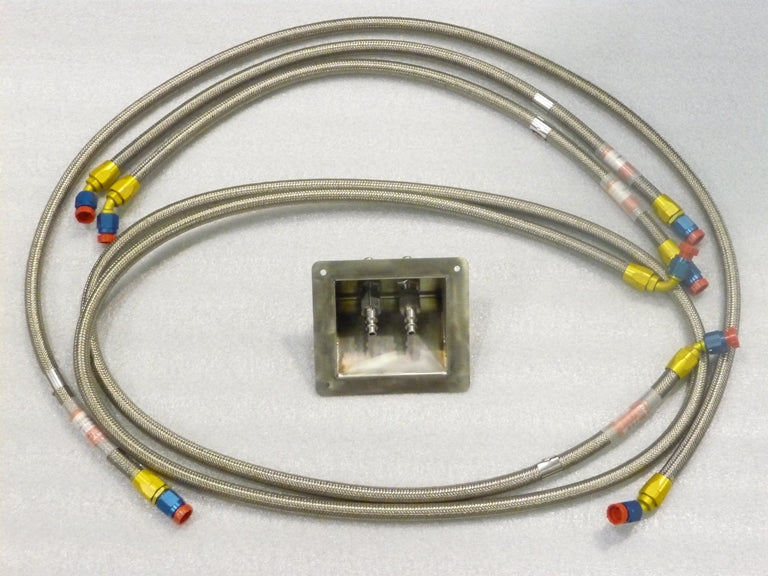

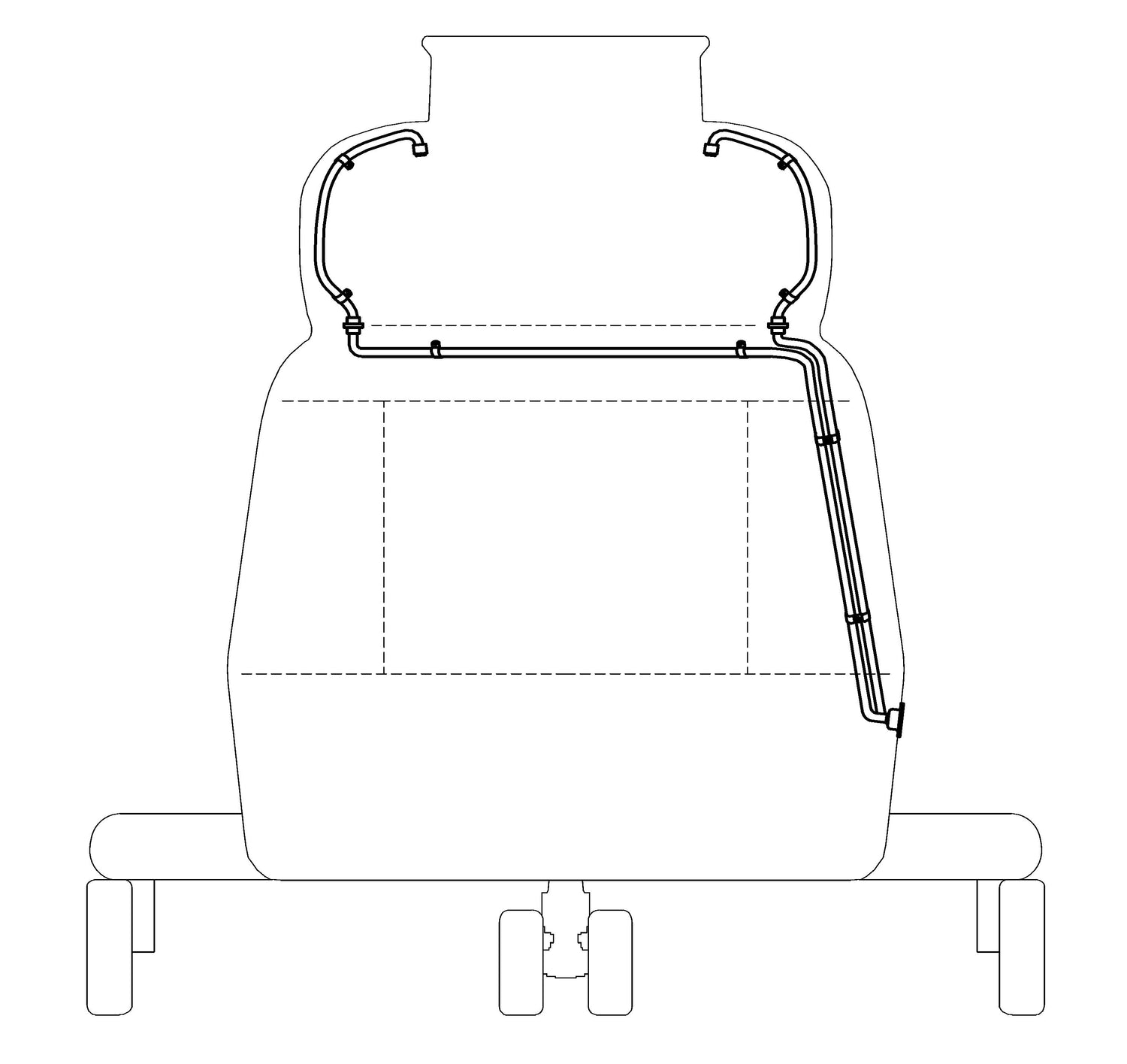

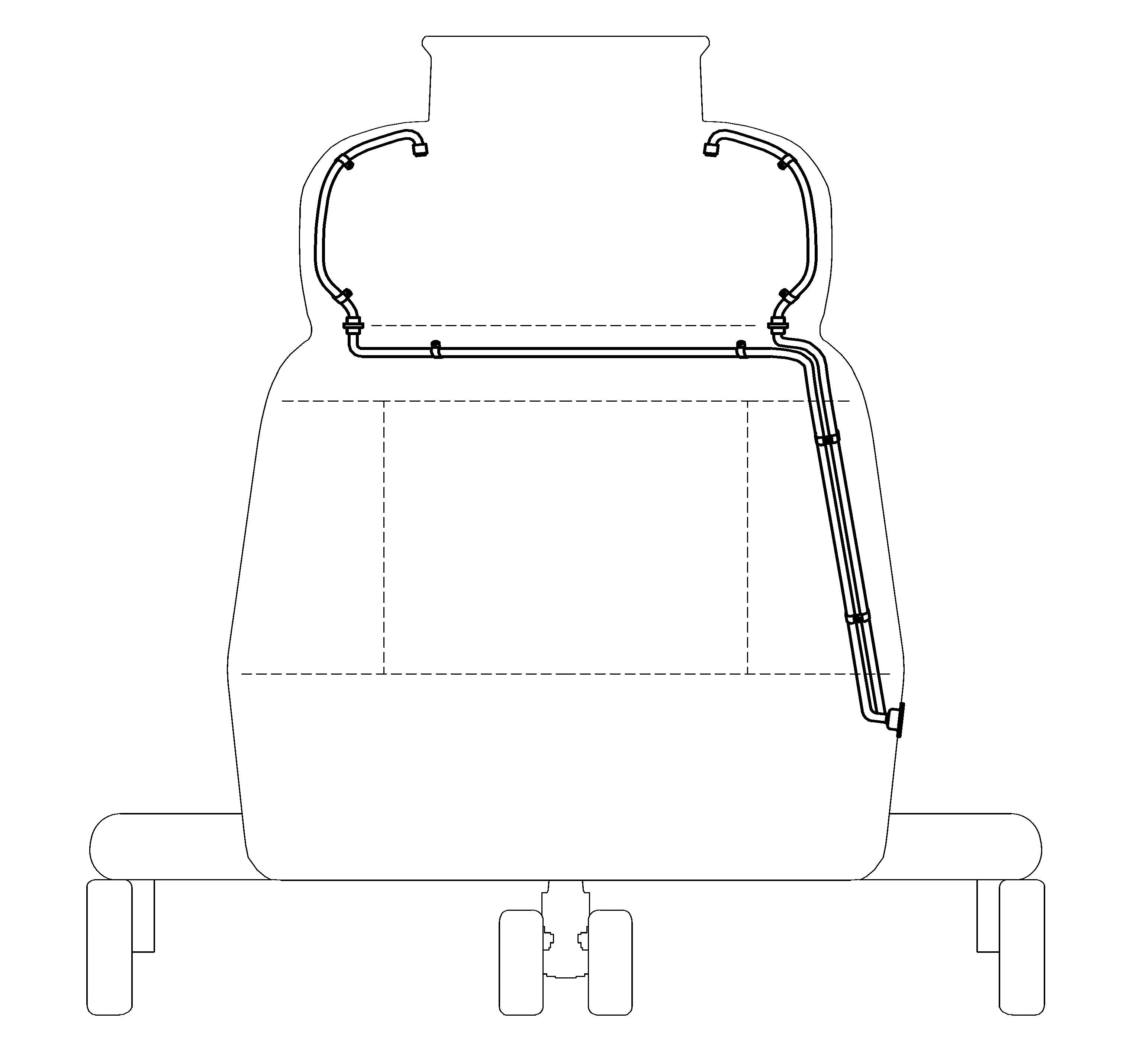

The Engine Wash Kit plumbs into the existing wash fittings, making the engine wash system easily accessible from the ground. *Compatible with existing engine wash kit. 1 kit completes 1 aircraft.

Description

The Engine Wash Kit plumbs into the existing wash fittings, making the engine wash system easily accessible from the ground. *Compatible with existing engine wash kit. 1 kit completes 1 aircraft.

Key Features

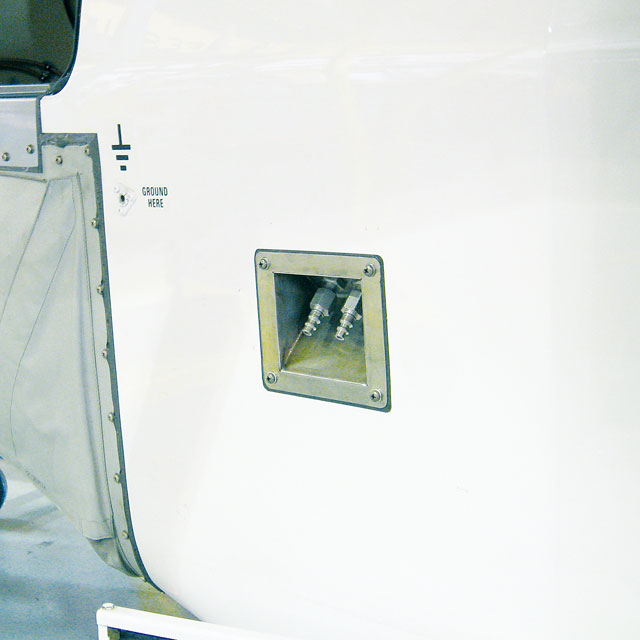

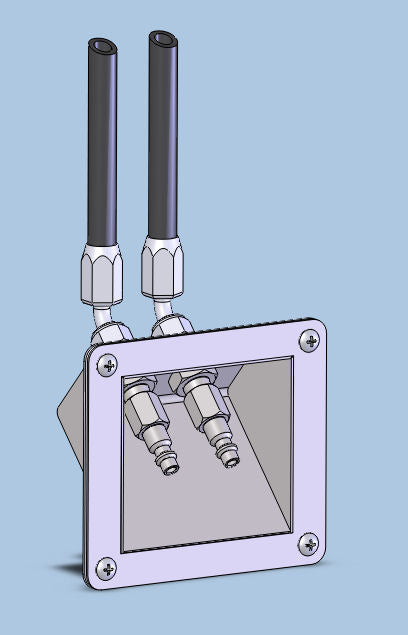

  • A single hose attachment on the fuselage for each engine

Key Benefits

  • Makes the engine wash system accessible from the ground
  • Allows personnel to wash the engines without climbing onto the engine deck
  • Faster engine wash: both engines can be washed from fitting in one convenient location

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-444/2017 AB139/AW139 Maintenance Kit Installations
STC CAAC - China VSTC0869 AB139/AW139 Installation of D139-799 Maintenance Kits
STC DCA - Malaysia VSTC/2022/016 AB139/AW139 Installation of DART D139-799 Maintenance Kits
STC EASA - Europe 10038656, Rev 1 AW139 Maintenance Kit Installations
STC ANAC - Brazil 2012S02-13 AB139/AW139 Maintenance Kit Installations
STC TCCA - Canada LoA C-11-0841 AB139/AW139 Maintenance Kit Installations
STC FAA - USA SR02138SE AB139/AW139 Maintenance Kit Installations

OEM Cross References

N/A

External Warning

Also available, HT-500-CWA compressor wash system. If purchased together, HT-500-CWA-F-3 adapter can be provided FoC to connect the two systems.

Prerequisite

N/A

Compatible With

Existing engine wash kit.

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

20 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 4.40 lbs / 2.00 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
