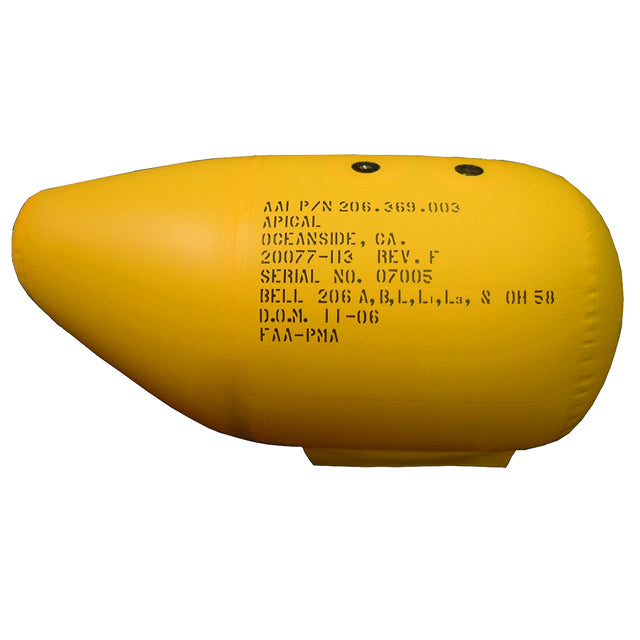

Emergency Float Bags - FWD, MID 206A/B, FWD 206L

Mission Equipment
Part Number: 20077-113
Aircraft Models: Bell - 206A/B;Bell - 206L

Price:
The replacement emergency floats consist of 6 floats (2 Fwd, 2 Mid and 2 Aft). The Fwd and Mid floats consist of 2 separate air-holding chambers. The Aft floats consist of 4 separate air-holding chambers. The chambers are separated by bulkheads made of the same urethane nylon as the float tube to minimize the loss of buoyancy in the event of a puncture tear. Each chamber contains an inlet check valve for inflation by the cylinder/valve assembly and a combination PRV/t... Read more
The replacement emergency floats consist of 6 floats (2 Fwd, 2 Mid and 2 Aft). The Fwd and Mid floats consist of 2 separate air-holding chambers. The Aft floats consist of 4 separate air-holding chambers. The chambers are separated by bulkheads made of the same urethane nylon as the float tube to minimize the loss of buoyancy in the event of a puncture tear. Each chamber contains an inlet check valve for inflation by the cylinder/valve assembly and a combination PRV/topping valve for pressure relief to prevent over-pressurization and to provide a means for manual inflation. *Replaces 206-050-248-107/206-050-248-113. Read less

Description

The replacement emergency floats consist of 6 floats (2 Fwd, 2 Mid and 2 Aft). The Fwd and Mid floats consist of 2 separate air-holding chambers. The Aft floats consist of 4 separate air-holding chambers. The chambers are separated by bulkheads made of the same urethane nylon as the float tube to minimize the loss of buoyancy in the event of a puncture tear. Each chamber contains an inlet check valve for inflation by the cylinder/valve assembly and a combination PRV/topping valve for pressure relief to prevent over-pressurization and to provide a means for manual inflation. *Replaces 206-050-248-107/206-050-248-113.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH96-86 206A/B/206L/206L1/206L3 Replacement Emergency Floats
STC FAA - USA SR00067LA 206A/B/206L/206L1/206L3 Replacement Emergency Floats

OEM Cross References

OEM Replacement / 206-369-003
OEM Replacement / 206-050-248-113
OEM Replacement / 206-050-248-117
OEM Replacement / 206-050-248-107
OEM Replacement / 206-050-248-111

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

1 hr

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 11.00 lbs / 5.00 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
