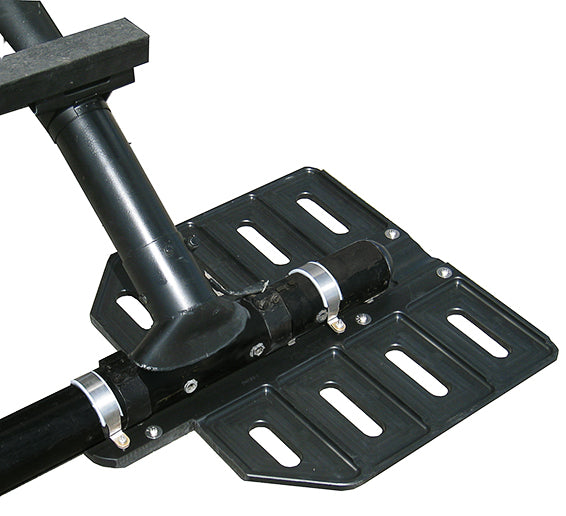

EC145T2/H145 Bearpaws

Mission Equipment
Part Number: D117-1028-011
Aircraft Models: Airbus - EC145

Price:
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; i... Read more
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *24" wide footprint. Price is per aircraft. Read less

Description

For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *24" wide footprint. Price is per aircraft.

Key Features

  • Also available with wearplates
  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • More durable than steel or fiberglass skis
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02508SE EC145T2 Installation of bearpaw
STC EASA - Europe 10060315 EC145T2 Installation of Bearpaw
STC TCCA - Canada C-17-0917 EC145T2 Installation of bearpaw
STC EASA - Europe 10060315 REV. 1 EC145 / EC145T2 / H145D3 Installation of D117-1028-011/-013 bearpaws

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

DART Heavy Duty wearplates, Schwayder wearplates,LICO GHW, OEM hoist guard

Not Compatible With

DART Skidtubes: D117-762-011; LICO Ground Handling Wheels EC145

Flight Restrictions

None

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 22.70 lbs / 10.30 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
