EC145 Cable Cutter System

Mission Equipment
Part Number: 647.1301
Aircraft Models: Airbus - EC145

Price:
The Cable Cutters Kit provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The kits are designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. Similar cable/wire cutting devices have proven to be effective even during multiple wire strikes. The kits incorporate both an upper and lower cutter and each... Read more
The Cable Cutters Kit provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The kits are designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. Similar cable/wire cutting devices have proven to be effective even during multiple wire strikes. The kits incorporate both an upper and lower cutter and each cutter is designed with high strength cutting blades. The DART (Apical) cutter design is tested to verify the capability to cut a cable having a 14,000 lbs tensile strength. The kit contains Skidtube mounted Deflectors and Wiper Deflectors as standard. It also includes everything necessary to install the kit and does not require any previously installed fixed provisions. An optional GPS Antenna Mount Kit is also available, which allows placement on the upper cutter deflector for ideal positioning of the antenna. *For EC145 only. Includes wiper deflectors and skid deflectors. Compatible with existing fixed provisions, if installed. Equivalent to the Magellan kit. Read less

Description

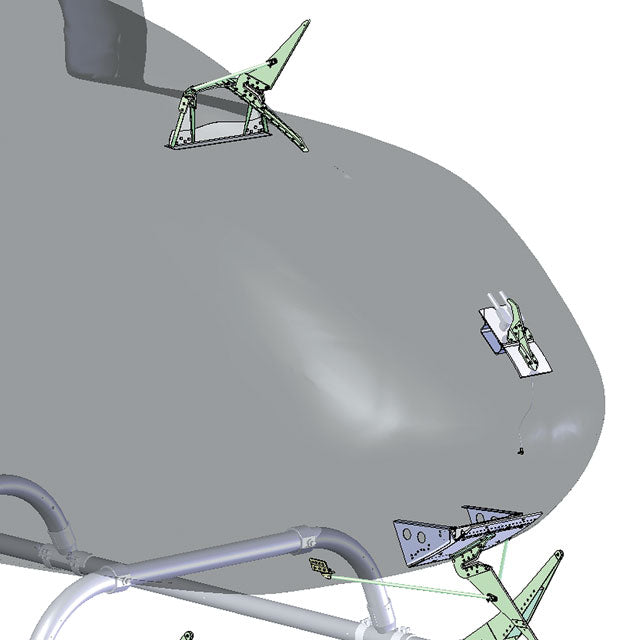

The Cable Cutters Kit provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The kits are designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. Similar cable/wire cutting devices have proven to be effective even during multiple wire strikes. The kits incorporate both an upper and lower cutter and each cutter is designed with high strength cutting blades. The DART (Apical) cutter design is tested to verify the capability to cut a cable having a 14,000 lbs tensile strength. The kit contains Skidtube mounted Deflectors and Wiper Deflectors as standard. It also includes everything necessary to install the kit and does not require any previously installed fixed provisions. An optional GPS Antenna Mount Kit is also available, which allows placement on the upper cutter deflector for ideal positioning of the antenna. *For EC145 only. Includes wiper deflectors and skid deflectors. Compatible with existing fixed provisions, if installed. Equivalent to the Magellan kit.

Key Features

  • Effective during multiple wire strikes
  • Prevents possible wire or cable strike on flight controls

Key Benefits

  • Industrial cutting blades with combined tensile strength of 14,000 lbs / 6,350 kg
  • Includes Wiper Deflectors and Skid Deflectors
  • Lowest acquisition cost
  • Shortest lead time
  • Installation time

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10059427 EC145(BK117C2)/EC145T2 Cable Cutters Kit
STC ANAC - Brazil 2014S10-01 BK117C2(EC145) Cable Cutters Kit
STC TCCA - Canada P-10-0346 BK117C2(EC145)/EC145T2 Cable Cutters Kit
STC FAA - USA SR02290LA BK117C2(EC145)/EC145T2 Cable Cutters Kit

OEM Cross References

OEM Replacement / 965-19202-001

External Warning

Equivalent to the Magellan kit. Kit contains parts with limited shelf life, will ship with a minimum life of 3 months.

Prerequisite

N/A

Compatible With

EC145 only. Existing fixed provisions.

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

35 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 24.00 lbs / 10.89 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
