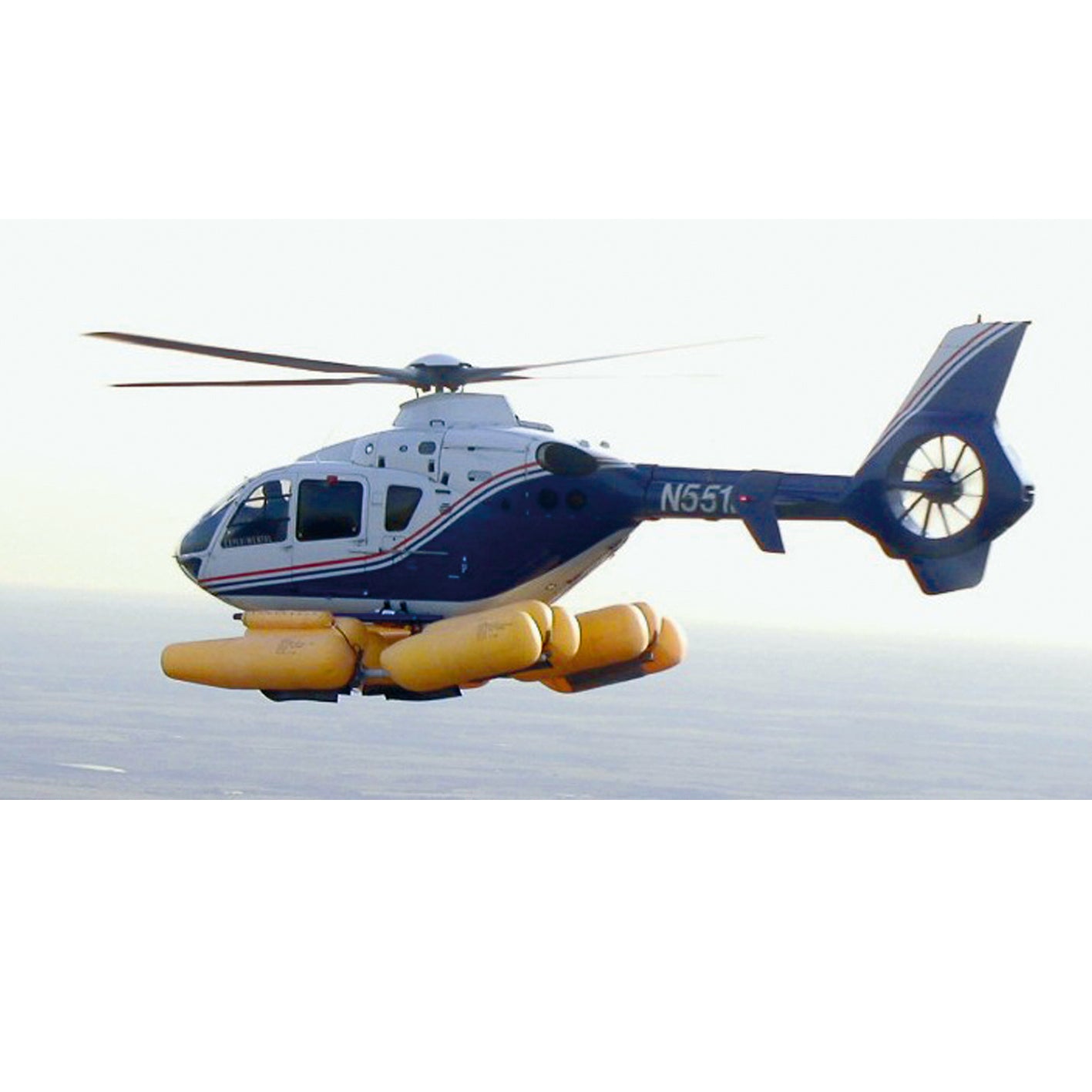

EC135 Tri-Bag Float System w / RH Hoist Guard

Mission Equipment
Part Number: 644.1809
Aircraft Models: Airbus - EC135

Price:
Each kit includes 4 floats manufactured with lightweight urethane-coated nylon fabric. Each float has inlet check valves and combination manual topping/pressure relief valves. One 1105 cu. in. inflation bottle and inflation valve is installed on the underside of the fuselage for float inflation. The float inflation valve is operated either manually by a pull handle mounted on the cyclic stick or electrically by 2 water switches mounted on the underside of the fuselage... Read more
Each kit includes 4 floats manufactured with lightweight urethane-coated nylon fabric. Each float has inlet check valves and combination manual topping/pressure relief valves. One 1105 cu. in. inflation bottle and inflation valve is installed on the underside of the fuselage for float inflation. The float inflation valve is operated either manually by a pull handle mounted on the cyclic stick or electrically by 2 water switches mounted on the underside of the fuselage (optional). Each kit may also contain one 6-man liferaft with survival kit mounted on each forward float and a 550 cu. in. liferaft bottle and inflation valve installed on the underside of the fuselage. The liferaft valve is operated manually by 1 of the 3 T-handles, (1 mounted on the center console and 2 mounted on the Aft landing gear crosstube). *Float only kit with hoist guard on RH Fwd Float. Price is for complete float system. Requires Airbus mid-height landing gear or DART D135-1027-XXX mid-height crosstubes Read less

Description

Each kit includes 4 floats manufactured with lightweight urethane-coated nylon fabric. Each float has inlet check valves and combination manual topping/pressure relief valves. One 1105 cu. in. inflation bottle and inflation valve is installed on the underside of the fuselage for float inflation. The float inflation valve is operated either manually by a pull handle mounted on the cyclic stick or electrically by 2 water switches mounted on the underside of the fuselage (optional). Each kit may also contain one 6-man liferaft with survival kit mounted on each forward float and a 550 cu. in. liferaft bottle and inflation valve installed on the underside of the fuselage. The liferaft valve is operated manually by 1 of the 3 T-handles, (1 mounted on the center console and 2 mounted on the Aft landing gear crosstube). *Float only kit with hoist guard on RH Fwd Float. Price is for complete float system. Requires Airbus mid-height landing gear or DART D135-1027-XXX mid-height crosstubes

Key Features

  • Includes inflation hoses, pull cables, miscellaneous clamps, brackets, and mounting hardware associated with installation
  • Inspections at 18 months (instead of 12)
  • Exchange program available
  • All valves are field replaceable
  • Certified to a gross weight of 2,980kg

Key Benefits

  • Approved for ditching
  • Lower maintenance costs due to longer inspection cycles
  • Reduced installation time (40 hrs)
  • No life limit on inflatables (Floats & Liferafts)
  • Also available: - 606.7803 Float System Pull Cable Test Tool - Integrated liferaft

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2011S06-10 EC135P1/EC135P2/EC135P2+/EC135P3/EC135T1/EC135T2/EC135T2+/EC135T3 Tri-Bag Emergency Float System
STC EASA - Europe 10016829 Rev. 2 EC135P1/EC135P2/EC135P2+/EC135P3/EC135T1/EC135T2/EC135T2+/EC135T3 Tri-Bag Emergency Float System
STC KOCA - Korea KTCV201103A EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Tri-Bag Emergency Float System
STC TCCA - Canada P-06-0312 EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Tri-Bag Emergency Float System
STC FAA - USA SR01855LA EC135P1/EC135P2/EC135P2+/EC135P3/EC135T1/EC135T2/EC135T2+/EC135T3 Tri-Bag Emergency Float System
STC ECAA - Egypt STCV-01/2007 EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Tri-Bag Emergency Float System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

Step P/Ns L321C1050101 and L321C1050102

Not Compatible With

N/A

Flight Restrictions

Max. Airspeed of Inflation: 80 KIAS Max. Airspeed with Floats Inflated: 80 KIAS

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 136.30 lbs / 61.82 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
