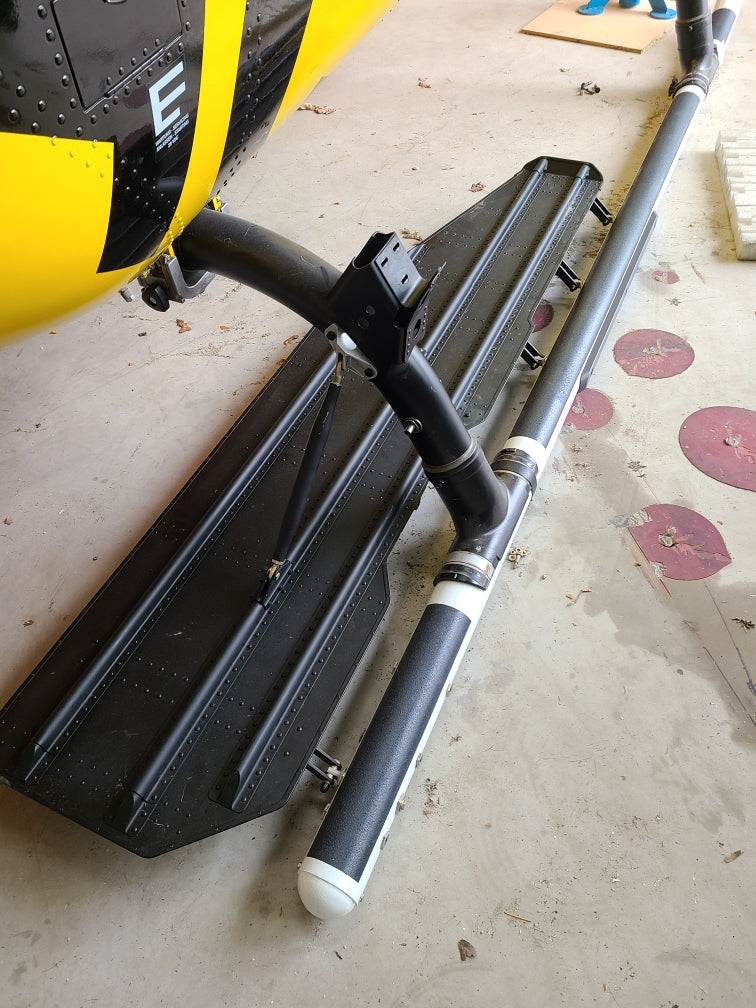

EC135 Replacement Wearplates for Standard Skidtubes Fit LH or RH


Part Number: D135-751-043

Aircraft Models: Airbus - EC135

  • In stock
DART's traditional wearplates are designed for durability under normal wear conditions. The Stainless Steel Wearplates are compatible on DART Standard Skidtubes. *Includes 4 full-length Stainless Steel wearplates & 2 additional wearplates at the saddle locations. Saddle wearplates and AFT most wearplate are tungsten carbide welded. For installation on DART D135-751-011 Standard Skidtubes. Price is per skidtube.

Key Features

  • Includes full-length stainless steel wearplates with tungsten carbide welds
  • LH/RH interchangeable
  • Compatible on DART skidtubes

Key Benefits

  • Full-length stainless steel wearplates with tungsten carbide welds
  • Reduced inventory of spares (wearplates are not handed)
  • Easy wearplate installation and removal for inspection/replacement

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01278, Rev 1 EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ D135-751 Approved OEM Replacement Skidtube
STC FAA - USA SR01709SE EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ D135-751 Approved OEM Replacement Skidtube
STC TCCA - Canada LoA RDIMS-9661680-v1 EC135P1/EC135P2/EC135P2+/EC135T1/EC135T2/EC135T2+ Installation of Skidtube and Skidtube Extension

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
