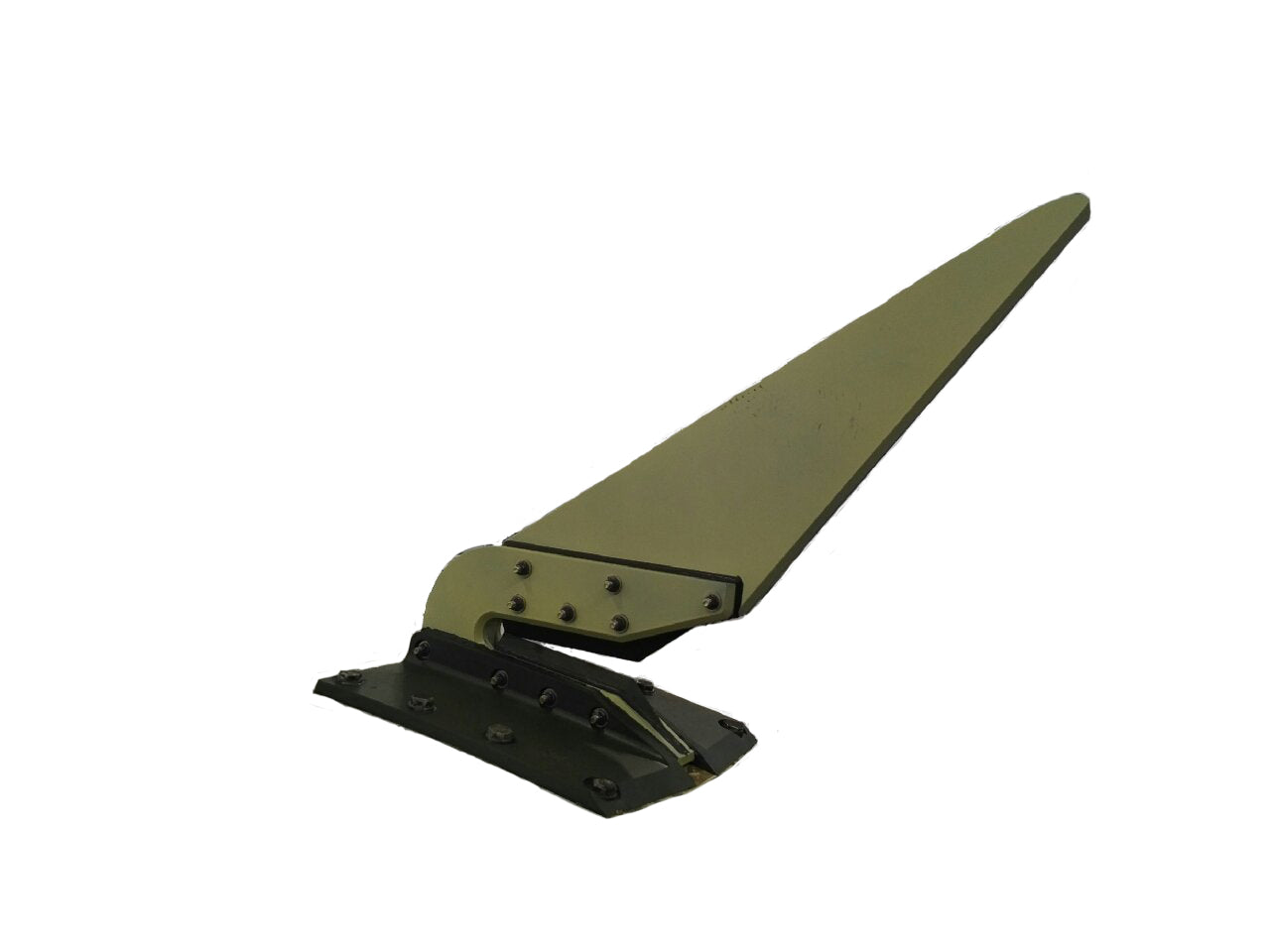

EC130T2/H130 Cable Cutter System - Full Kit

Mission Equipment
Part Number: D130-1046-013
Aircraft Models: Airbus - EC130

Price:
Login to see prices and leadtimes
The Cable Cutters System provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The system is designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. This design has proven to be effective even during multiple wire strikes. The system incorporates both an upper and lower cutter assemblies and each is de... Read more
The Cable Cutters System provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The system is designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. This design has proven to be effective even during multiple wire strikes. The system incorporates both an upper and lower cutter assemblies and each is designed with high strength cutting blades. *Includes removable provisions for upper & lower cable cutter and fixed provisions for upper & lower cutter. Compatible on H130/EC130T2 only. Completes one aircraft. Read less

Description

The Cable Cutters System provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The system is designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. This design has proven to be effective even during multiple wire strikes. The system incorporates both an upper and lower cutter assemblies and each is designed with high strength cutting blades. *Includes removable provisions for upper & lower cable cutter and fixed provisions for upper & lower cutter. Compatible on H130/EC130T2 only. Completes one aircraft.

Key Features

  • Tested to cut cables with 14,000 lbs / 6,350 kg tensile strength
  • Includes upper & lower cutter assemblies

Key Benefits

  • Enhanced safety: prevents possible wire or cable strike on flight controls
  • Effective during multiple wire strikes
  • Compatible with factory installed fixed provisions
  • Shortest lead time
  • Lowest acquisition cost

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada LoA C-18-0702 EC130B4/EC130T2 Installation of cable cutters
STC FAA - USA SR02609SE EC130B4/EC130T2 Installation of cable cutters
STC EASA - Europe 1006752 EC130B4/EC130T2 Installation of Cable Cutters
STC ANAC - Brazil 2021S09-01 EC130B4/EC130T2 Installation of cable cutters

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Customer Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 11.8 lbs / 5.4 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
