EC130 Heli-Utility-Basket™ - Airframe Mount, Fits LH or RH

Part Number: D130-701-043
Aircraft Models: Airbus - EC130
Price:

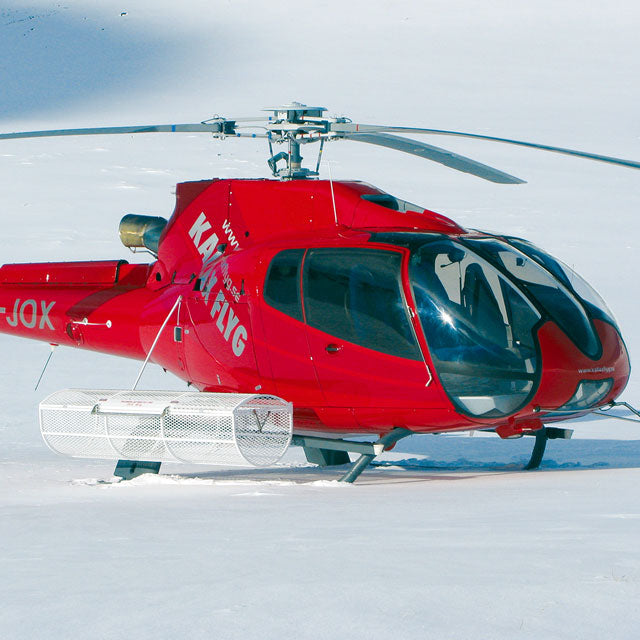

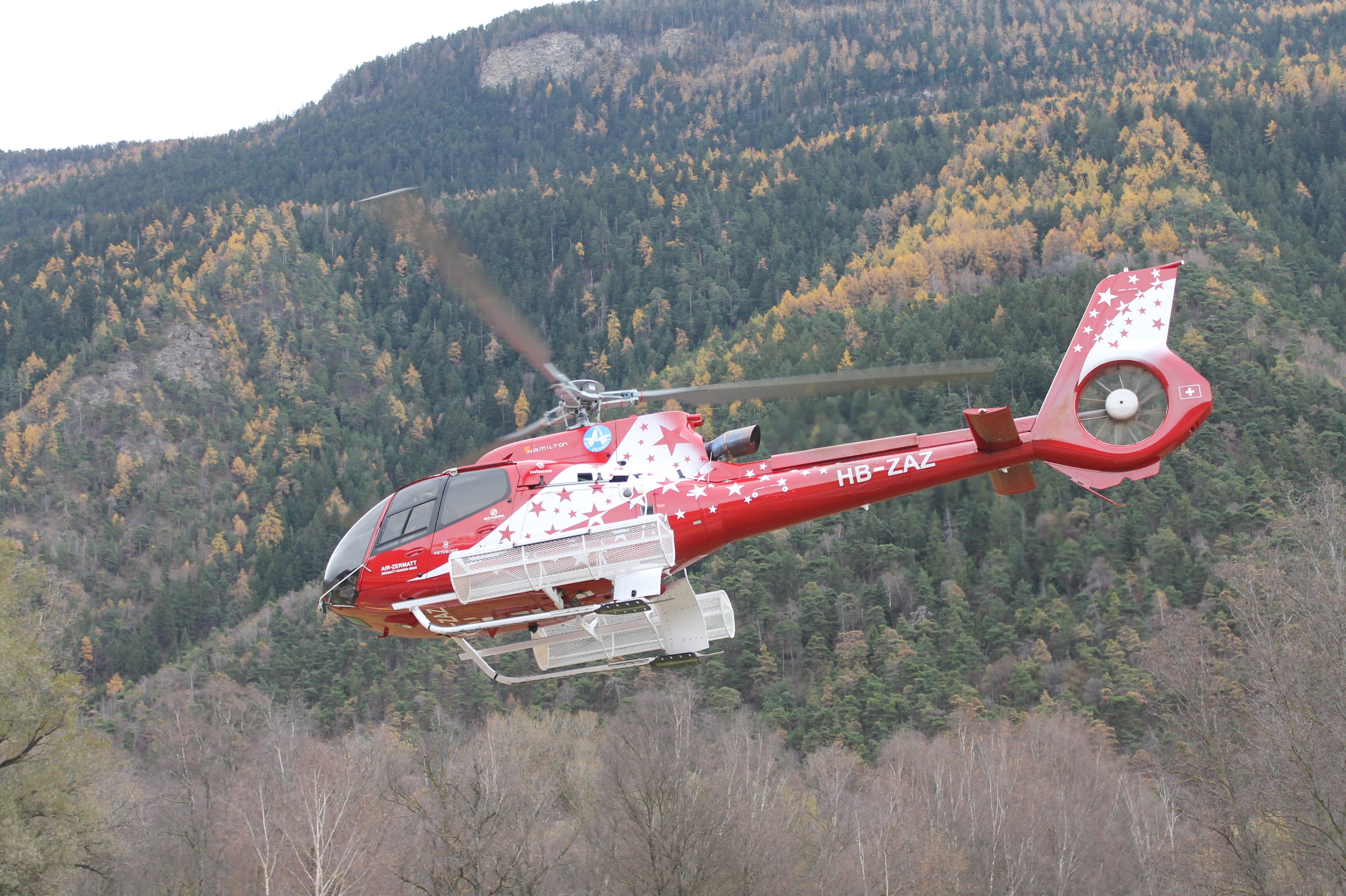

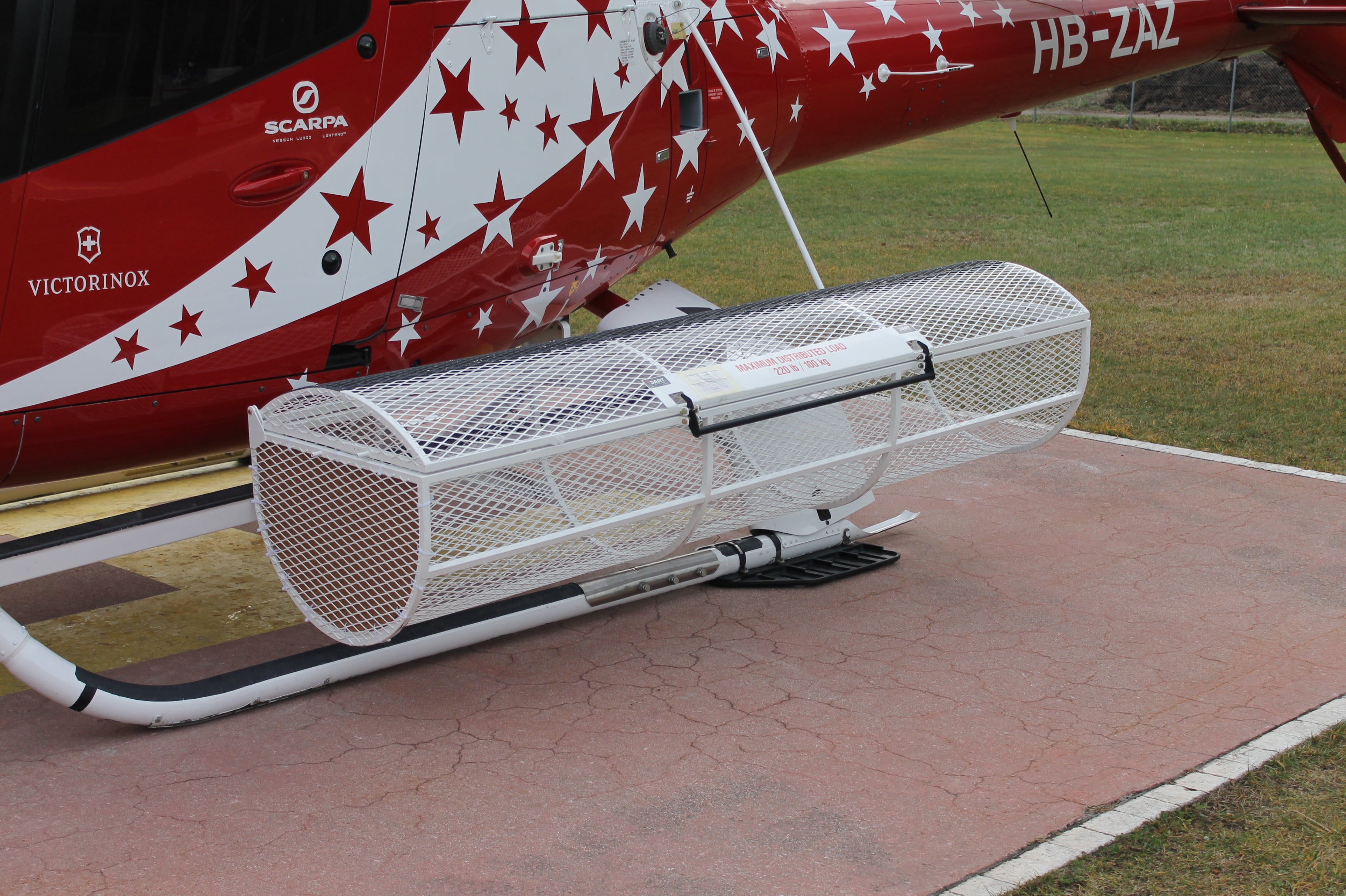

The DART Heli-Utility-Basket™ design enables the operator to remove and install the basket quickly, with limited tooling. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step or as a work platform and is attached usin... Read more
The DART Heli-Utility-Basket™ design enables the operator to remove and install the basket quickly, with limited tooling. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Includes fixed provisions. Compatible with DART Spacepods™ and OEM baggage compartment extenders, with sliding door and DART sliding door hinge kit and OEM steps. Compatible with Cargo Hook. Not compatible with floats. VNE restriction 133 kias (minus 3 kias per 1000' altitude). Price is per side. Read less

Description

The DART Heli-Utility-Basket™ design enables the operator to remove and install the basket quickly, with limited tooling. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Includes fixed provisions. Compatible with DART Spacepods™ and OEM baggage compartment extenders, with sliding door and DART sliding door hinge kit and OEM steps. Compatible with Cargo Hook. Not compatible with floats. VNE restriction 133 kias (minus 3 kias per 1000' altitude). Price is per side.

Key Features

  • Self-locking handle
  • Includes prop arm, also available with automatic lid opener
  • Durable scratch resistant finish
  • Easy bolt on installation
  • Quick release pip pin attachment

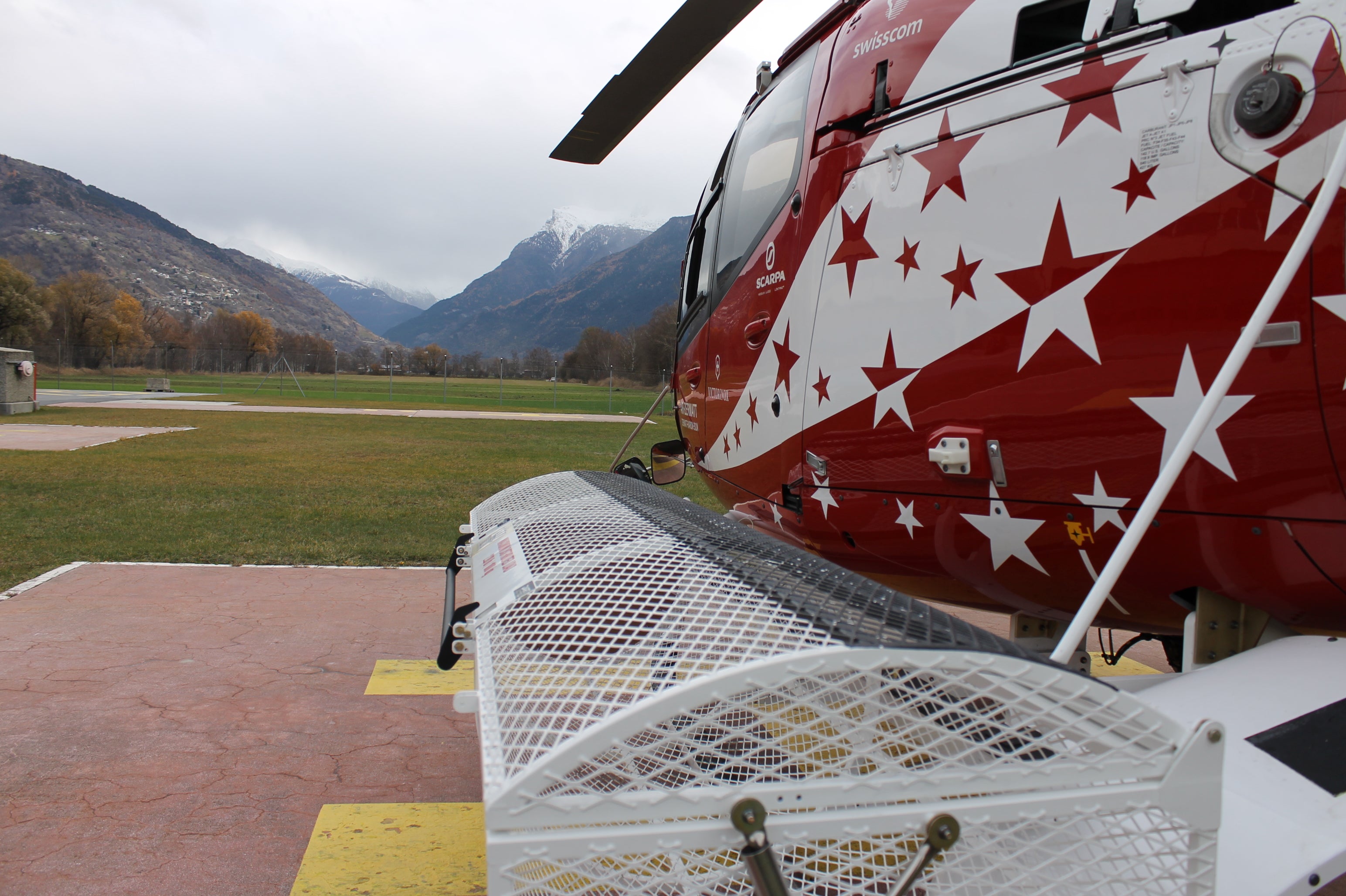

  • Heavy duty lid doubles as a step or walkway for maintenance

Key Benefits

  • Easy to re-install and remove in minutes
  • Corrosion-resistant stainless steel construction
  • Approved to be flown on left-hand, right-hand or both sides simultaneously
  • Improved installation: now compatible with cargo hook use
  • Does not impede access to the cargo doors
  • Allows unobstructed passenger egress
  • Fixed provisions also available separately for easy transfer
  • Doors can be opened in flight on the opposite side of basket installation

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DCA - Malaysia VSTC/2020/017 AS350B/AS350B2/AS350B3/AS350BA/AS355F1/AS355F2/AS355NP/EC130T2 Heli Utility Basket
STC JCAB - Japan STC-512-OSA EC130T2 Approval for the EC130 B4/T2 Cargo basket
STC CAAC - China VSTC0977A AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli-Utility-Basket and Long Cargo Tube Installation
STC DGAC – Ecuador ACTS-20-005 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli Utility Basket
STC EASA - Europe 10016996 Rev. 3 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Basket Installation
STC ANAC - Brazil 2007S03-03 AS350B1/AS350B2/AS350B3/AS350BA/EC130B4 Heli-Utility-Basket
STC IAC AR - Russia CT107-350 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 Bearpaw, Basket & Auxiliary Fuel Tank Installations
STC TCCA - Canada SH94-14 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli-Utility-Basket and Long Cargo Tube Installation
STC FAA - USA SR00213NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli-Utility-Basket and Long Cargo Tube Installation

OEM Cross References

N/A

External Warning

DSI 9738 modifies fairings to eliminate the need to remove fairings in order to drop the cowl for maintenance.

Prerequisite

N/A

Compatible With

EC130B4; EC130T2; Eurocopter Squirrel Cheeks; Cargo Hook; Spacepods: D130-780-041/D130-780-042 ; Sliding Door Hinge Kit: D130-780-011; OEM Steps; OEM Belly Cowling

Not Compatible With

Floats

Flight Restrictions

VNE restricted to 133 kias (1 basket) or 125 kias (2 baskets). Doors on the side of aircraft with basket installed cannot be opened in flight.

Installation Time

20 hrs

Dimensions And Weight

  • Length: 96" / 2.4m
  • Width: 23.5" / 0.60m
  • Weight Display: 130.0 lbs / 59.0 kg

Load Capacity And Volume

  • Volume: 17.6 ft3 / 0.50 m3
  • Load Capacity: 220 lbs / 99.8 kg
