EC130/H130 Bearpaws

Mission Equipment
Part Number: D130-700-011
Aircraft Models: Airbus - EC130

Price:
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; i... Read more
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Price is per aircraft. Read less

Description

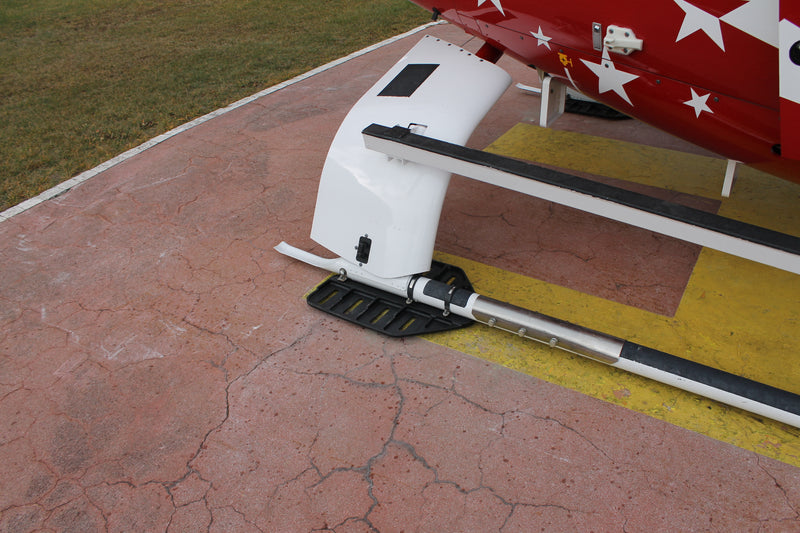

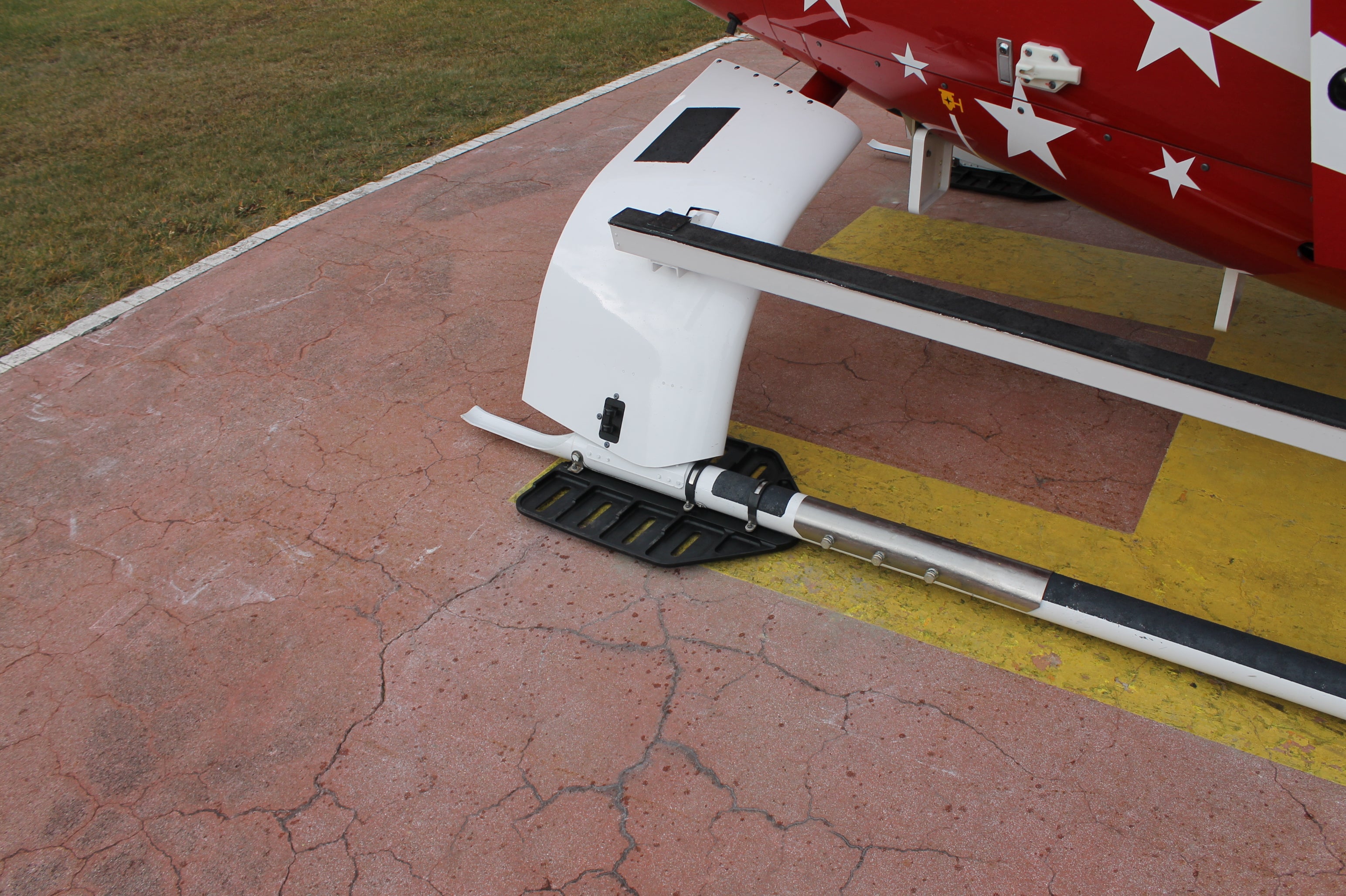

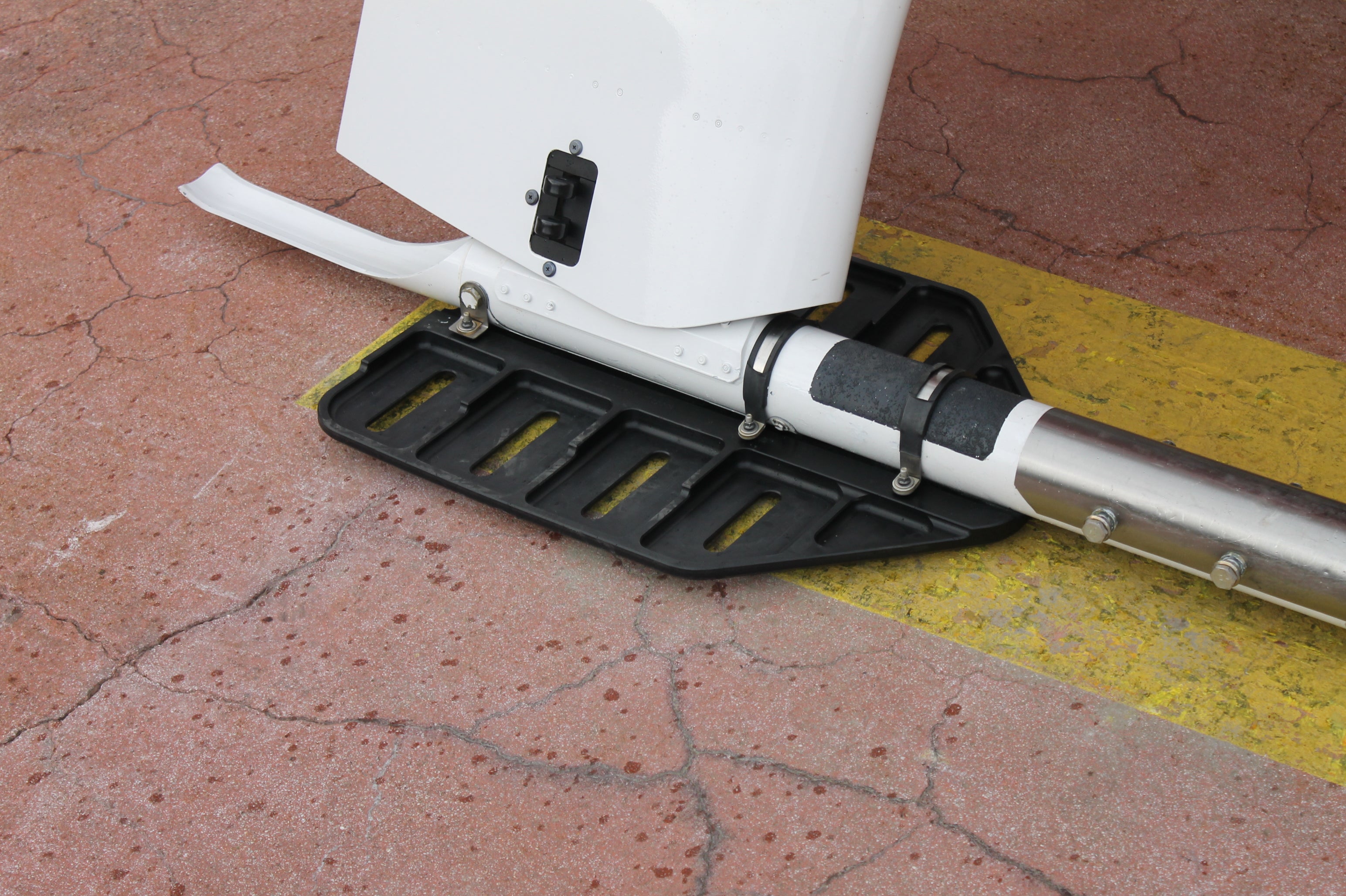

For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Price is per aircraft.

Key Features

  • Wearplates available
  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • More durable than steel or fiberglass skis
  • Optional wearplates provide anti-slip and wear protection
  • Optional wearplates ease installation of bearpaws
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-511-OSA EC130T2 Approval for the EC130 B4/T2 Bear Paw Installation
STC EASA - Europe 10016984, Rev. 2 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Bearpaw Installation
STC IAC AR - Russia CT107-350 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 Bearpaw, Basket & Auxiliary Fuel Tank Installations
STC TCCA - Canada SH93-4 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Bearpaw Installation
STC FAA - USA SR00028NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4/EC130T2 Bearpaw Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

None

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 12.50 lbs / 5.67 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
