Description

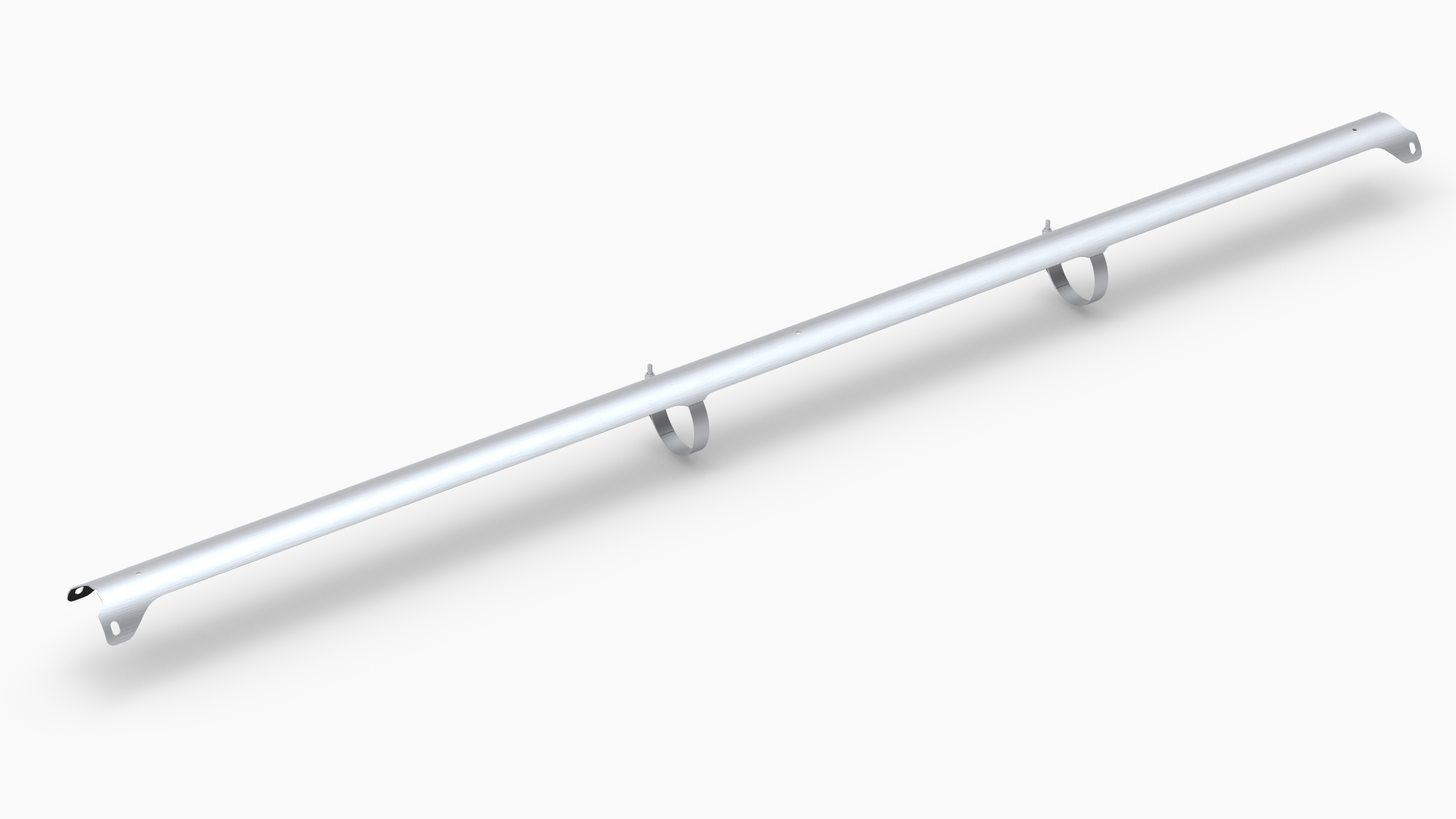

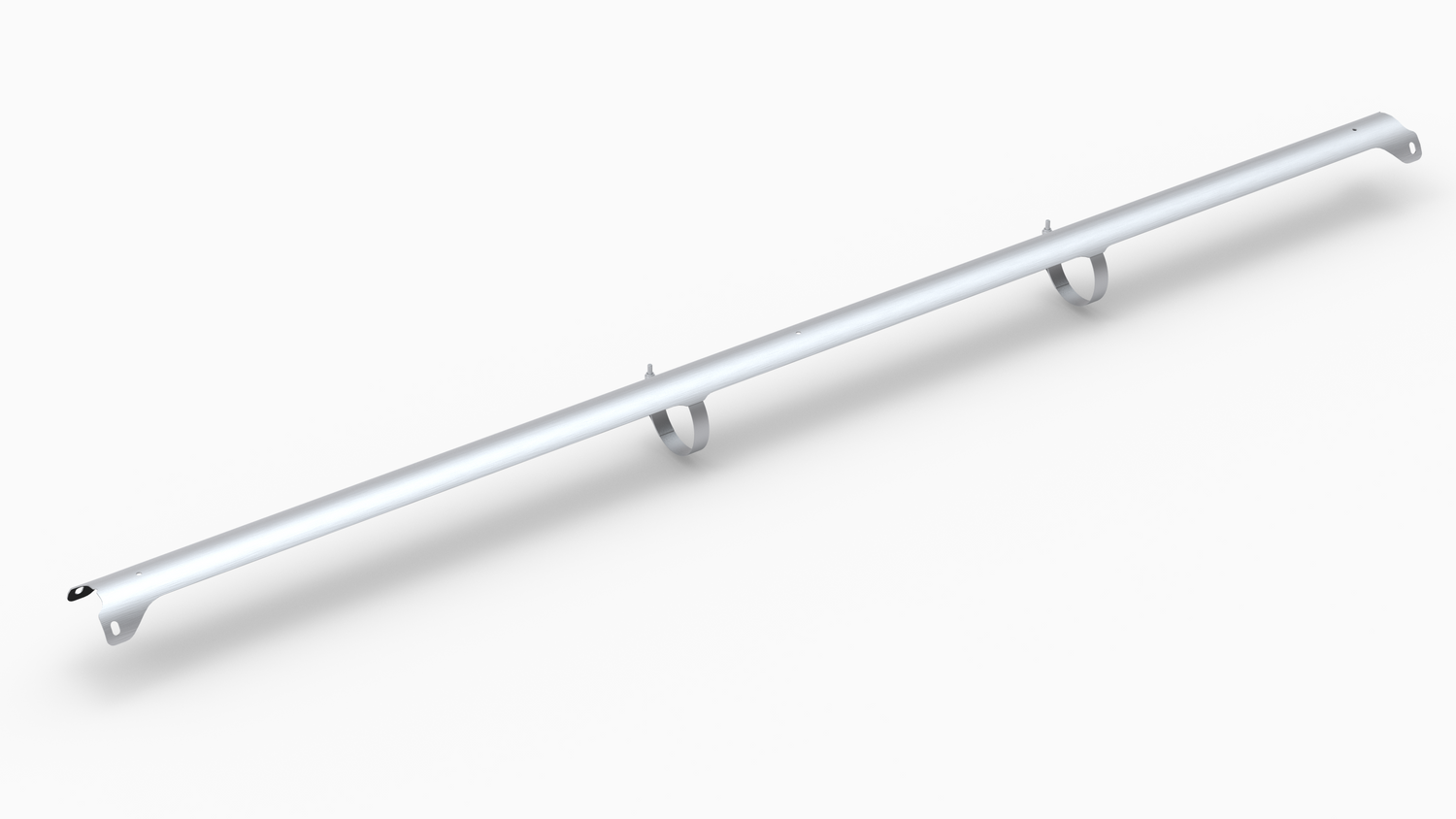

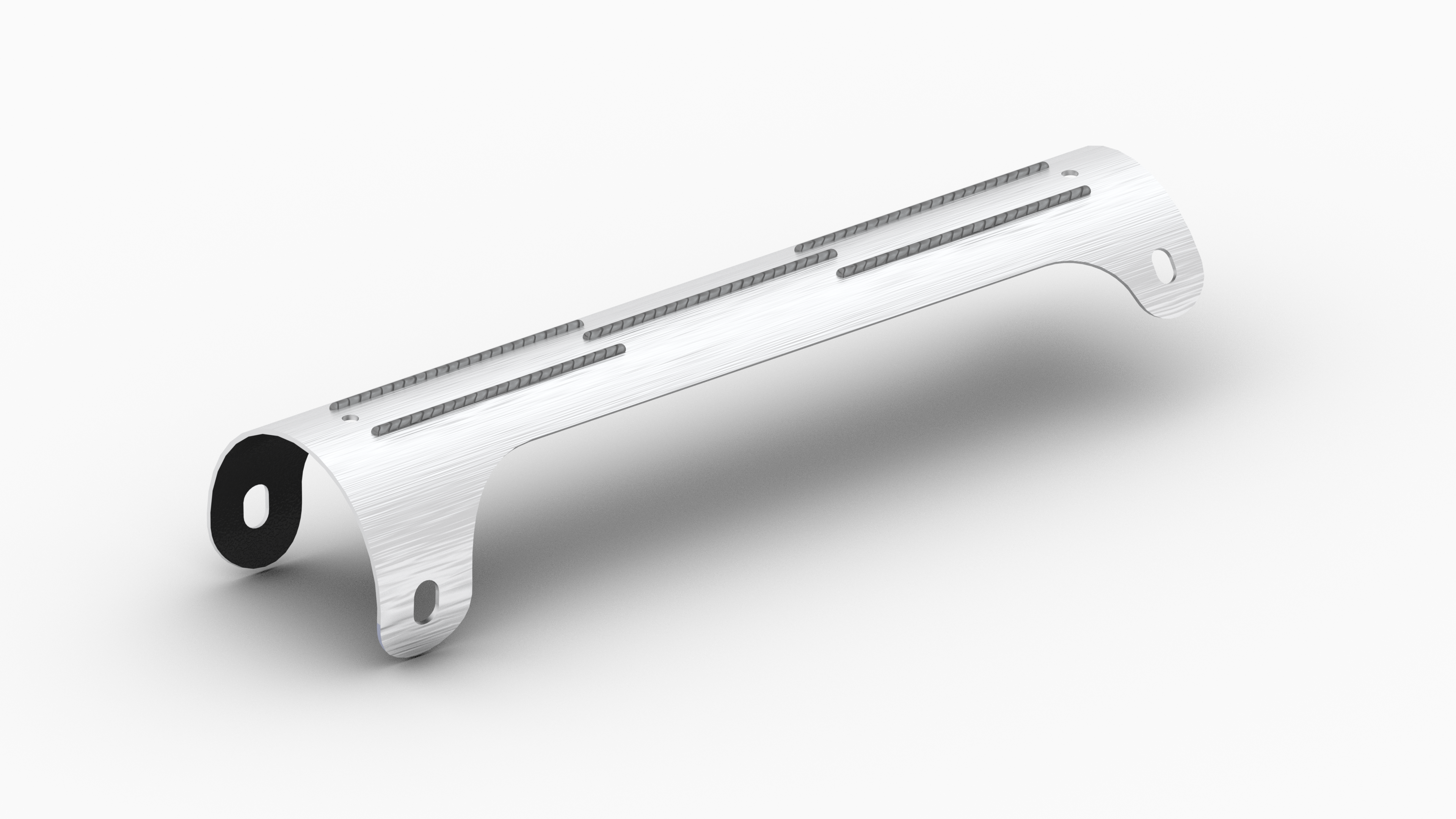

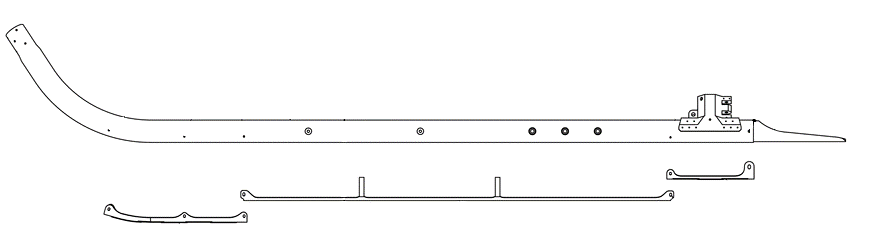

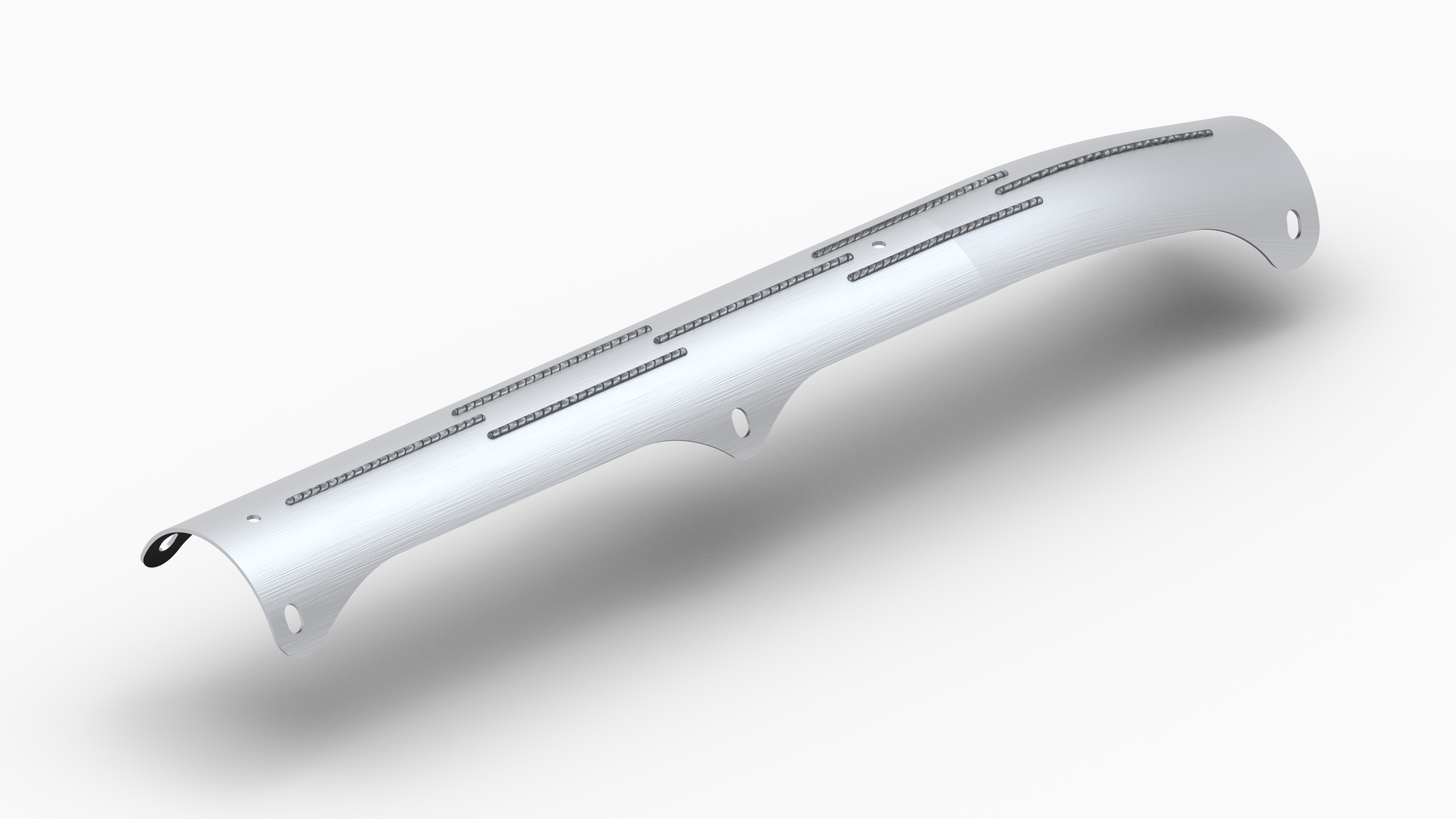

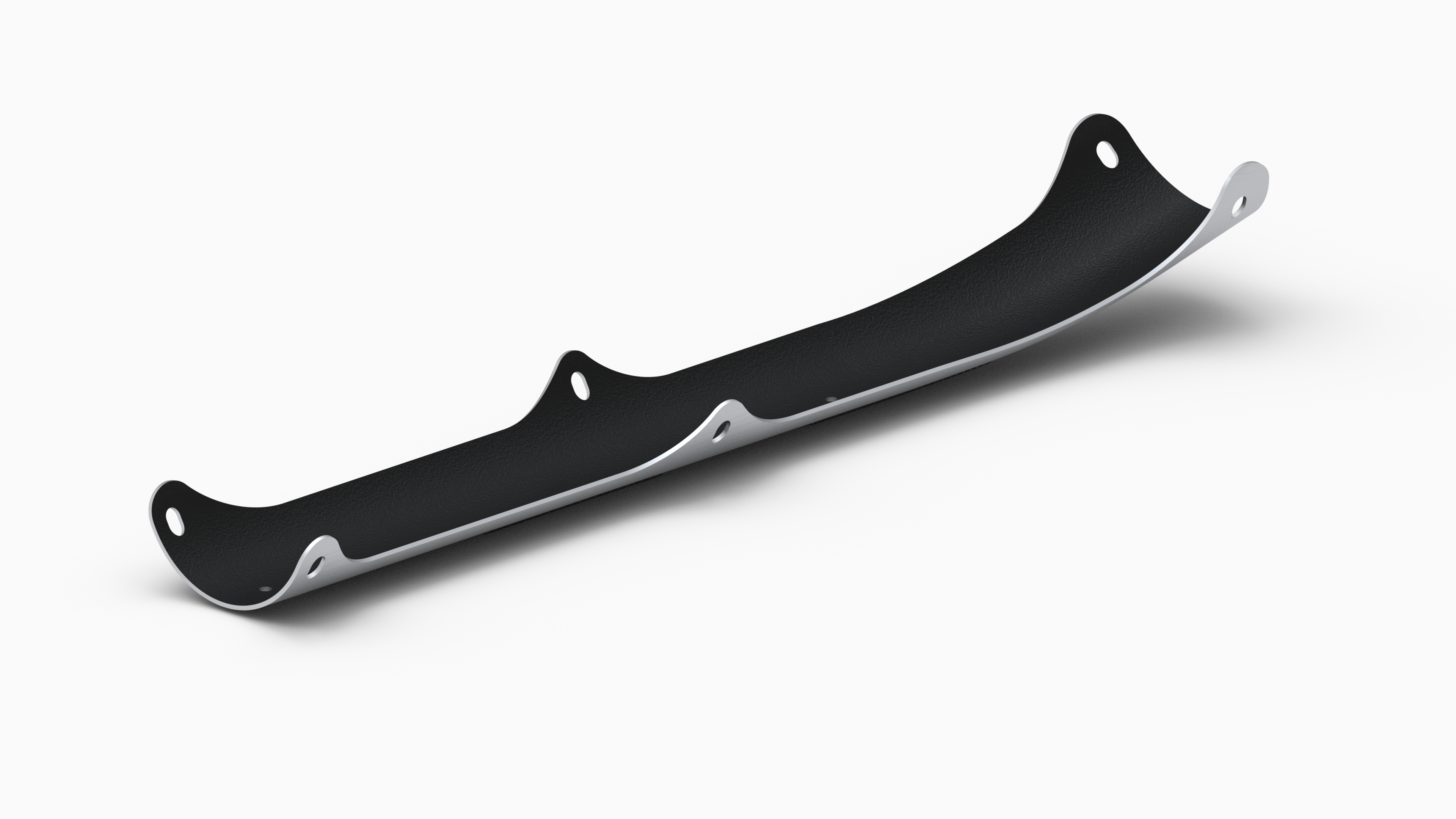

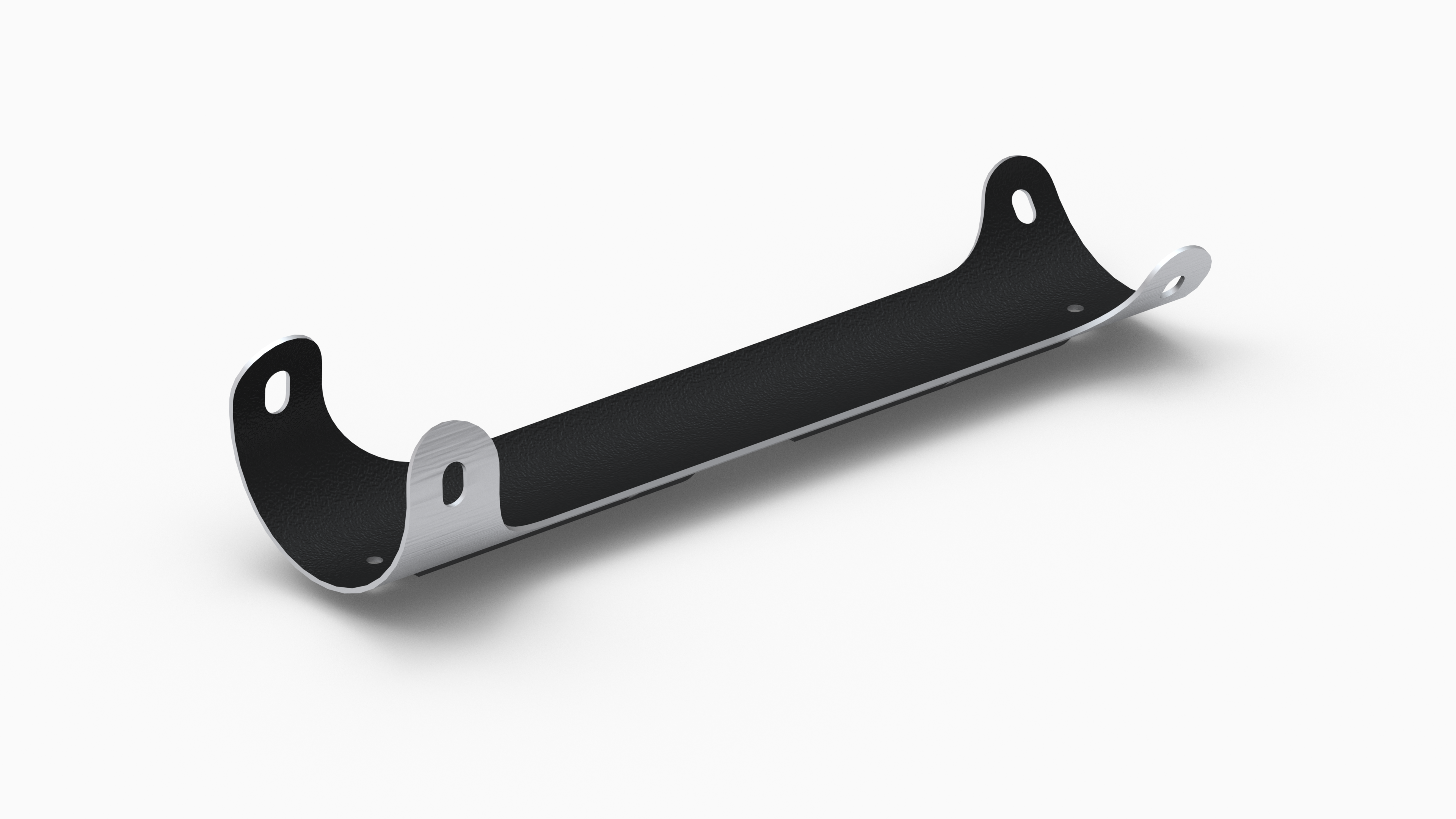

DART OEM Replacement Wearplates are a direct alternate to OEM Wearplates configuration. This Full-Length configuration provides additional protection to the midtube section. This kit consists of 1 fwd wearplates (D5618-1), 1 mid wearplate (D5632-041) and 1 aft wearplates (D5619-1).
*Kit completes 1 Skidtube. Replaces Airbus p/n EC120-2000-13, EC120-2000-15 and provides exclusive midtube protection.
Key Features
- Install on OEM Skidtubes with existing inserts and clamps in mid-section
- Stainless steel construction with carbide welds
- Rockguard rubberized inner finish to prevent corrosion
- Includes FWD, MID & AFT Wearplates
Key Benefits
- Direct OEM Replacement
- Full-Length protection reduces premature Skid replacement
- No drilling or inserts addition required
- Easy to Install
- Readily Available
- Competitive Pricing
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.01452 | EC120B | Replacement Wearplates & Wearpads |
| STC | TCCA - Canada | SH01-25 | EC120B | Replacement Wearplates & Wearpads |
| STC | FAA - USA | SR01347NY | EC120B | Replacement Wearplates & Wearpads |
