EC120 - OEM Replacement Wearplates - Heavy-Duty Full-Length, LH


Part Number: D120-639-043

Aircraft Models: Airbus - EC120

  • In stock

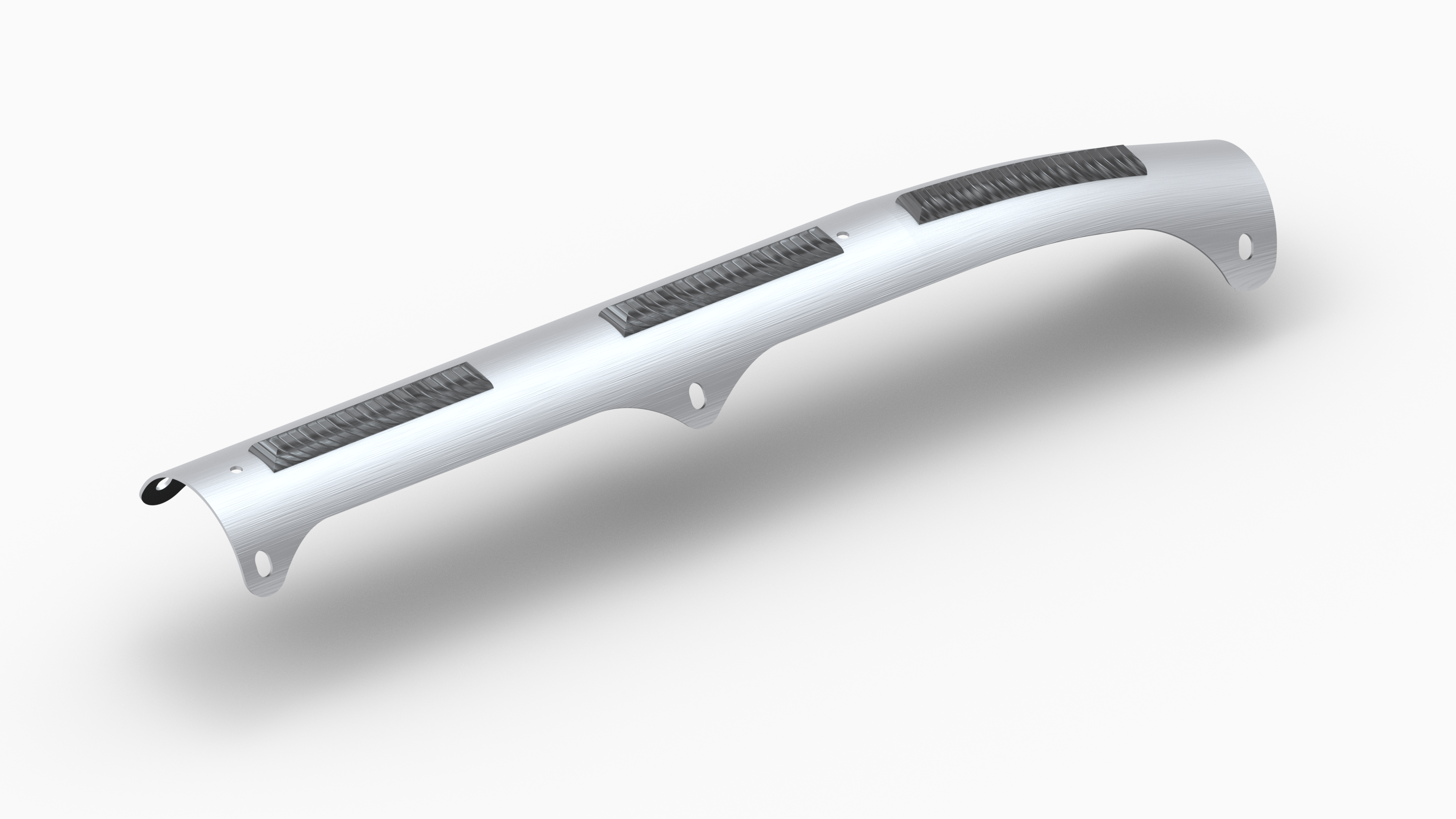

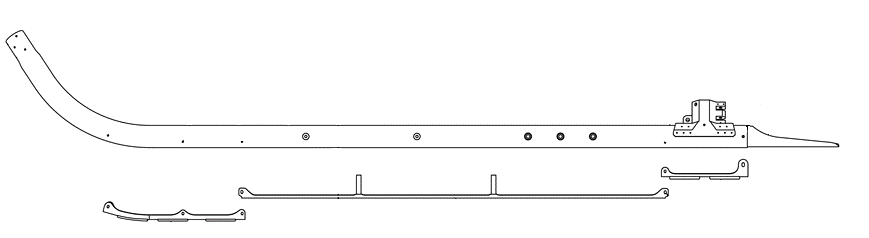

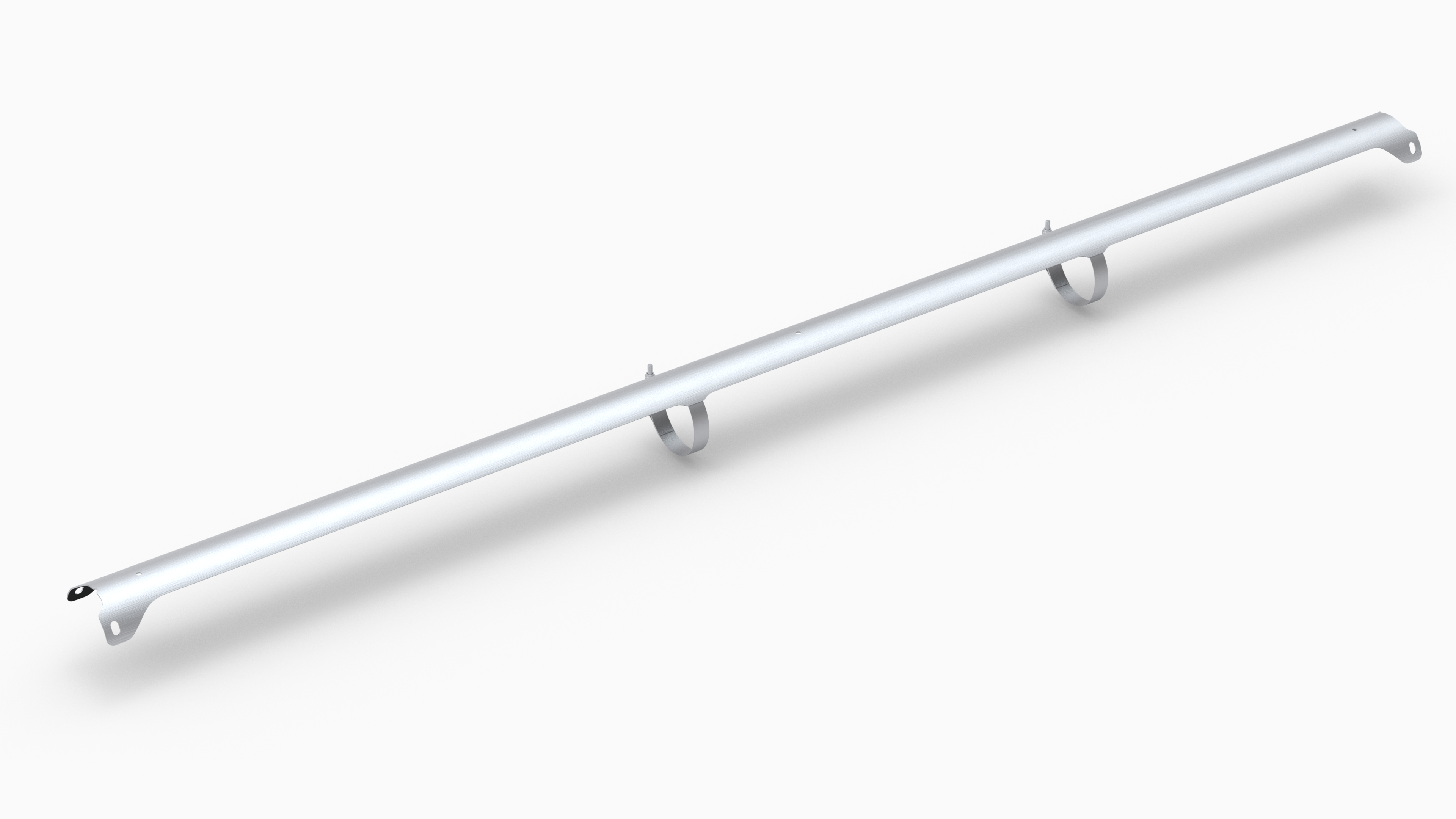

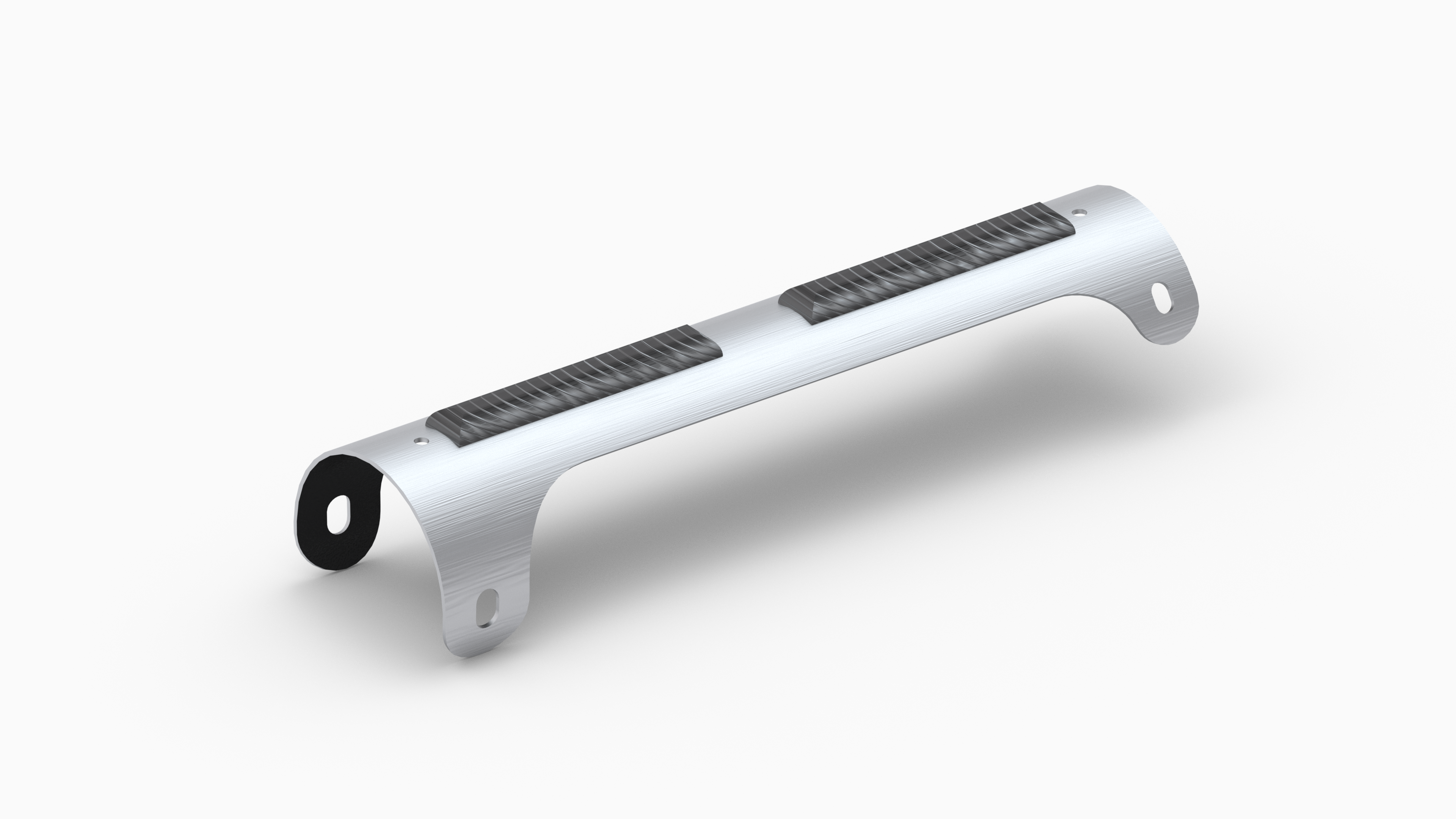

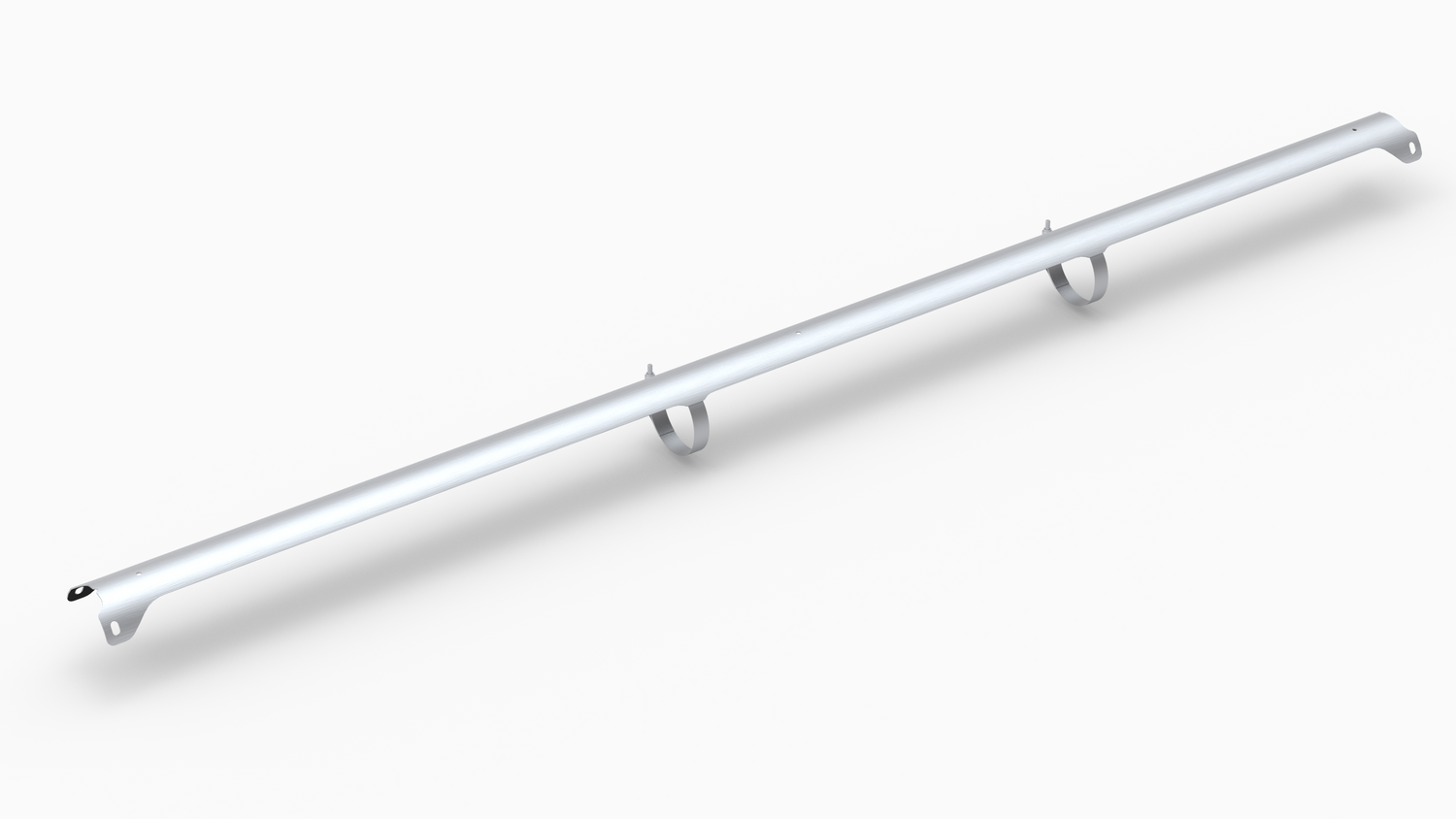

DART OEM Replacement Wearplates are a heavy-duty alternate to OEM Wearplates configuration. This Full-Length configuration provides additional protection to the midtube section. This kit consists of 1 fwd wearplates (D5618-3), 1 mid wearplate (D5632-041) and 1 aft wearplates (D5619-3). *Kit completes 1 Skidtube. Replaces Airbus p/n EC120-2000-13, EC120-2000-15 and provides exclusive midtube protection.

Key Features

  • Install on OEM Skidtubes with existing inserts and clamps in mid-section
  • Stainless steel construction with generous tungsten carbide welds

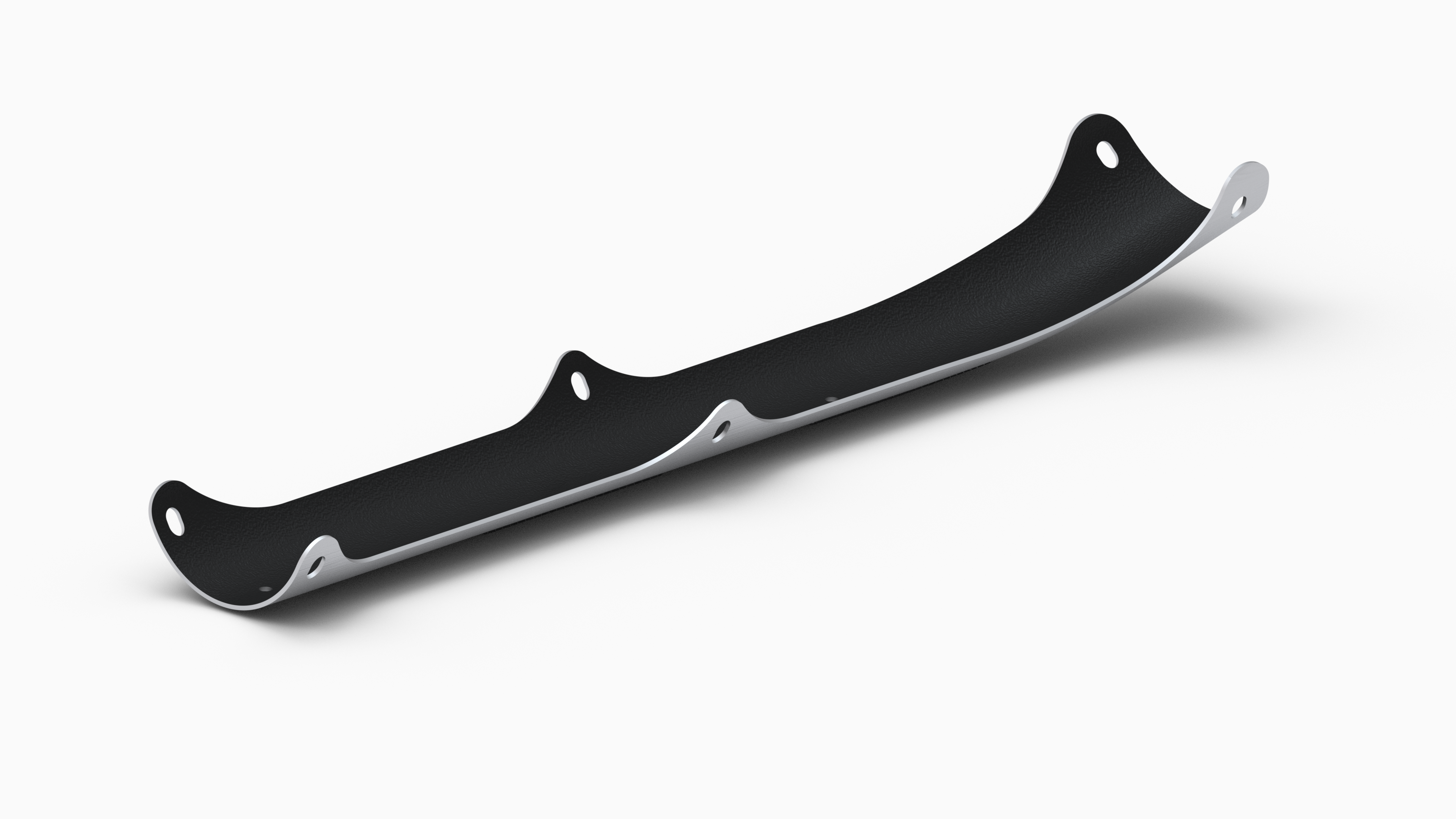

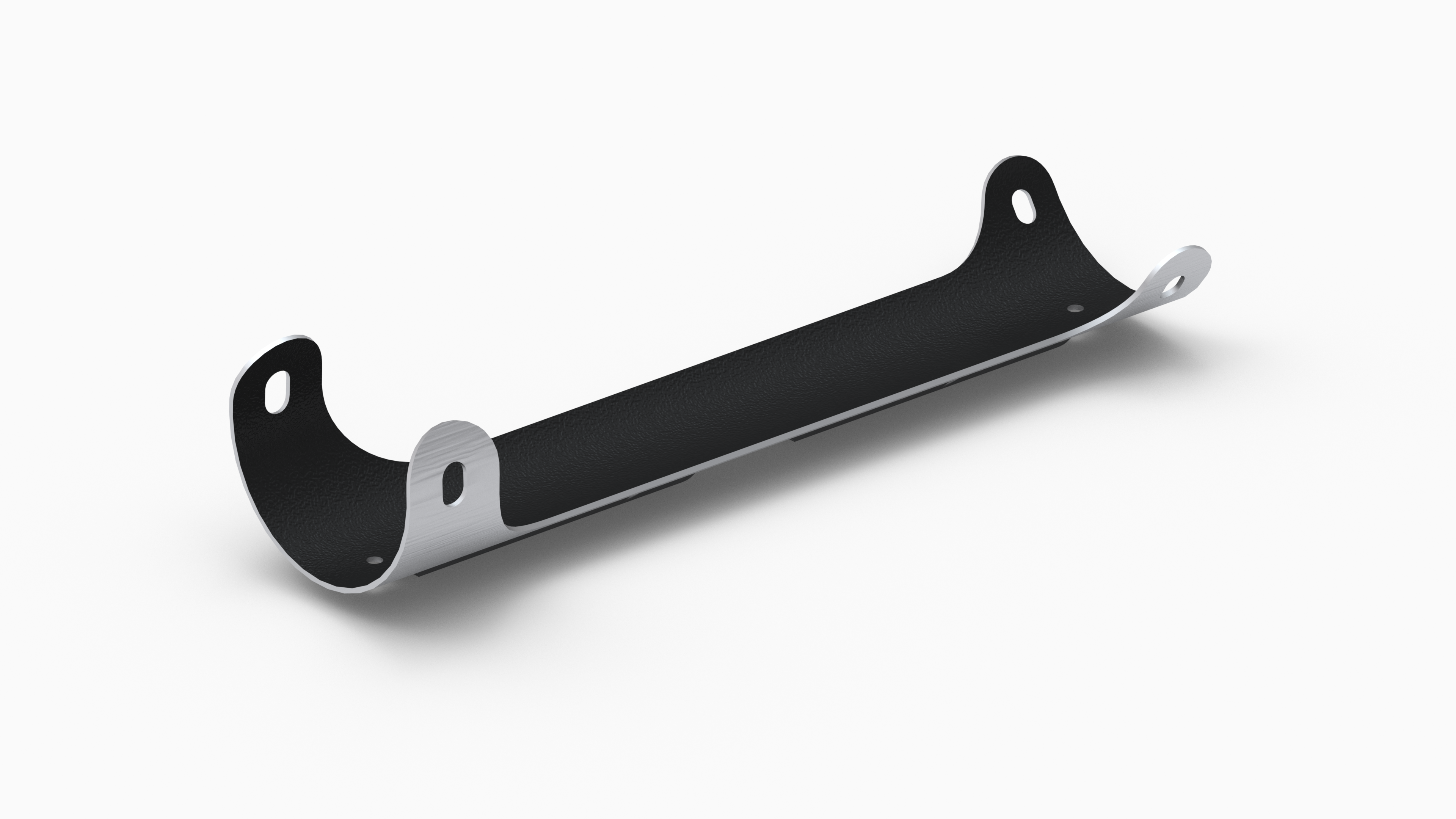

  • Rockguard rubberized inner finish to prevent corrosion
  • Includes FWD, MID & AFT Wearplates

Key Benefits

  • Direct OEM Replacement
  • Ideal for training operations
  • Full-Length protection reduces premature Skid replacement
  • Heavy-duty option provides maximum durability
  • No drilling or inserts addition required
  • Easy to Install
  • Readily Available
  • Competitive Pricing

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01452 EC120B Replacement Wearplates & Wearpads
STC TCCA - Canada SH01-25 EC120B Replacement Wearplates & Wearpads
STC FAA - USA SR01347NY EC120B Replacement Wearplates & Wearpads

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 4.4 lb / 2.0 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
