EC 225LP, H225 Skycannon™ - High-Rise Firefighting System


Part Number: 516-000000-003

Aircraft Models: Airbus - EC225

  • In stock

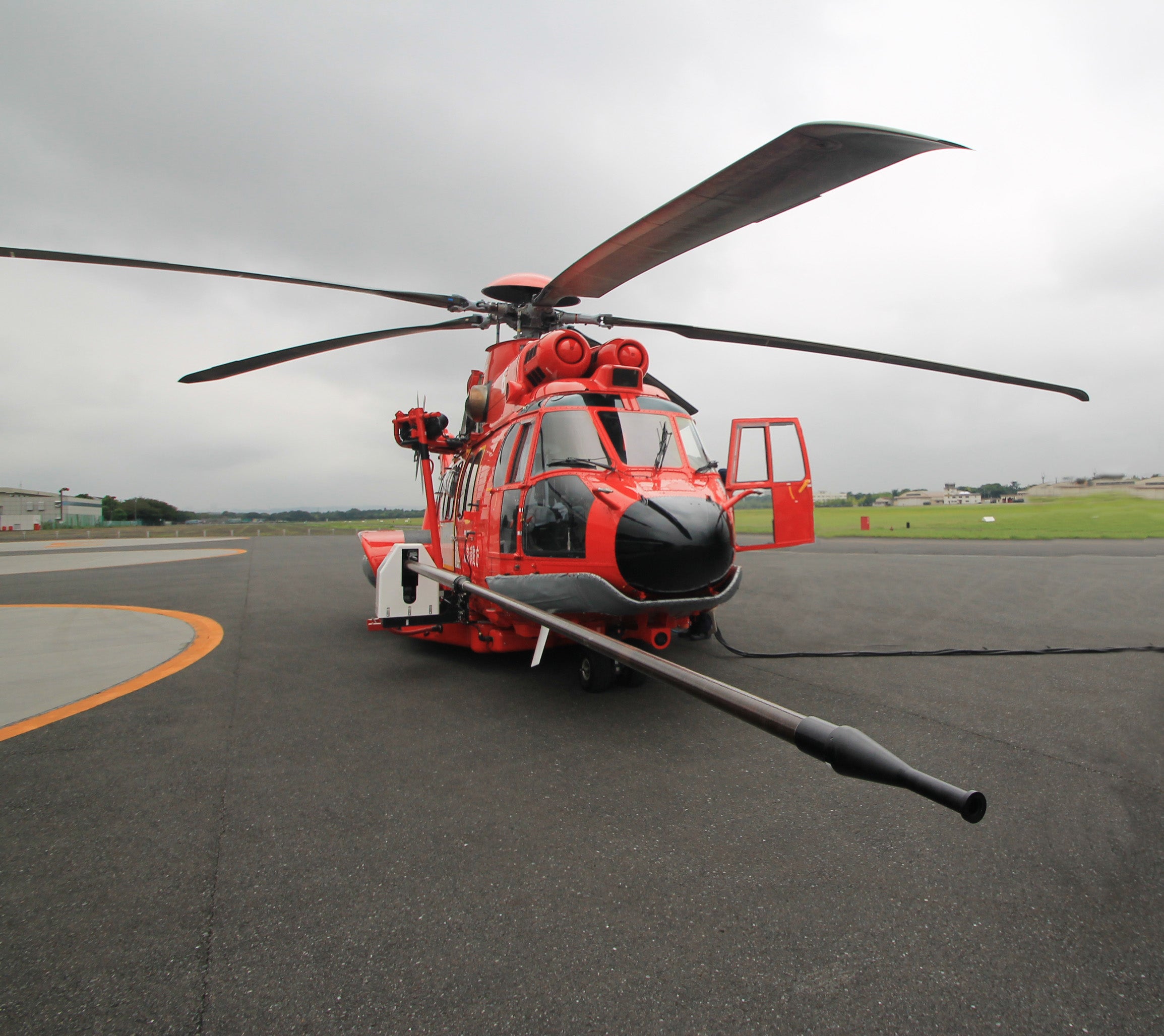

DART's SkyCannon™ can control and contain high-rise fires, slowing the spread of flames through out the building while allowing ground based fighters to evacuate endangered occupants and combat the fire internally.


Key Features

  • Durable composite belly tank
  • Optional, hover refill snorkel
  • Low-pressure, high-volume spray
  • Double safety lock mechanism prevents boom interference with main and tail rotors
  • Boom extends at least one-meter past rotor diameter, reducing rotor wash factor
  • Kit includes infrared camera and distance measuring equipment

Key Benefits

  • Designed specifically for combating high-rise building fires
  • Provides ability to reach beyond ground-based firefighting efforts
  • Boom operated by crew member on separate, user-friendly control console
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02459SE EC225
STC JCAB - Japan STC-437-TYO EC225

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1275 lb / 578 kg

Load Capacity And Volume

  • Volume: 600 gal / 2271 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
