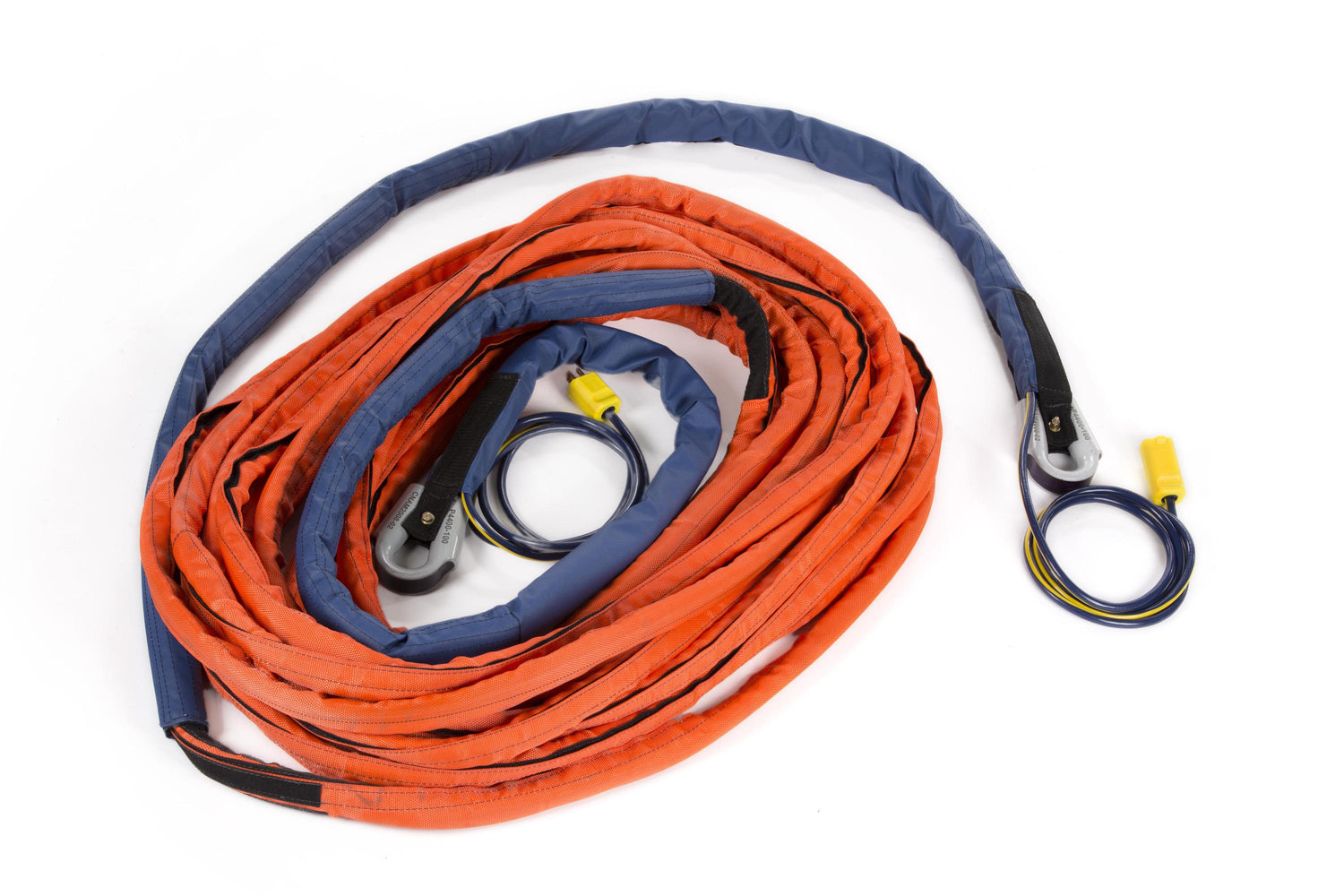

Dyneema® Long Line, 200 foot, 9,700lb safe load (4,400kg)

Dear Valued Customer, notice that our technical documentation is only accessible to users with a validated DART company account. You can recover access to your account here or by filling out this form.

DALL-200-F-B-A

Dyneema® Long Line, 200 foot, 9,700lb safe load (4,400kg)

DALL-200-F-B-A

DALL-200-F-B-A

DALL-200-F-B-A

Dyneema® Long Line, 200 foot, 9,700lb safe load (4,400kg)

DALL-200-F-B-A

DALL-200-F-B-A

8 x lighter and 20% stronger than wire rope
Chemical resistant to fuel, hydraulic oil, etc.
Maximum elongation of 4% - 5% (stretch)
7:1 Safety Factor
3/8"" diameter, 12 strand rope
3 Conductor, 14 gauge electrical wire"

5 year life limit

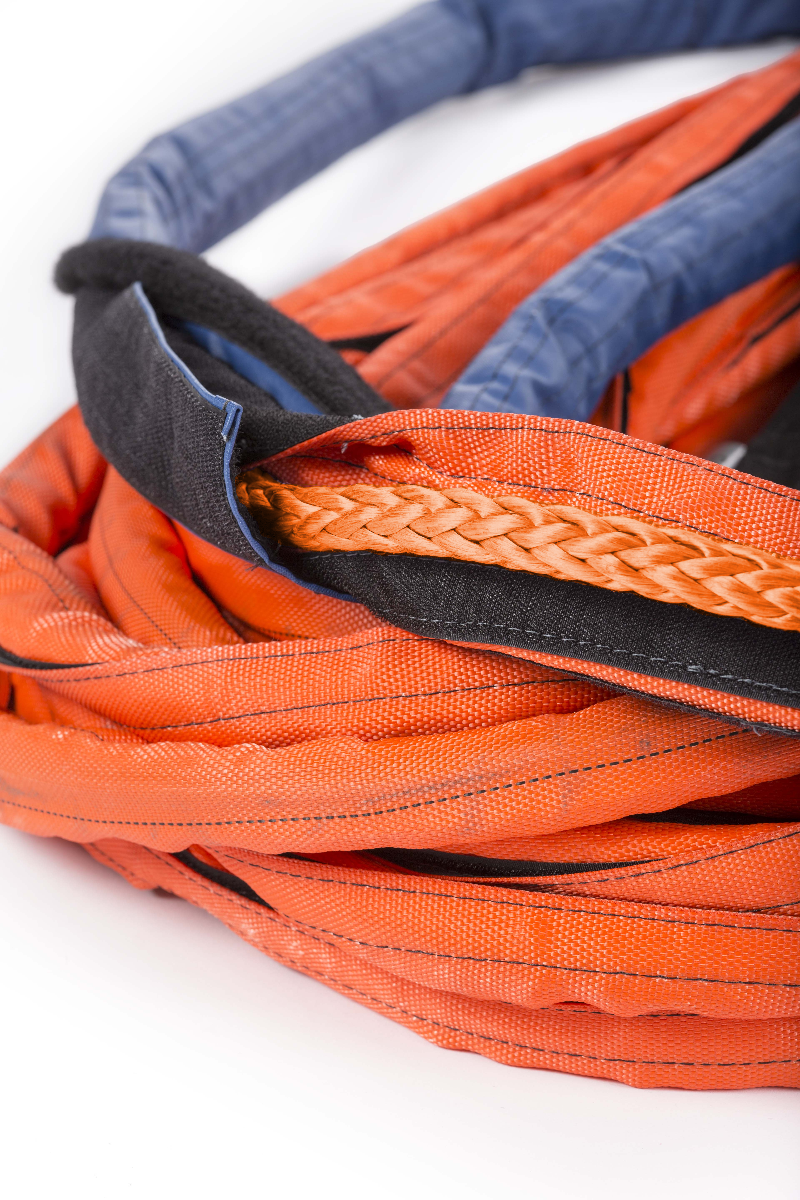

Flight ready with protective orange jacket, and heavy duty blue end covers (top and bottom)
Electrical wire running the length of the Long Line
Stainless steel, heavy duty thimble
All Long Lines preloaded & streched
Will not kink
Each Long Line has a unique identification tag
Convienient travel/storage bag
Custom solutions available for length, wiring, hardware, connectors
