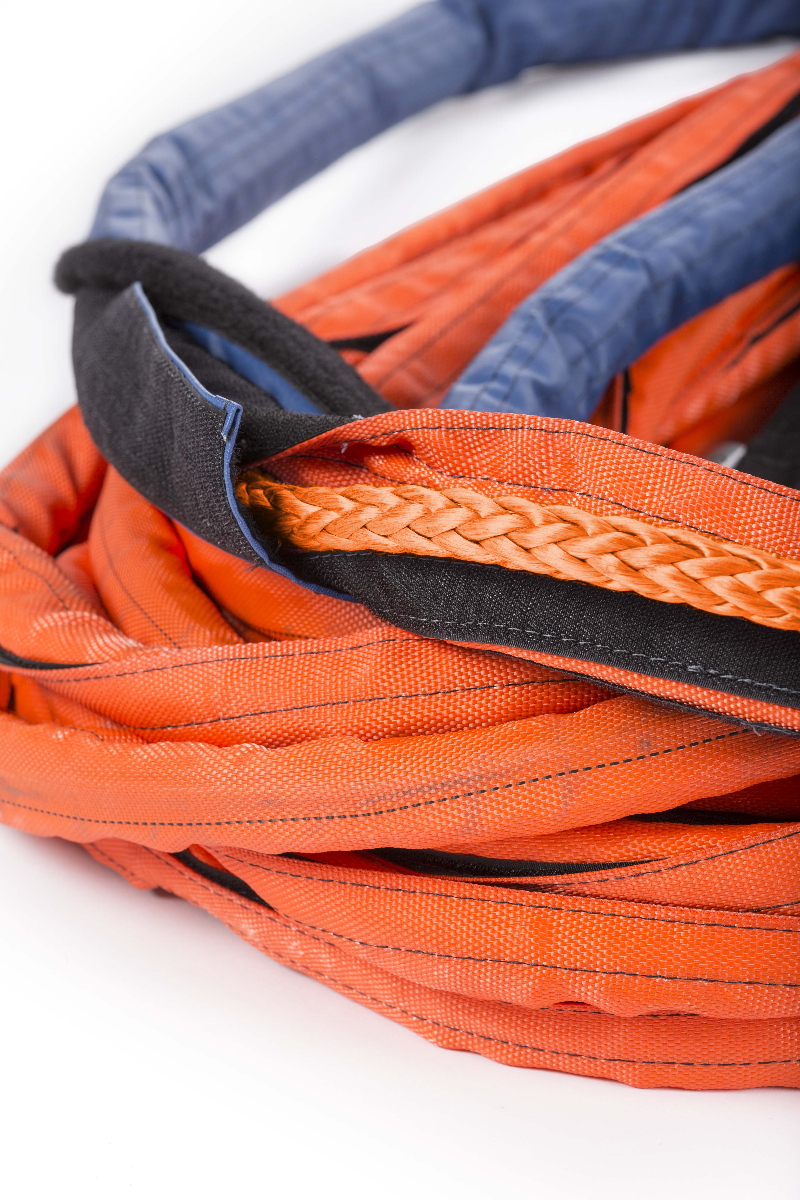

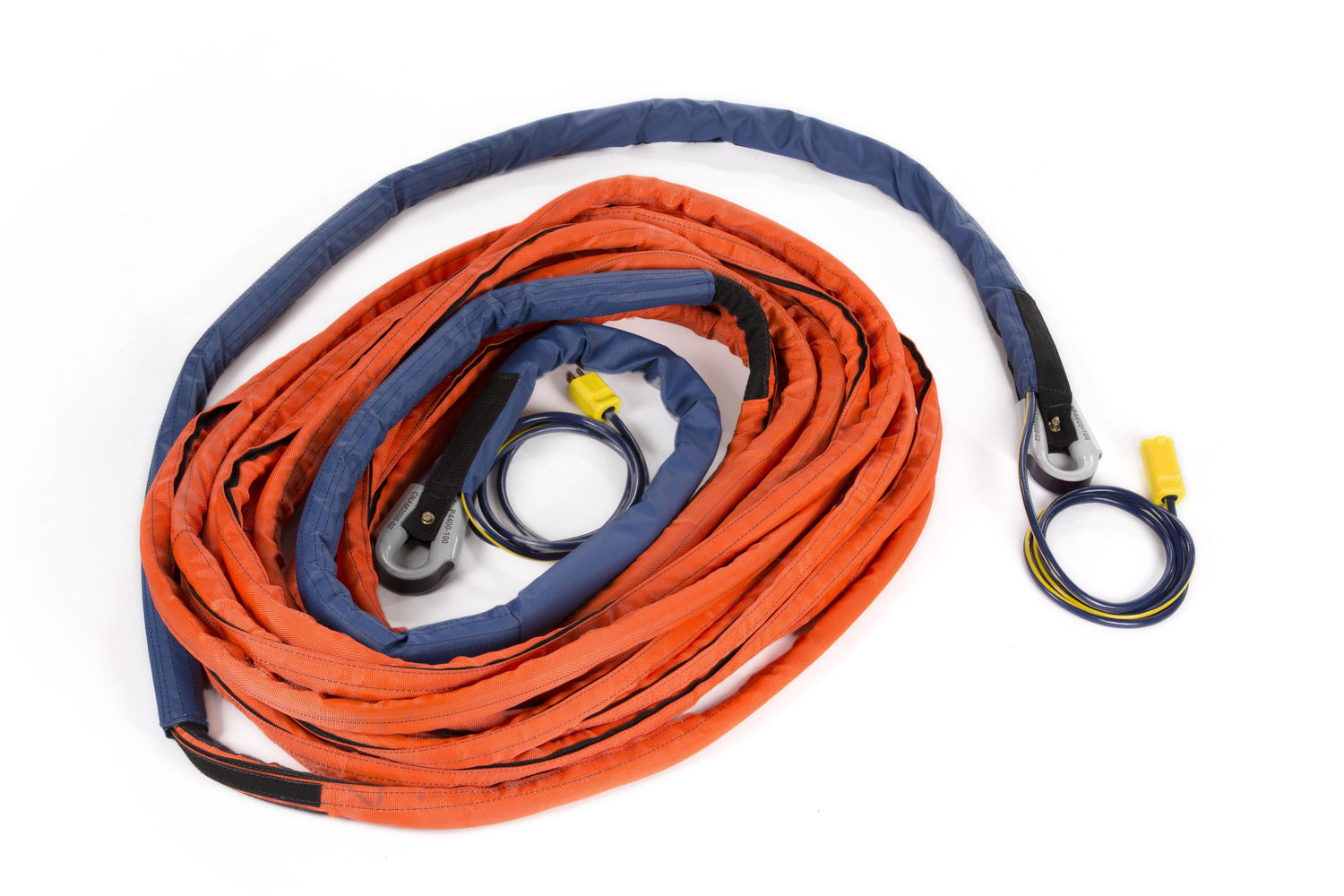

Dyneema® Long Line, 200 foot, 13,200lb safe load (6,000kg)

Mission Equipment
Part Number: DALL-200-G-B-A

Price:
Login to see prices and leadtimes

Key Features

  • 8 x lighter and 20% stronger than wire rope
  • Chemical resistant to fuel, hydraulic oil, etc.
  • Maximum elongation of 4% - 5% (stretch)
  • 7:1 Safety Factor
  • 3/8"" diameter, 12 strand rope
  • 3 Conductor, 14 gauge electrical wire"

Key Benefits

  • 5 year life limit
  • Flight ready with protective orange jacket, and heavy duty blue end covers (top and bottom)
  • Electrical wire running the length of the Long Line
  • Stainless steel, heavy duty thimble
  • All Long Lines preloaded & streched
  • Will not kink
  • Each Long Line has a unique identification tag
  • Convienient travel/storage bag
  • Custom solutions available for length, wiring, hardware, connectors

Approvals

N/A

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
