Description

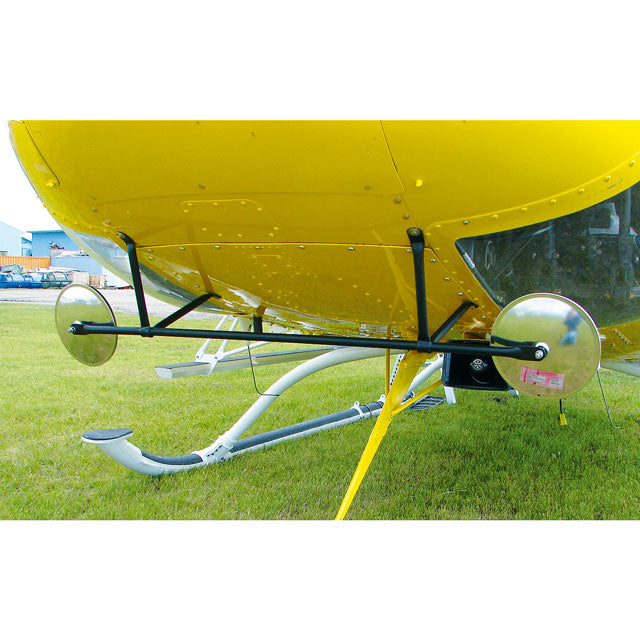

The 204/205/212/214/412 dual mirrors are fixed onto a bracket installed along the rivet lines on the nose of the aircraft, and provide better viewing of the cargo hook for pickup and release from both pilot and co-pilot positions. D204-562-041 hole distance between top bracket arms (Fwd) is 21.5" and between bottom bracket arms (aft) is 25.25". D205-563-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25" D212-580-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25"
*Compatible with D212-580-043 LED Pulse Lights. Provides view from both pilot & co-pilot positions, 8" adjustable convex mirrors, installs on nose with rivet lines that run parallel down the nose. Hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25".
Key Features
- Also available: Pulse Lights
Key Benefits
- Mirrors are now adjustable
- D212-580 mirror now has multiple installation locations for improved viewing LED Pulse Lights:
- Brighter LED Light (1,000 lumens)
- Longer life (30,000+ hrs)
- Less power consumption (2 amps)
- Compatible with all DART Mirrors
- Superior forward conspicuity
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - Mexico | IA-624/2019 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | Instalación de espejo de carga y luz de pulso |
| STC | EASA - Europe | 10017077, Rev. 2 | 204B/205A1/212/214B/214B1/412/412EP | Cargo Mirror and Pulse Light Installation |
| STC | ANAC - Brazil | 2009S11-09 | 204B/205A1/212/214B/214B1/412 | Cargo Mirror and Pulse Light Installation |
| STC | TCCA - Canada | SH92-16 | 204B/205A1/212/214B/214B1/412/412CF/412EP | Cargo Mirror and Pulse Light Installation |
| STC | FAA - USA | SH975NE | 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP | Cargo Mirror and Pulse Light Installation |
