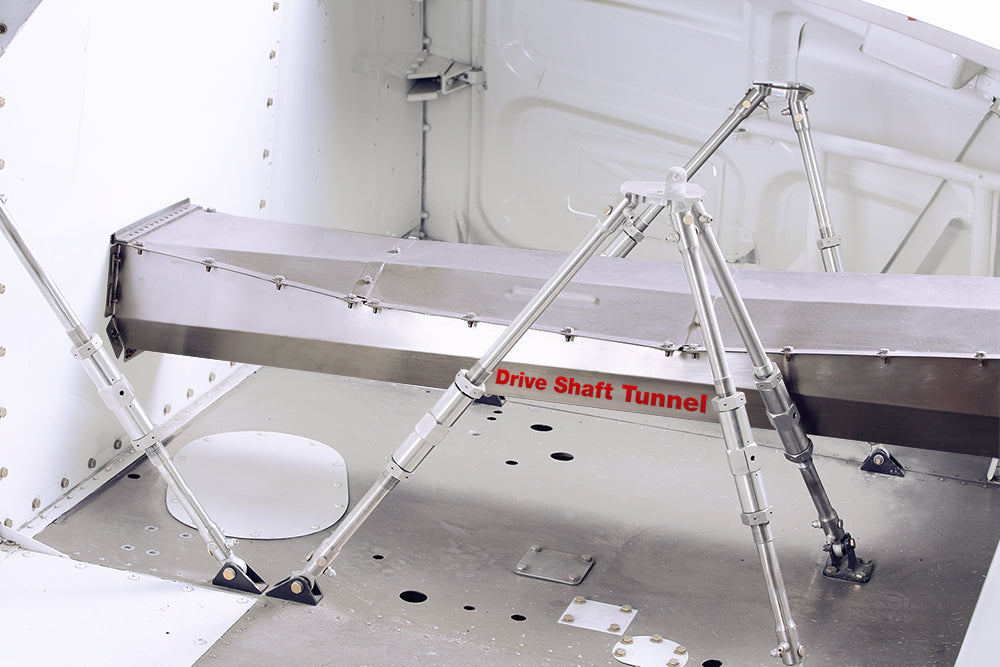

Drive Shaft Tunnel Kit

Part Number: D205-765-011
Aircraft Models: Bell - 205

Price:
The DART Aerospace Drive Shaft Tunnel Kit is designed to reduce maintenance costs and frustration. Removal and re-installation of the drive shaft is eased by providing additional clearance compared to the OEM tunnel to ease drive shaft alignment and accommodate larger diameter drive shafts. *Provides additional clearance in Fwd section of drive shaft to ease removal of drive shaft for maintenance. Replaces Bell p/n 205-060-922-033.

Description

The DART Aerospace Drive Shaft Tunnel Kit is designed to reduce maintenance costs and frustration. Removal and re-installation of the drive shaft is eased by providing additional clearance compared to the OEM tunnel to ease drive shaft alignment and accommodate larger diameter drive shafts. *Provides additional clearance in Fwd section of drive shaft to ease removal of drive shaft for maintenance. Replaces Bell p/n 205-060-922-033.

Key Features

N/A

Key Benefits

  • Extra clearance at Fwd section of drive shaft tunnel
  • Reduced maintenance costs and frustration
  • Provides additional clearance compared to OEM design
  • Reduced possibility of the driveshaft contacting the fireshield during operation
  • Center section can be removed for extra clearance during starter maintenance
  • Accommodates larger diameter driveshaft
  • Panels are individually replaceable to further reduce costs

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH08-12 205A1/205B Drive Shaft Tunnel
STC FAA - USA SR02552NY 205A1/205B Drive Shaft Tunnel

OEM Cross References

OEM Replacement / 205-060-922-033

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

1 hr (as part of an engine change)

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.70 lbs / 2.59 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
