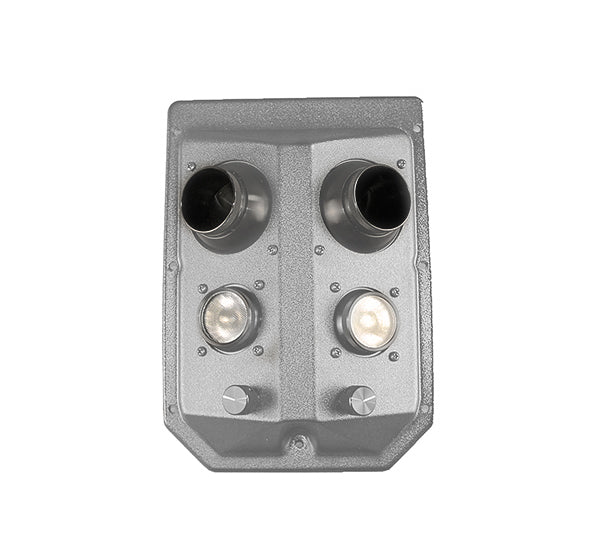

Dome Light Air Vent - Light Gray (Geneva P112S)

Part Number: D350-833-011L07
Aircraft Models: Airbus - AS350

Price:
Increase cabin air flow and lighting with a system that is more reliable than factory original. The Dome Light/Air Vent Assembly has swiveling and adjustable lights and larger air vents (1.25" opening) that allow more air flow capacity. A highly durable light dimmer provides greater reliability than standard factory units. It is quick and simple to install using existing hardware. *Direct replacement for the older style Airbus factory vents 350A72-0315-02 & -03. ... Read more
Increase cabin air flow and lighting with a system that is more reliable than factory original. The Dome Light/Air Vent Assembly has swiveling and adjustable lights and larger air vents (1.25" opening) that allow more air flow capacity. A highly durable light dimmer provides greater reliability than standard factory units. It is quick and simple to install using existing hardware. *Direct replacement for the older style Airbus factory vents 350A72-0315-02 & -03. For installation on aircraft that are pre-mod 350A-07-2617. This assembly mounts to holes that are 6.95 in. (177mm) apart lengthwise (longitudinally). Single rheostat. Read less

Description

Increase cabin air flow and lighting with a system that is more reliable than factory original. The Dome Light/Air Vent Assembly has swiveling and adjustable lights and larger air vents (1.25" opening) that allow more air flow capacity. A highly durable light dimmer provides greater reliability than standard factory units. It is quick and simple to install using existing hardware. *Direct replacement for the older style Airbus factory vents 350A72-0315-02 & -03. For installation on aircraft that are pre-mod 350A-07-2617. This assembly mounts to holes that are 6.95 in. (177mm) apart lengthwise (longitudinally). Single rheostat.

Key Features

  • Aluminum housing for light system
  • Wiring harness is connected to the panel
  • Installs 2 light fixtures and 2 air vents in cabin roof
  • Different configurations for the various AS350 models

Key Benefits

  • Uses the same wiring hookups as OEM kit
  • No aircraft modification needed
  • Dual rheostat allows separate dimming between pilot and passenger area (D350-833-017 P112XL)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10017003, Rev. 1 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Dome Light / Air Vent Assembly
STC ANAC - Brazil 2009S12-01 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Dome Light / Air Vent Assembly
STC FAA - USA SH4785NM AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Dome Light / Air Vent Assembly
STC TCCA - Canada SH93-82 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS350F Dome Light / Air Vent Assembly

OEM Cross References

OEM Replacement / 350A72-0315-02
OEM Replacement / 350A72-0315-03

External Warning

Replaces P112-S.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.50 lb / 0.23 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
