Deck Plate Kit


Part Number: D350-616-015

Aircraft Models: Airbus - AS350

  • In stock

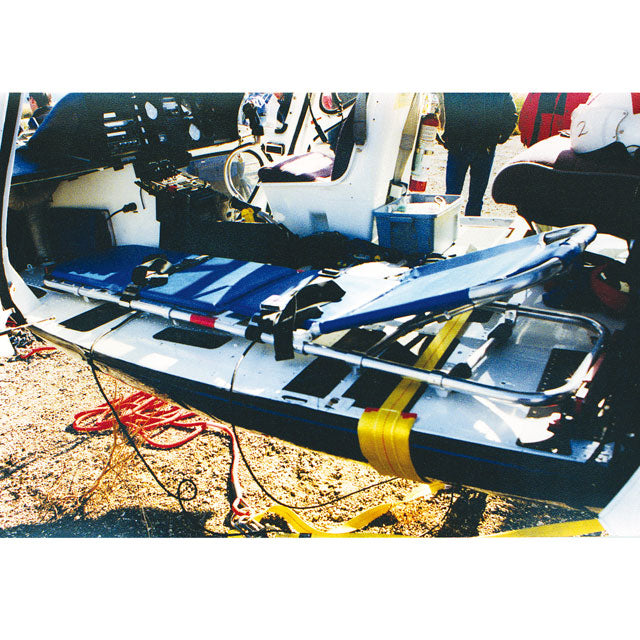

* 1 kit completes 1 aircraft, includes deck plates to modify floor to accept brackets & litter. Compatible with sliding door & energy attenuating seat. Not compatible with DART Sliding Door Hinge Mod Kit. Price is per aircraft.

Key Features

  • Floor provisions sit flush to the floor for normal operations
  • Tie downs install with pip pins to floor mounted deck plates

Key Benefits

  • Compatible with sliding door and Airbus energy attenuating seat
  • Ideal for quick evacuation with non-dedicated EMS aircraft
  • Removes/re-installs in 4 quick and easy steps

Approvals

Approval type Authority Reference number Aircraft approved Description
STC CAAC - China VSTC0976A AS350B3/AS355NP Emergency Litter Kit Installation
STC DGAC – Ecuador ACTS-20-004 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit
STC EASA - Europe 10042994 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit Installation
STC ANAC - Brazil 2013S02-03 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2/HB-350B Emergency Litter Kit Installation
STC EASA - Europe 27/96 AS350B/AS350B1/AS350B2/AS350BA/AS350D Emergency Litter Kit Installation
STC EASA - Europe 84-SI0995 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Emergency Litter Kit Installation
STC TCCA - Canada SH96-10 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit Installation
STC FAA - USA SR00405NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Emergency Litter Kit Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

Sliding door; Energy Attenuating Seat.

Not Compatible With

DART Sliding Door Hinge Mod Kit

Flight Restrictions

None

Installation Time

11 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.80 lbs / 1.27 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
