Crosstube Antenna Mount Kit 407 Fwd

Mission Equipment
Part Number: D407-836-015
Aircraft Models: Bell - 407

Price:

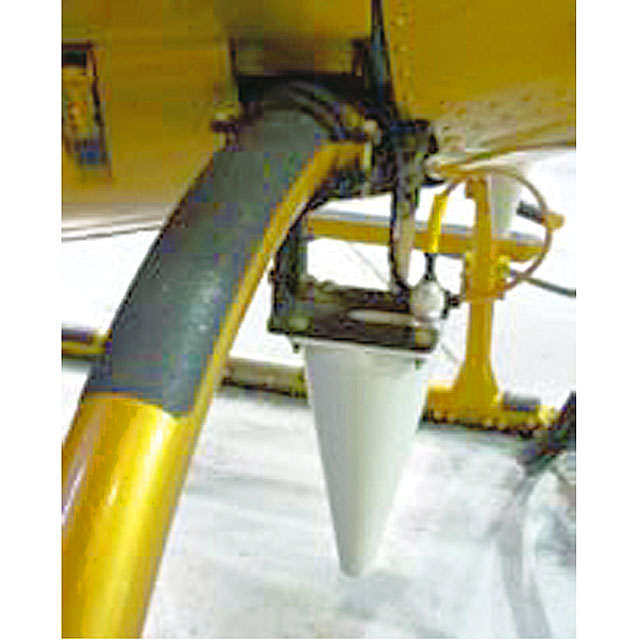

Designed for mounting microwave transmit and receive antennas to either the Fwd or Aft crosstubes. *Fits 407 Fwd crosstube. Included: top bracket, lower bracket, antenna bracket and rubber cushion. Mounting hardware included. 1 kit mounts 1 antenna.

Description

Designed for mounting microwave transmit and receive antennas to either the Fwd or Aft crosstubes. *Fits 407 Fwd crosstube. Included: top bracket, lower bracket, antenna bracket and rubber cushion. Mounting hardware included. 1 kit mounts 1 antenna.

Key Features

  • Load rated up to 2 lbs antenna weight and 20 sq. in. cross sectional area
  • No VNE restrictions
  • 206L Mounts to STA 75.20 in. (Fwd. crosstube installation)
  • 206L Mounts to STA 157.42 in. (aft crosstube installation)
  • 407 Mounts to STA 75.20 in. (Fwd. crosstube installation)
  • 407 Mounts to STA 157.42 in. (aft crosstube installation)

Key Benefits

  • Perfect for mounting uplink or omni-directional antennas
  • Mounts with rubber cushions to protect the crosstubes
  • Up to 4 antenna mounts can be installed on aircraft
  • Compatible with multiple antennas

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10049767 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Crosstube Antenna Mounts
STC ANAC - Brazil 2013S09-01 206A/206B/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Cross-tube Antenna Mounts
STC TCCA - Canada SH13-21 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Cross-tube Antenna Mounts
STC FAA - USA SR02253SE 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Cross-tube Antenna Mounts

OEM Cross References

N/A

External Warning

Replaces P162-407F. Can be installed on 407 Fwd Crosstube.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

1 hr

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.85 lb / 0.38kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
