Crosstube Antenna Mount 206 A/B Aft and 206A/B/L Fwd


Part Number: D206-836-011

Aircraft Models: Bell - 206A/B;Bell - 206L

  • In stock STOCK STOCK Please contact sales for a lead time Please contact sales for a lead time

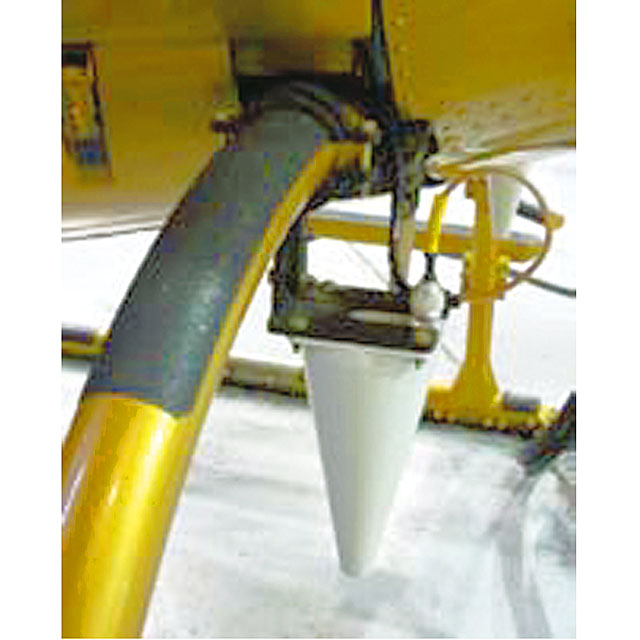

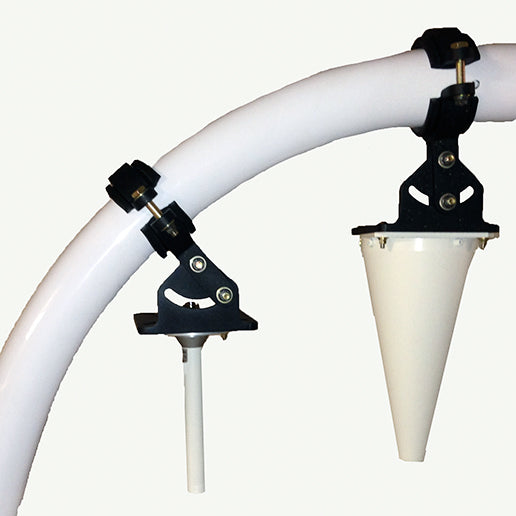

Designed for mounting microwave transmit and receive antennas to either the Fwd or Aft crosstubes. *Fits 206 A/B AFT & 206A/B/L FWD Crosstube. Included: Top bracket, lower bracket, antenna bracket and rubber cushion. Mounting hardware included. 1 kit mounts 1 antenna. Up to 4 mounts can be installed on an aircraft.

Key Features

  • Load rated up to 2 lbs antenna weight and 20 sq. in. cross sectional area
  • No VNE restrictions

Key Benefits

  • Perfect for mounting uplink or omni-directional antennas
  • Mounts with rubber cushions to protect the crosstubes
  • Up to 4 antenna mounts can be installed on aircraft
  • Compatible with multiple antennas

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10049767 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Crosstube Antenna Mounts
STC ANAC - Brazil 2013S09-01 206A/206B/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Cross-tube Antenna Mounts
STC TCCA - Canada SH13-21 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Cross-tube Antenna Mounts
STC FAA - USA SR02253SE 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Cross-tube Antenna Mounts

OEM Cross References

N/A

External Warning

Replaces P162-206. Can be installed on 206A/B aft & 206A/B/L fwd.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

1 hr

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.85 lb / 0.38kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
