D350-836-019
D350-836-019
D350-836-019D350-836-019

Crosstube Antenna Mount AS350 / AS355

Part Number: D350-836-019
Aircraft Models: Airbus - AS350
Price:

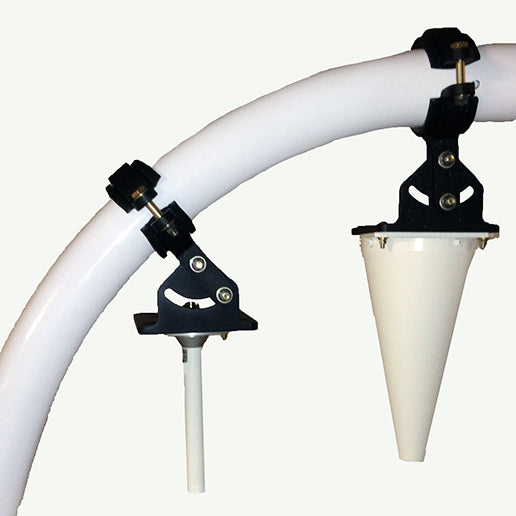

Designed for mounting up to 4 microwave transmit and receive antennas to either the Fwd or Aft crosstubes. *Fits AS350/AS355 Fwd or Aft crosstube. Includes: Top bracket, lower bracket, antenna bracket and rubber cushion & mounting hardware. Replaces DART (Geneva) P162-350. 1 kit mounts 1 antenna.

Description

Designed for mounting up to 4 microwave transmit and receive antennas to either the Fwd or Aft crosstubes. *Fits AS350/AS355 Fwd or Aft crosstube. Includes: Top bracket, lower bracket, antenna bracket and rubber cushion & mounting hardware. Replaces DART (Geneva) P162-350. 1 kit mounts 1 antenna.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10049767 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Crosstube Antenna Mounts
STC ANAC - Brazil 2013S09-01 206A/206B/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Cross-tube Antenna Mounts
STC TCCA - Canada SH13-21 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Cross-tube Antenna Mounts
STC FAA - USA SR02253SE 206A/206A1/206B/206L/206L1/206L3/206L4/407/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Cross-tube Antenna Mounts

OEM Cross References

N/A

External Warning

Replaces P162-350. Can be installed on AS350/355 fwd and aft.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

1 hr

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.85 lb / 0.45 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
