Description

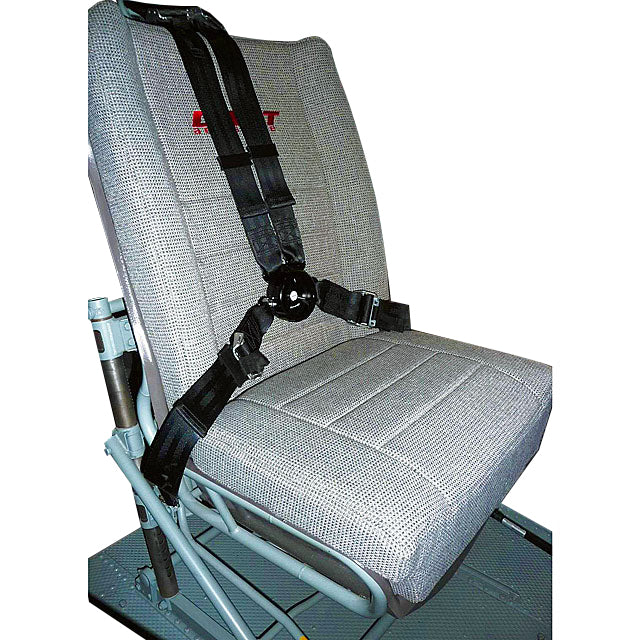

DART Aerospace's new multi-operations Comfort Crew Shoulder Harness is ideally suited to the varied demands of helicopter operations today. This system includes a modern and easy-to-use buckle, a sturdy inertial reel and additional belt length for extra mobility and comfort. This system is designed to move with the pilot, eliminating the challenge that a restrictive harness system imposes on the pilot.
*Provides 4 point attachment for pilot or co-pilot seating position. Compatible on DART Aerospace Comfort Seat D205-778-011 or OEM seat 205-070-799-001/-101, 212-706-101-001. 1 kit modifies 1 seat.
Key Features
- TSO-C114
- Never-wear-out ID tags
- 4 point restraint with inertia reel
- Installs into existing seat provisions
Key Benefits
- More comfortable shoulder belts
- More comfortable lap belts
- Increased lap and shoulder belt length
- Ideal for vertical reference operations
- Requires no permanent seat modification
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.00710 Revision 1 | 205A/205A1/205B/212/214B/214B1/412/412EP | Shoulder Harness Kit |
| STC | TCCA - Canada | SH04-7 | 205A1/205B/212/214B/214B1/412/412CF/412EP | Shoulder Harness Kit |
| STC | FAA - USA | SR01997NY | 205A/205A1/205B/212/214B/214B1/412/412CF/412EP/AB412/AB412EP | Shoulder Harness Kit |
