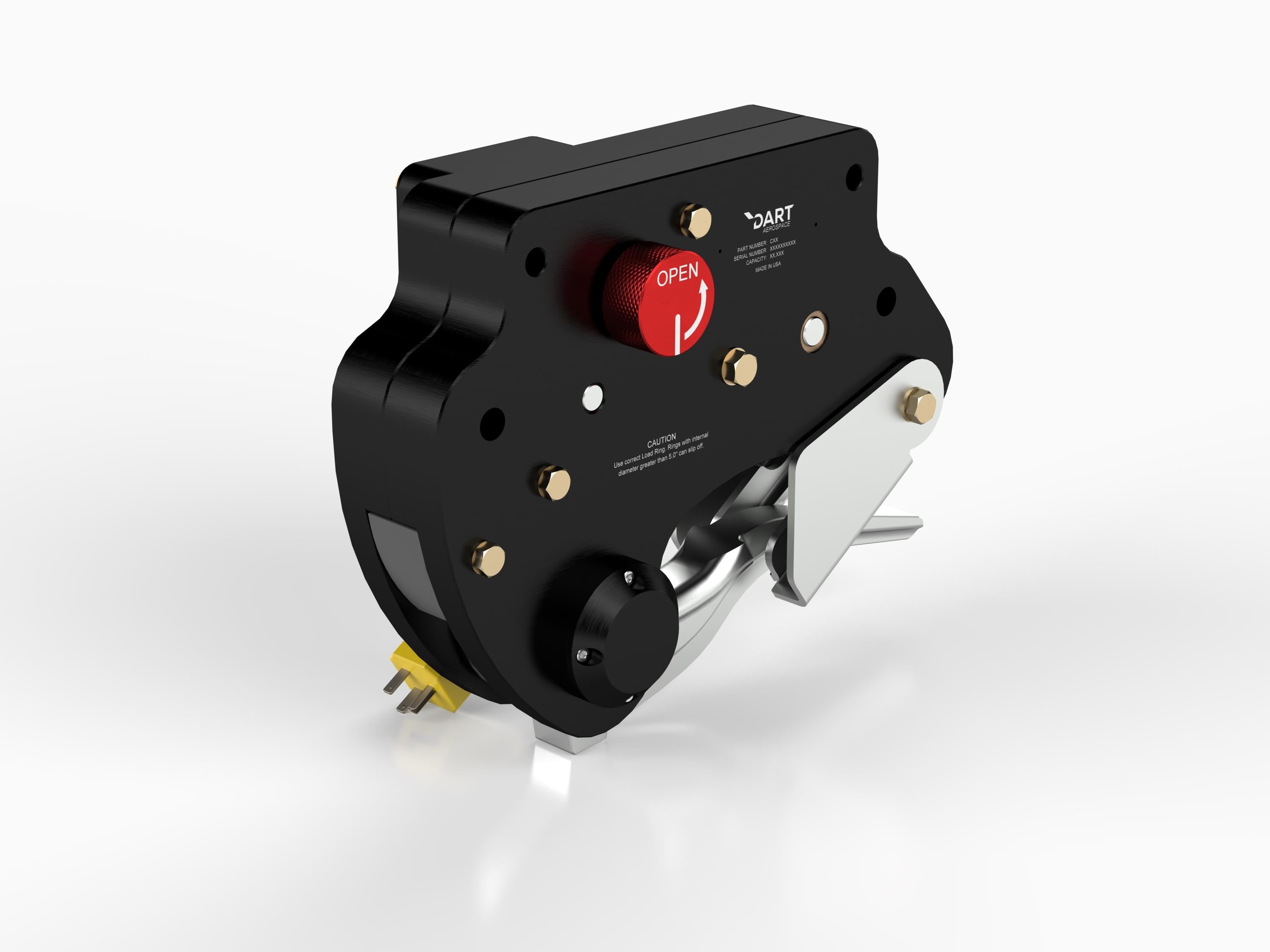

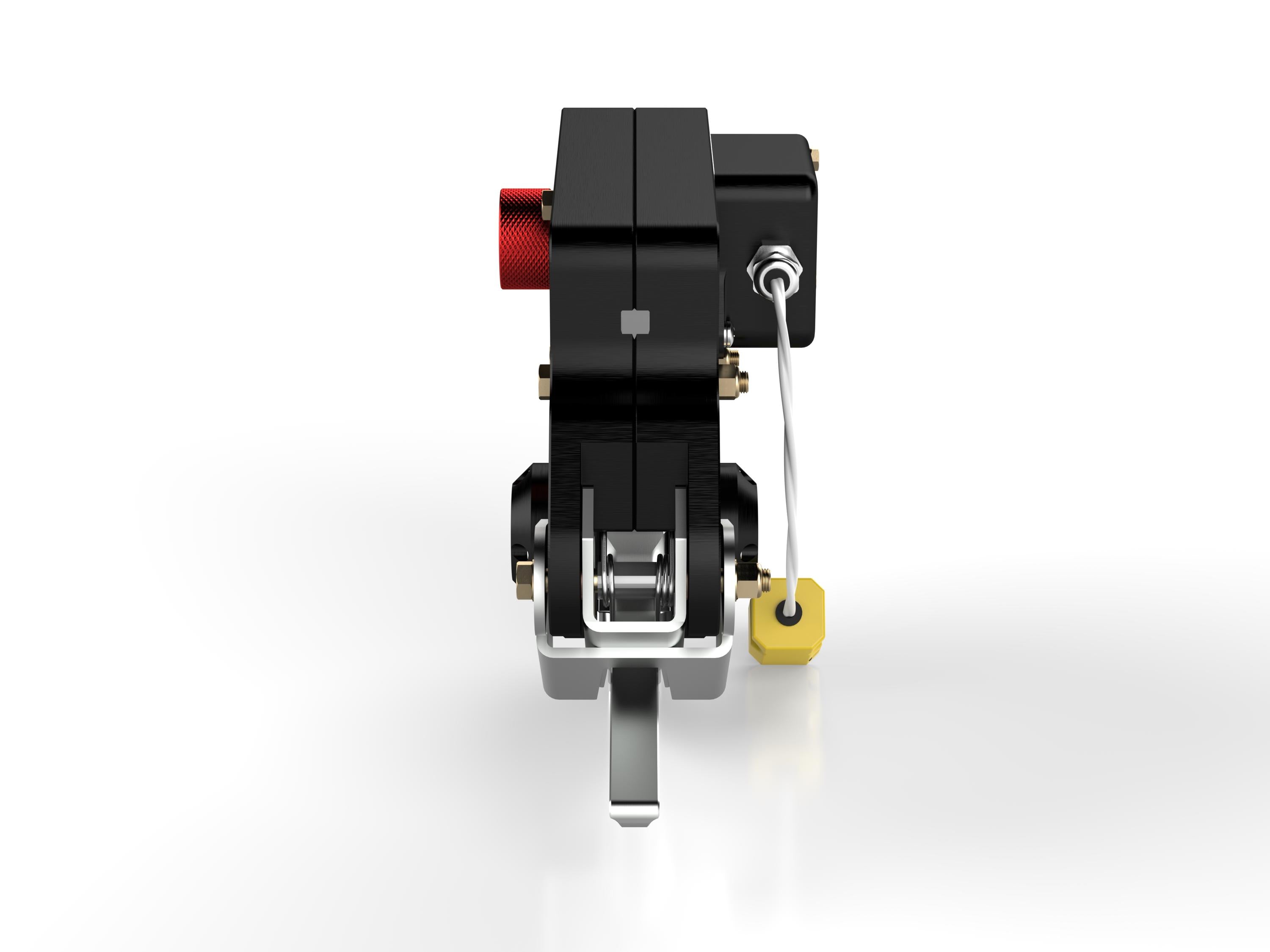

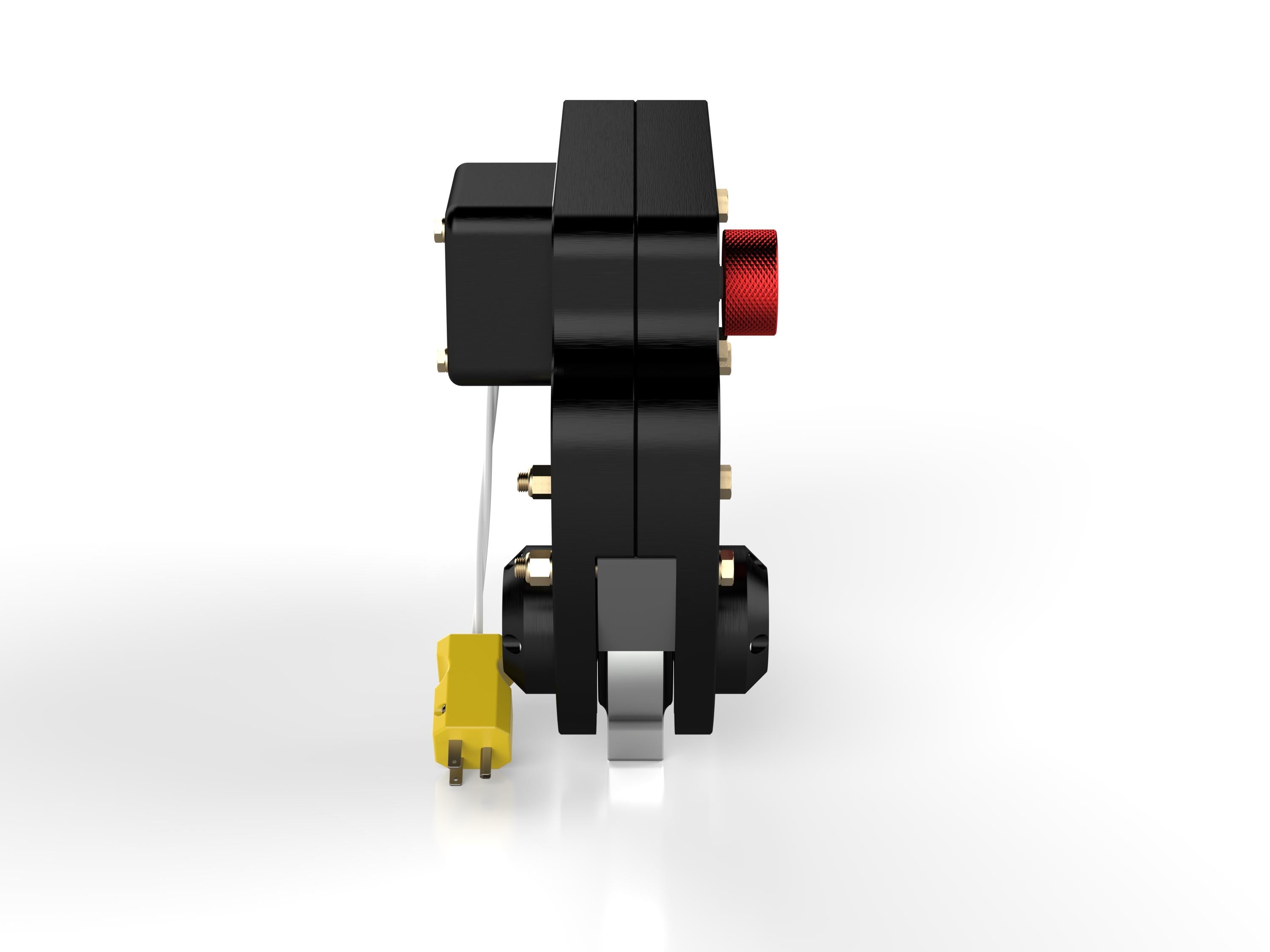

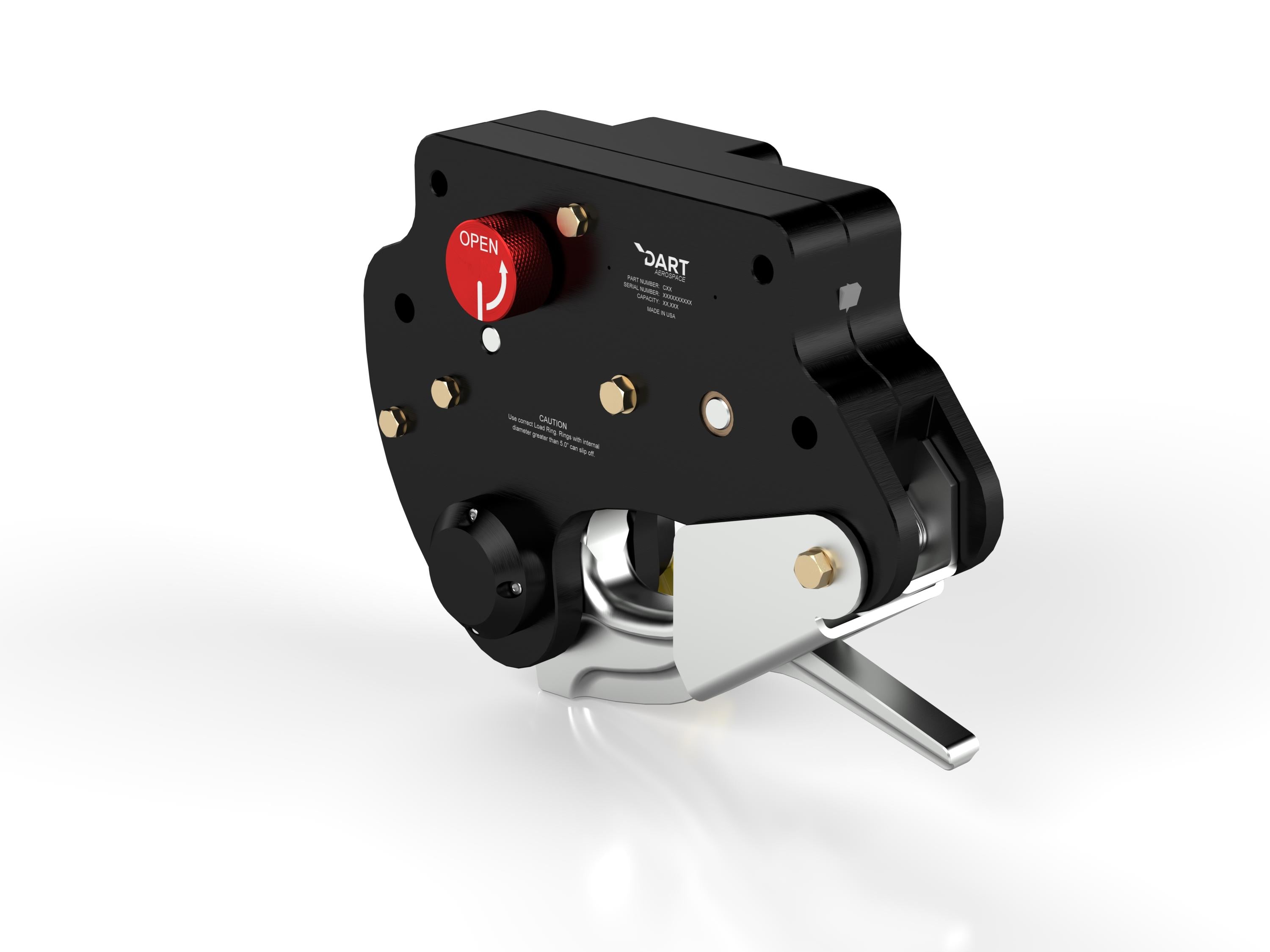

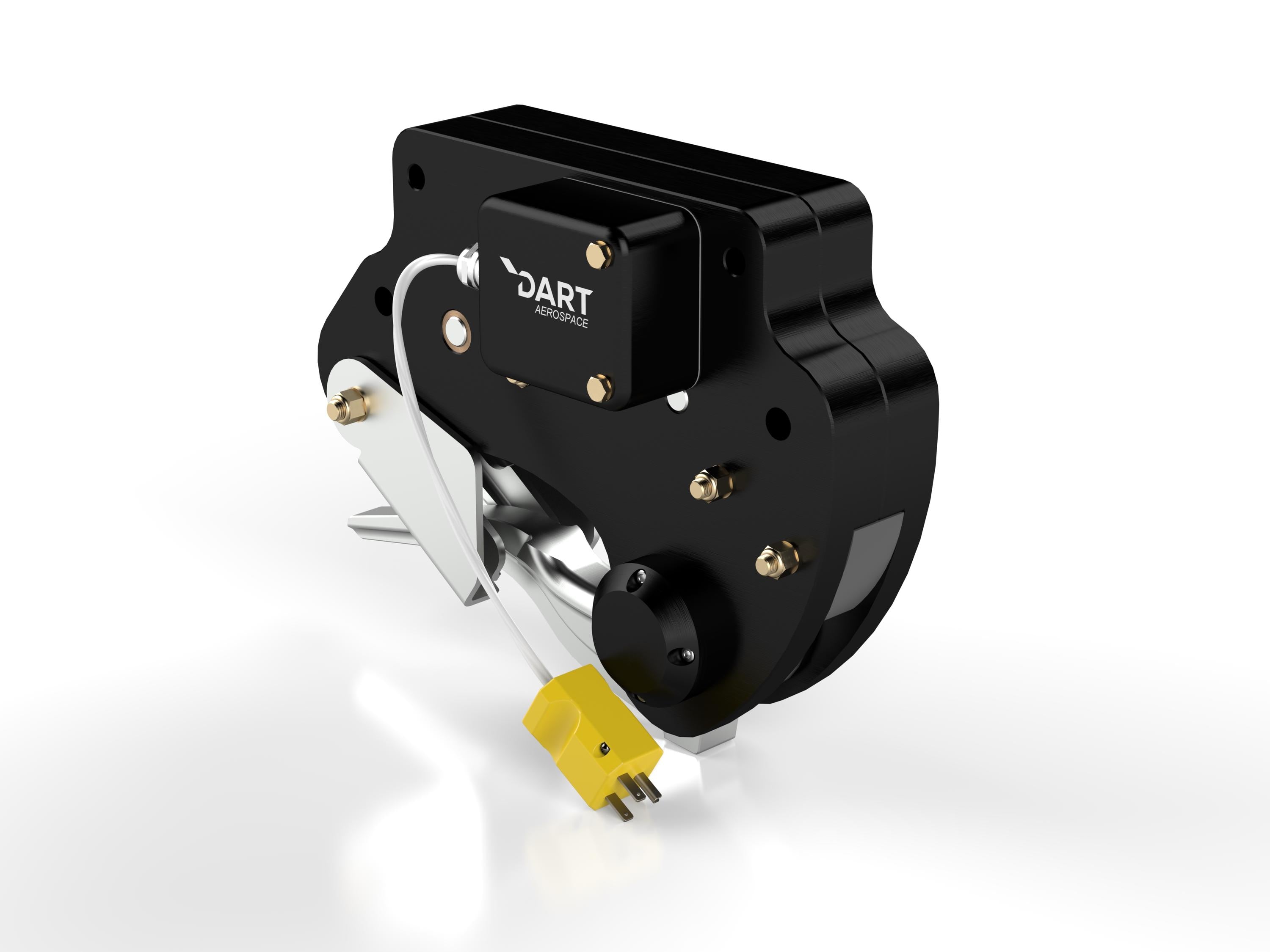

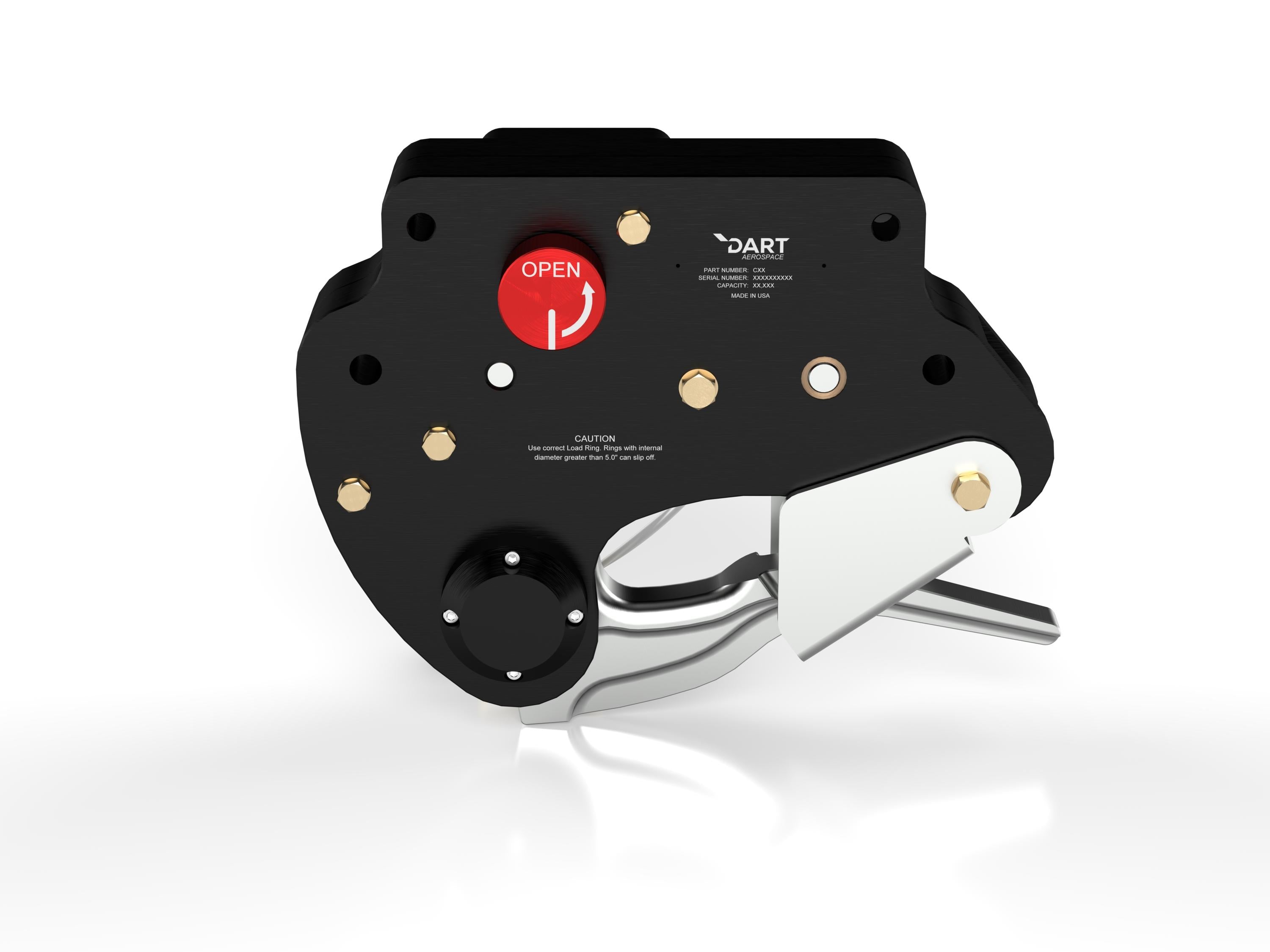

C-Series Remote Hook 15,000 lbs Lift Capacity


Part Number: C15

Aircraft Models: Airbus - AS332

  • In stock
Sub-component of: C-Series Hook 15,000 lbs Lift Capacity With Cage. *Cages sold separately. Throat opening 1.80.

Key Features

  •  Repair and Overhaul kits are available
  •  Housing plates are constructed of high quality aluminum
  •  Internal parts are made of high quality steels that have been heat treated and plated
  •  Loadbeam will accomodate up to 3 eye chokers, 1" diameter
  •  Throat opening is 2.72" / 69.09mm
  •  Maximum load ring inner diameter is 5 inches
  •  Proof tested at our manufacturing facility

Key Benefits

  •  Specifically designed with limited moving parts to reduce maintenance costs and downtime
  •  Installs on new or existing aircraft with minimum effort and tools
  •  Widest portfolio of safe working loads
  •  Easy installation and field maintenance
  •  Fast and efficient turnaround time
  •  TBO (Time Before Overhaul) 5 years from the date of purchase or last overhaul or 1,500 hours of operational time, whichever comes first

Approvals

N/A

OEM Cross References

N/A

External Warning

Hook only, does not include cage. Full assembly part number is C15-HC.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 37.00 lbs / 16.78 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
