BK117 D2/D3 Emergency Float System

Mission Equipment
Part Number: 654.6702
Aircraft Models: Airbus - EC145

Price:

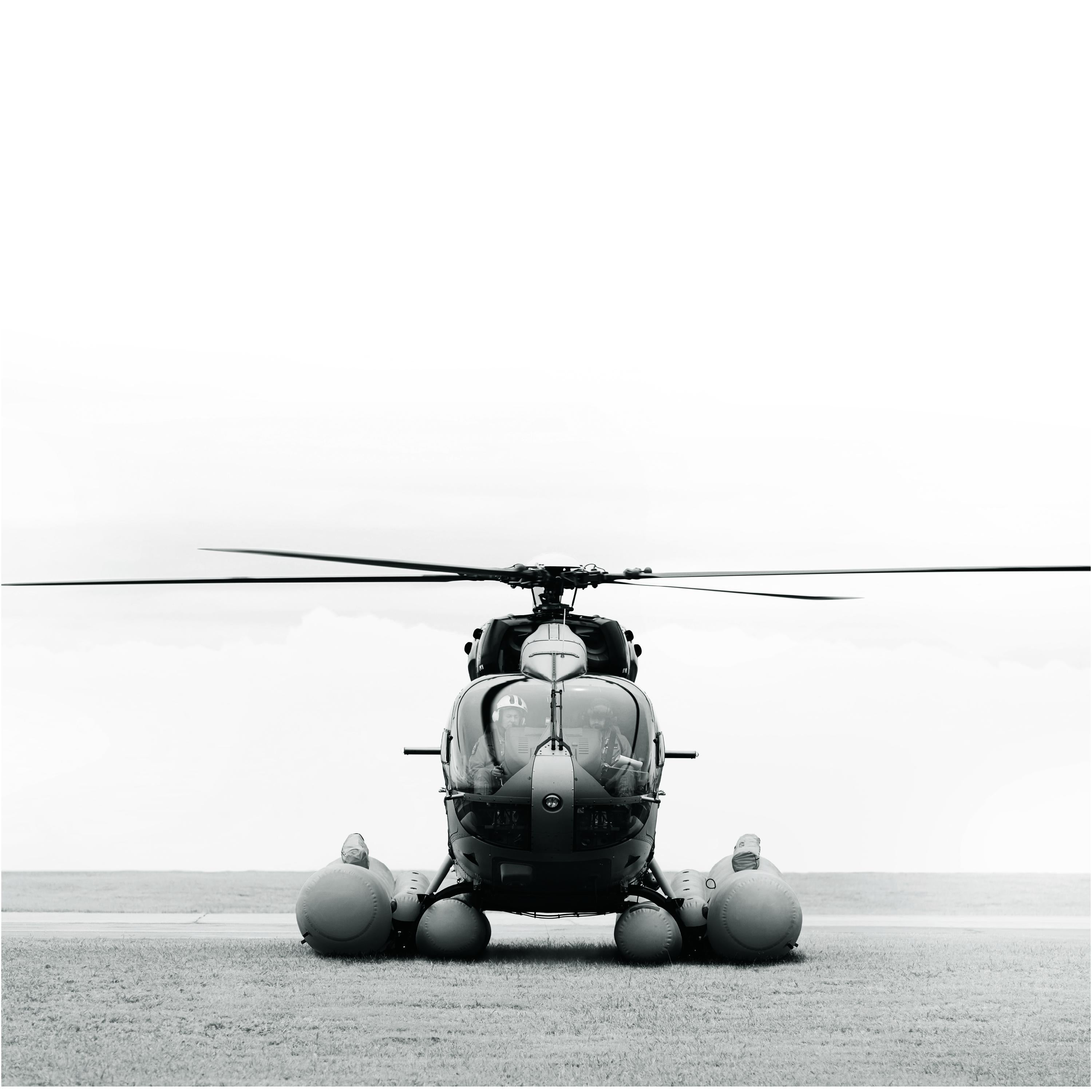

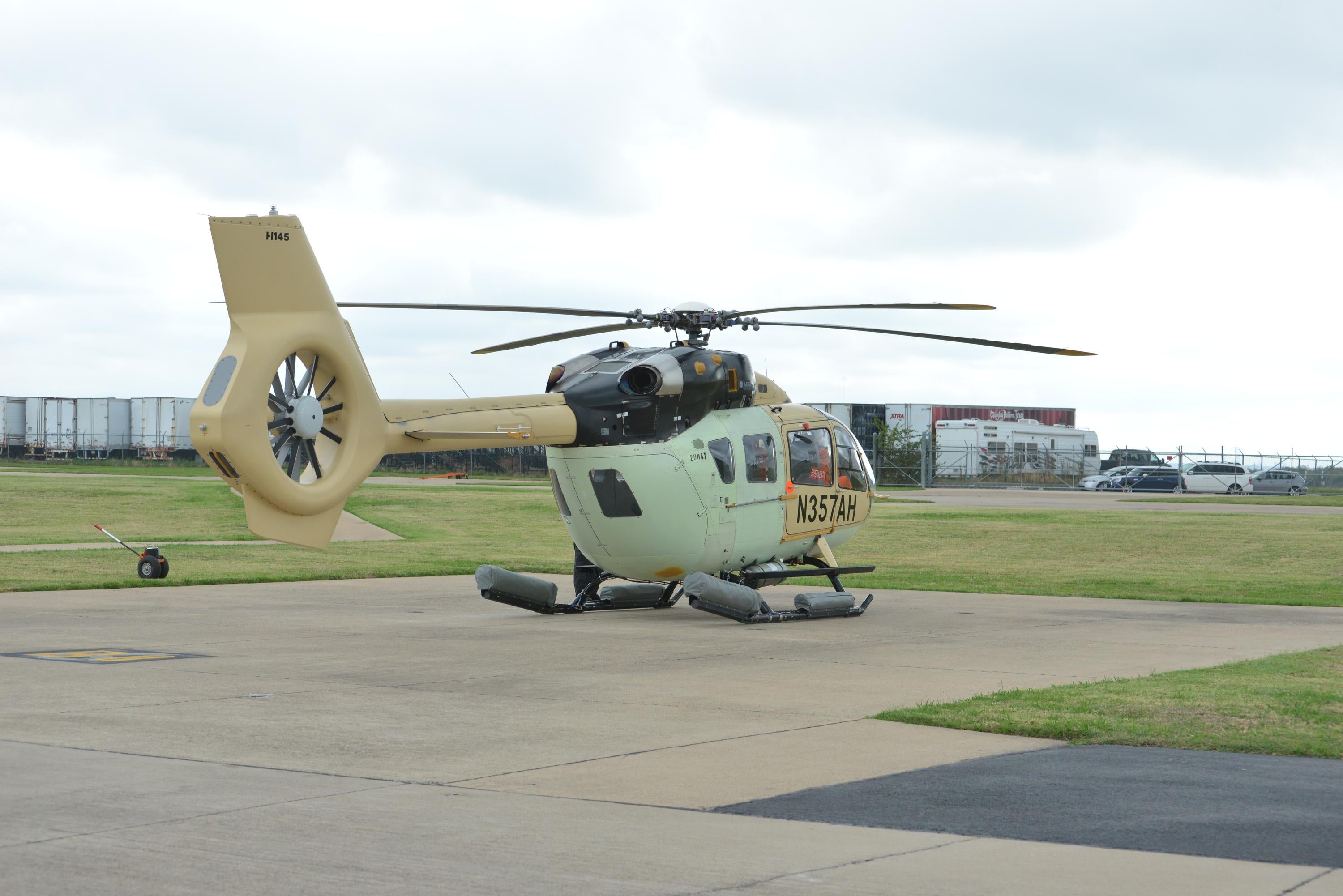

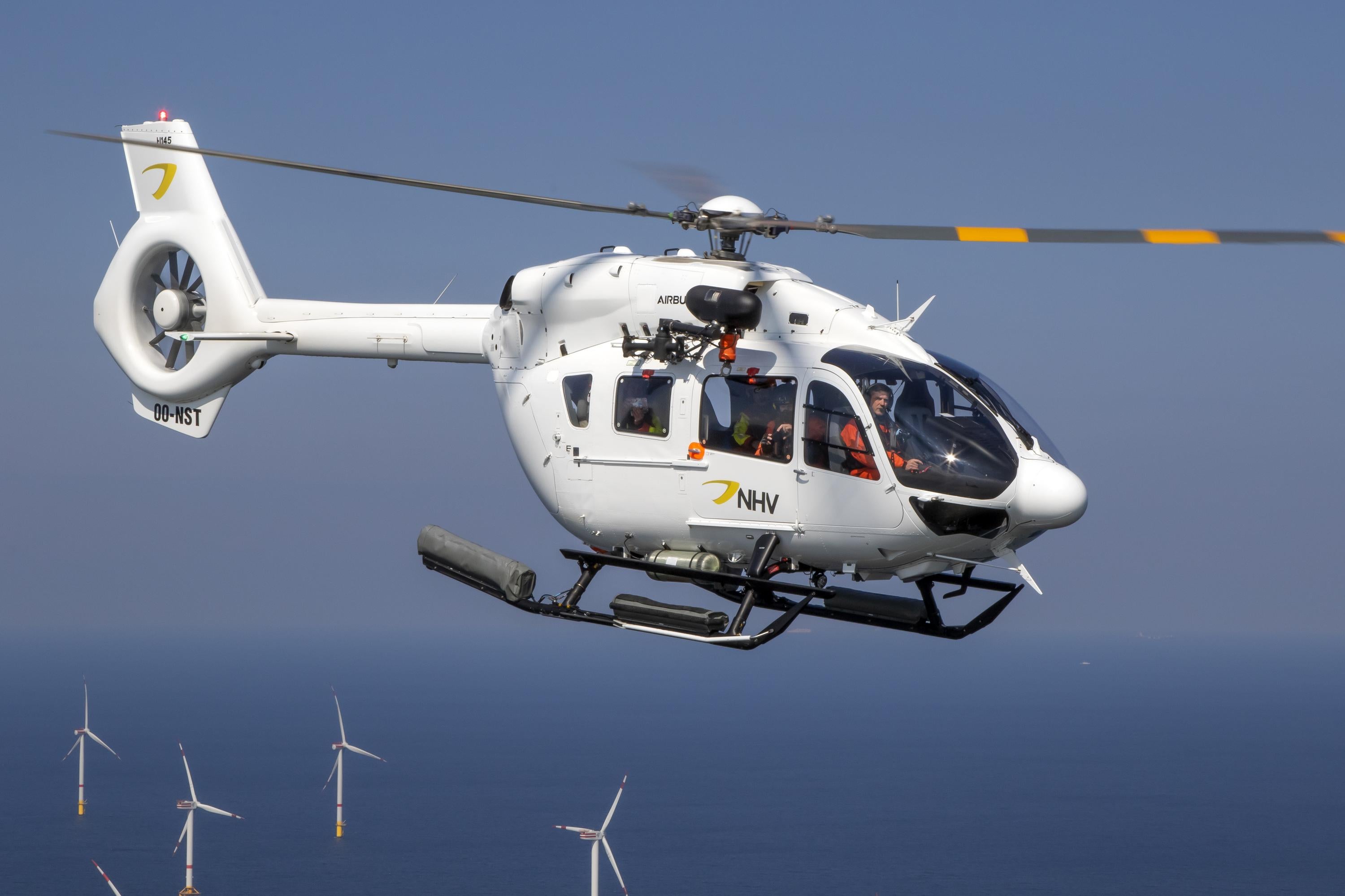

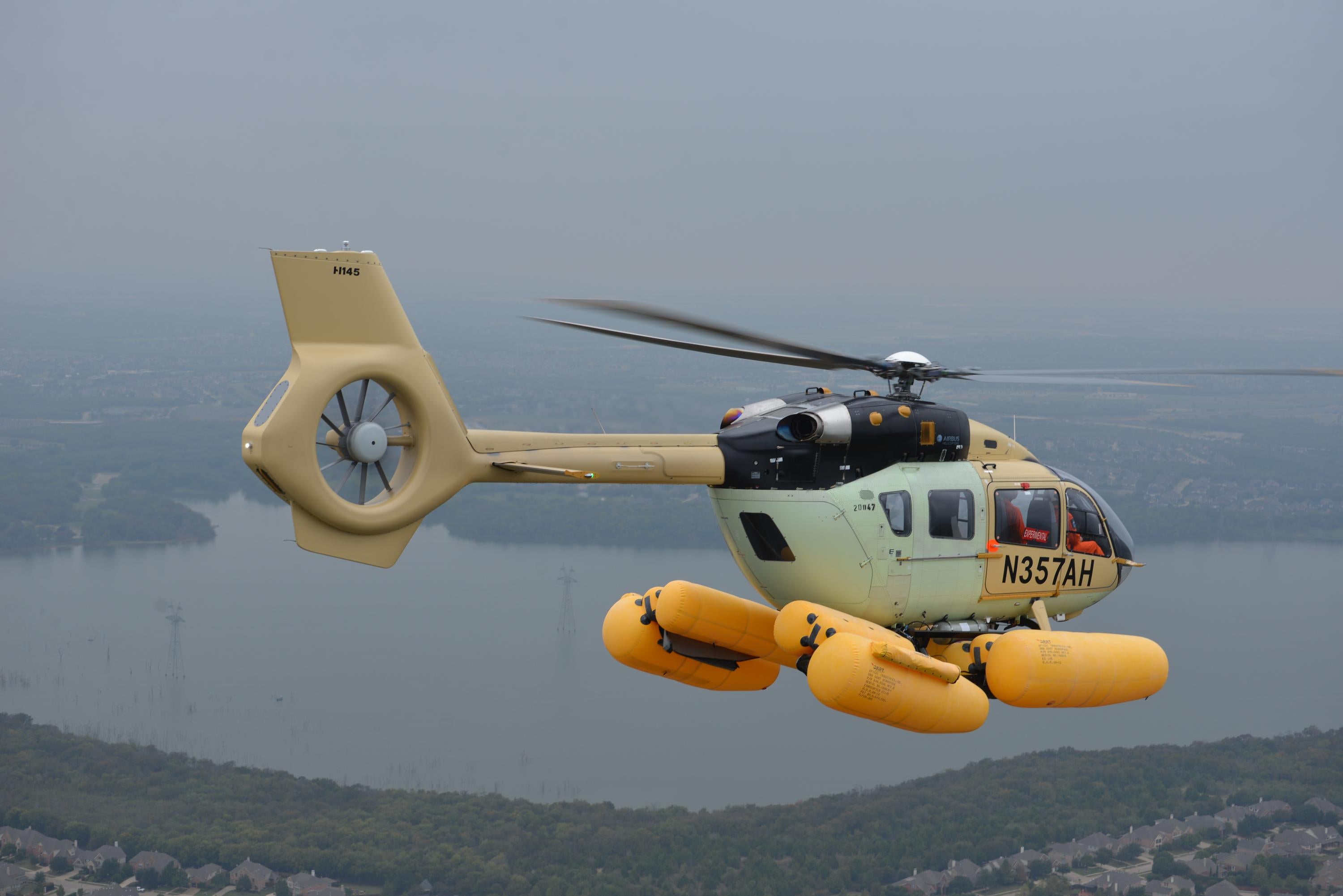

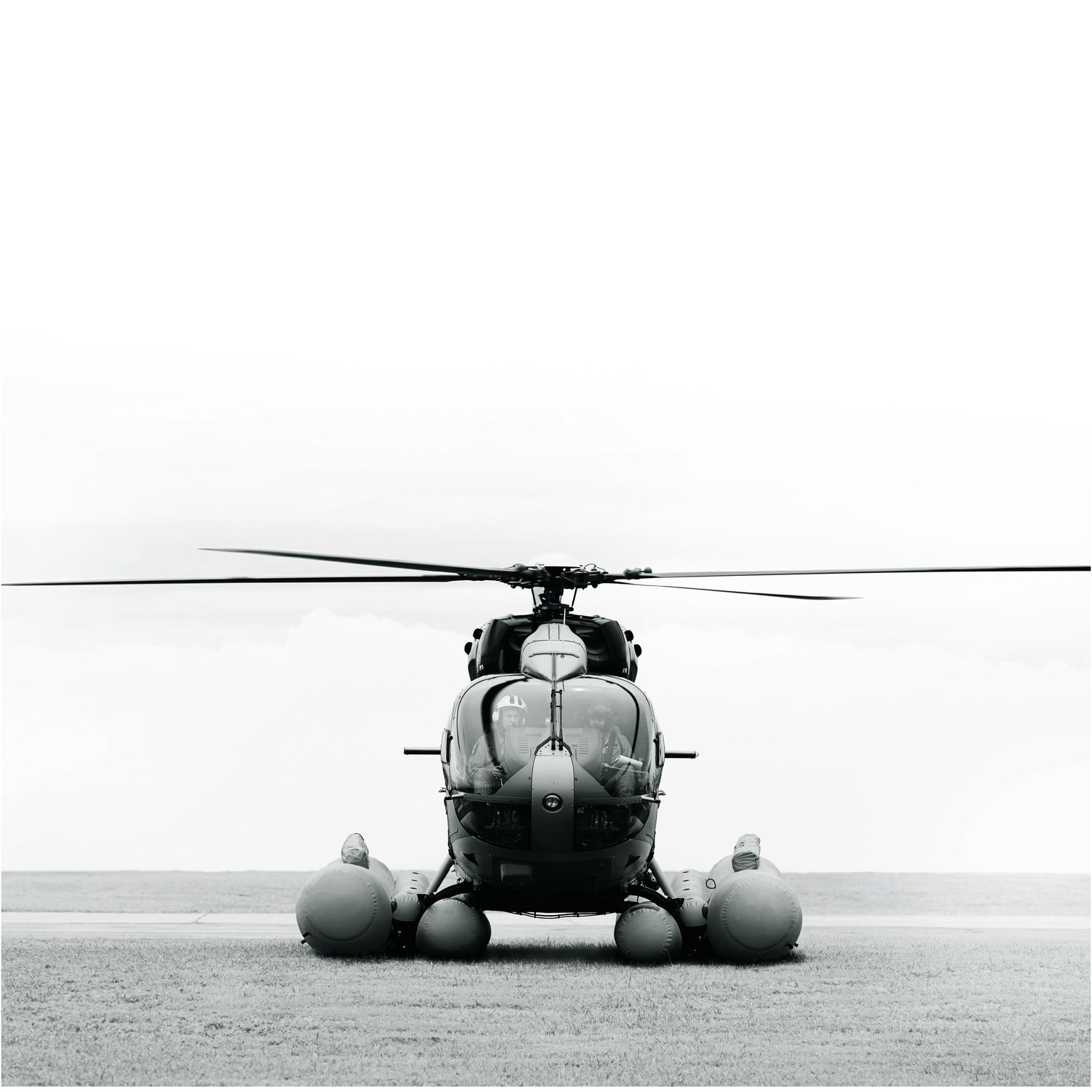

DART Aerospace's patented Tri Bag emergency flotation system available with integrated liferaft available for the H145 and certified for stability in sea state 6. System includes 4 tri bag floats for improved stability. *Complete system including: reservoir, float bags and covers, necessary wiring and plumbing. Contact sales for purchasing options (hoist compatibility, auto inflation, fixed and/or removable provisions, valve cover, skid extensions).

Description

DART Aerospace's patented Tri Bag emergency flotation system available with integrated liferaft available for the H145 and certified for stability in sea state 6. System includes 4 tri bag floats for improved stability. *Complete system including: reservoir, float bags and covers, necessary wiring and plumbing. Contact sales for purchasing options (hoist compatibility, auto inflation, fixed and/or removable provisions, valve cover, skid extensions).

Key Features

  • Certified to sea state 6
  • Approved for ditching and emergency landings
  • Inspections at 18 months (instead of 12)
  • All valves are field replaceable
  • Available with: automatic inflation, LH & RH hoist compatibility, skid extensions, valve covers & Trakka light compatibility

Key Benefits

  • Improved stability due to Tri-bag float design
  • Available with integrated liferafts for superior survivability after emergency water landings and weight & cabin space savings
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH21-24 H145D3 Installation of the Emergency Float System
STC EASA - Europe 10077436 H145D3 Emergency Floatation System Installation with (optional) Integrated Liferafts
STC FAA - USA SR04694NY H145D3 Installation of the Emergency Float System
STC GACA - Saudi Arabia AW/22/7945 EC145 (BK117D3)
STC CAA - Oman DGCAR/H145-STC/4/3/33363/22 EC145 (BK117D3) Release Oman STC for H145 D-3 EFS with Ditching Certification DGCAR/H145-STC/4/3/33363/22
STC CAA - UK UK.STC.00282 EC145 (BK117D3)/H145D3 Installation of the Emergency Float System BK-117 D3

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

60 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
