Description

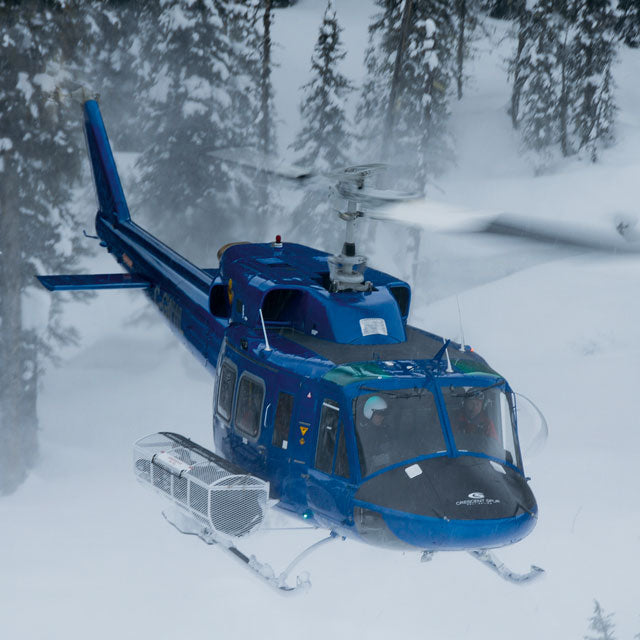

The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system.
*Mounts to existing hardpoints at STA 84.29/129.00/155.06. Conversion kits available for additional basket volume or lower volume flat lid option (see DSI 9505 or DSI 9268). VFR ops only. Baskets can't be installed on both sides simultaneously. Not compatible with floats. Not compatible with aircraft equipped with 212-030-629-101/-102 Deflector Assy on sliding doors. Price is per side.
Key Features
- Self-locking handle
- Includes prop arm
- Durable scratch resistant finish
- Easy bolt on installation
- Heavy duty lid doubles as a step or walkway for maintenance
Key Benefits
- Corrosion-resistant stainless steel construction
- No VNE restriction
- Installs using existing aircraft hard points
- Optional integrated Wrap-Around Heli-Access-Steps™ available for standard and low profile baskets
- Optional Quick Release Retrofit Kit
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.01242 | 205A/205A1/205B/212/214B/214B1/412/412EP | Heli-Utility-Basket™ |
| STC | TCCA - Canada | SH96-120 | 205A/205A1/205B/212/214B/214B1/412/412CF/412EP | Heli-Utility-Basket™ |
| STC | FAA - USA | SR00696NY | 205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP | Heli-Utility-Basket™ |
