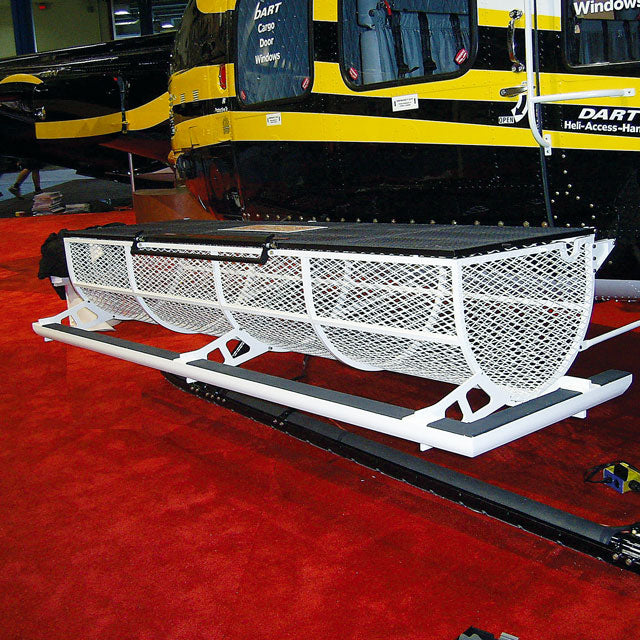

Bell Medium Heli-Utility-Basket™, Low Profile - RH

Mission Equipment
Part Number: D205-541-046
Aircraft Models: Bell - 205

Price:
The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Low profile basket features a flat lid. Mounts to existing hardpoints a... Read more
The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Low profile basket features a flat lid. Mounts to existing hardpoints at STA 84.29/129.00/155.06. VFR ops only. Baskets can't be installed on both sides simultaneously. Not compatible with floats.Contact customer support if to be installed on aircraft equipped with sliding door deflector ass (P/N 212-030-629-101/-102). Price is per basket. Read less

Description

The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Low profile basket features a flat lid. Mounts to existing hardpoints at STA 84.29/129.00/155.06. VFR ops only. Baskets can't be installed on both sides simultaneously. Not compatible with floats.Contact customer support if to be installed on aircraft equipped with sliding door deflector ass (P/N 212-030-629-101/-102). Price is per basket.

Key Features

  • Self-locking handle
  • Includes prop arm
  • Easy bolt on installation
  • Durable scratch resistant finish
  • Heavy duty lid doubles as a step or walkway for maintenance

Key Benefits

  • Corrosion-resistant stainless steel construction
  • No VNE restriction
  • Installs using existing aircraft hard points
  • Optional integrated Wrap-Around Heli-Access-Steps™ available for standard and low profile baskets
  • Optional Quick Release Retrofit Kit

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01242 205A/205A1/205B/212/214B/214B1/412/412EP Heli-Utility-Basket™
STC TCCA - Canada SH96-120 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Heli-Utility-Basket™
STC FAA - USA SR00696NY 205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Heli-Utility-Basket™

OEM Cross References

N/A

External Warning

Baskets can't be installed on both sides simultaneously. It is acceptable to install the basket without the strut at STA 129 but this limits to 220 lbs and D205-541-047/-048 Step cannot be used in flight.

Prerequisite

N/A

Compatible With

Compatibility with D412-694-* Spacedoors not confirmed.

Not Compatible With

Passenger sliding doors 205-032-669-009 with 212-030-629-101 Deflector Assy; Floats

Flight Restrictions

Baskets can't be installed on both sides simultaneously. VFR only. Doors must be closed except when hovering.

Installation Time

2 hrs

Dimensions And Weight

  • Length: 96" / 2.4m
  • Width: 26" / 0.66m
  • Weight Display: 104.00 lbs / 47.17 kg

Load Capacity And Volume

  • Volume: 18.8 ft3 / 0.53 m3
  • Load Capacity: 300 lbs / 136.1 kg
