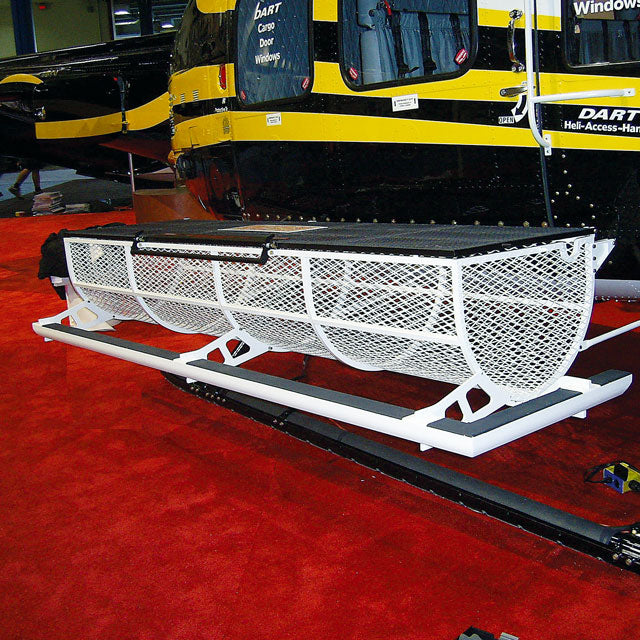

Bell Medium Heli-Utility-Basket™, Low Profile - LH
Part Number: D205-541-045
Aircraft Models: Bell - 205
In stock
The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system.
*Low profile basket features a flat lid. Mounts to existing hardpoints at STA 84.29/129.00/155.06. VFR ops only. Baskets can't be installed on both sides simultaneously. Not compatible with floats.Contact customer support if to be installed on aircraft equipped with sliding door deflector ass (P/N 212-030-629-101/-102). Price is per basket.
Couldn't load pickup availability
Key Features
Self-locking handle
Includes prop arm
Easy bolt on installation
Durable scratch resistant finish
Heavy duty lid doubles as a step or walkway for maintenance
Key Benefits
Corrosion-resistant stainless steel construction
No VNE restriction
Installs using existing aircraft hard points
Optional integrated Wrap-Around Heli-Access-Steps™ available for standard and low profile baskets
Baskets can't be installed on both sides simultaneously. It is acceptable to install the basket without the strut at STA 129 but this limits to 220 lbs and D205-541-047/-048 Step cannot be used in flight.
Prerequisite
N/A
Compatible With
Compatibility with D412-694-* Spacedoors not confirmed.
Not Compatible With
Floats
Flight Restrictions
Baskets can't be installed on both sides simultaneously. VFR only. Doors must be closed except when hovering.
