Description

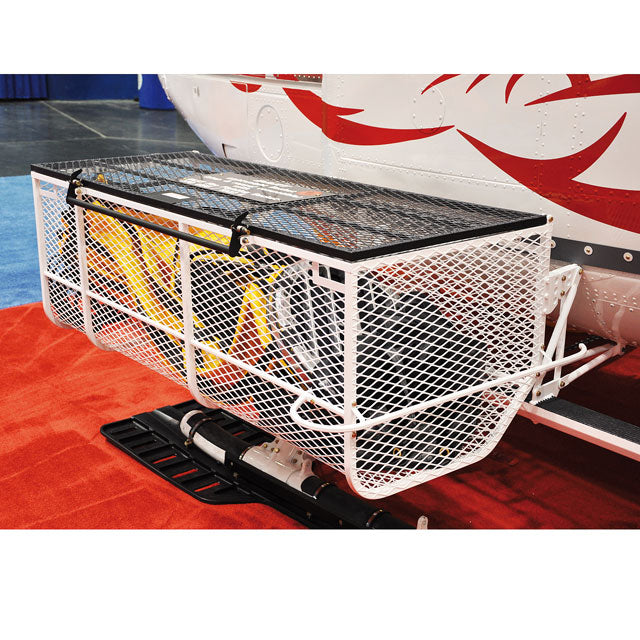

DART Aerospace's Lightweight Heli-Utility-Basket™ provides the same load capacity as the standard and low profile baskets but with a 42% reduction in weight, a more compact design and a rappel/passenger friendly installation location. The lightweight basket is ideal for operations with weight limitations and lower cargo requirements. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system.
*300 lbs/136 kg load capacity. Mounts to STA 129.00 & STA 155.06 existing hardpoints & STA 177 customer installed hardpoints. Includes rappel deflector & additional hardpoints. VFR ops only. Compatible on high & extended height landing gear. Compatible with Heli-Access-Steps™. Not compatible with low gear. Not compatible with floats
Key Features
- Installs aft of cargo door
- Self-locking handle
- Gas spring assists with closing/opening and keeps lid closed/opened
- Optional prop arm included
- Durable scratch resistant finish
- Easy bolt on installation
- Heavy duty lid doubles as a step or walkway for maintenance
- Includes rappel deflector
- Flat bottom design accommodates more types of cargo
- Carrying handles
Key Benefits
- 42% weight reduction compared to standard basket
- Corrosion-resistant stainless steel construction
- Approved to be flown on both sides simultaneously
- No VNE restriction
- Installs using existing aircraft hard points
- Does not impede access to the cargo doors
- Allows unobstructed passenger egress
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.01242 | 205A/205A1/205B/212/214B/214B1/412/412EP | Heli-Utility-Basket™ |
| STC | TCCA - Canada | SH96-120 | 205A/205A1/205B/212/214B/214B1/412/412CF/412EP | Heli-Utility-Basket™ |
| STC | FAA - USA | SR00696NY | 205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP | Heli-Utility-Basket™ |
